English
Grow Tent Pro Series Manual
MODEL NAME
-
VST-P224
-
VST-P276
-
VST-P336
-
VST-P426
-
VST-P448
-
VST-P558
-
VST-P848
-
VST-P105
-
VST-P888
-
VST-P108
KEY FEATURES
|
|
-
Light-Blocking & Highly Reflective Tent Coat : Professional tent coat design with 1200D Oxford Nylon exterior and highly reflective Mylar interior.
-
Ducting Opening : Multiple ducting openings with an adjustable size suitable for different sizes of ductings with no light leakage.
-
Viewing Window : A large window with optional flap cover offers a clear view of the interior of the tent.
-
Heavy-Duty Frame : Thick metal poles and connectors provide for a sturdy structure. Note : All devices must be distributed evenly on the ceilling bars.
-
Waterproof Floor Tray : The tray can hold water, soil and other debris, preventing leakage.
-
Unique Wire Opening : Double-covered wire opening for more convenient connection to the external controller.
-
Triangular Plate : Triangle stiffener increases tentstrength (Not available in VST-P224/VST-P276 dimensions).
-
Support Pole : Additional support rods for increased stability (Not available in VST-P224/VST-P276 dimensions).
PRODUCT CONTENTS
VST-P224/P276
| Image | Name | Quantity |
|---|---|---|
|
|
1 pc |
|
|
1 pc |
|
|
2 pcs |
|
|
8 pcs |
Frame Poles & Ceiling Bars
|
|
8 pcs |
|
|
4 pcs |
|
|
4 pcs |
|
|
1 pc |
|
|
2 pcs |
VST-P426
| Image | Name | Quantity |
|---|---|---|
|
|
1 pc |
|
|
1 pc |
|
|
2 pcs |
|
|
8 pcs |
Frame Poles & Ceiling Bars
|
|
4 pcs |
|
|
4 pcs |
|
|
4 pcs |
|
|
4 pcs |
|
|
1 pc |
|
|
2 pcs |
|
|
2 pcs |
|
2 pcs |
VST-P336/P448/P558
| Image | Name | Quantity |
|---|---|---|
|
|
1 pc |
|
|
1 pc |
|
|
2 pcs |
|
|
8 pcs |
Frame Poles & Ceiling Bars
|
|
8 pcs |
|
|
4 pcs |
|
|
4 pcs |
|
|
2 pcs |
|
|
2 pcs |
|
|
4 pcs |
VST-P848/P105
| Image | Name | Quantity |
|---|---|---|
|
|
1 pc |
|
|
1 pc |
|
|
4 pcs |
|
|
8 pcs |
|
|
2 pcs |
|
|
2 pcs |
Frame Poles & Ceiling Bars
|
|
13 pcs |
|
|
6 pcs |
|
|
6 pcs |
|
|
4 pcs |
|
|
4 pcs |
|
|
7 pcs |
VST-P888/P108
| Image | Name | Quantity |
|---|---|---|
|
|
1 pc |
|
|
2 pcs |
|
|
4 pcs |
|
|
8 pcs |
|
|
6 pcs |
|
|
3 pcs |
|
|
1 pc |
Frame Poles & Ceiling Bars
|
|
22 pcs |
|
|
9 pcs |
|
|
9 pcs |
|
|
8 pcs |
|
|
8 pcs |
|
|
12 pcs |
SPECIFICATIONS
| VST-P224 | VST-P276 | VST-P336 | |
|---|---|---|---|
Dimensions (LxWxH) |
24"x24"x48" 60x60x120cm |
32"x32"x63" 80x80x160cm |
36"x36"x72" 90x90x180cm |
Interior Material |
Highly Reflective Mylar |
||
Exterior Material |
2000D Oxford Fabric |
||
Seal |
SBS Double-Covered Zippers |
||
Viewing Window |
Front Window x1 |
||
Pole Diameter |
22mm |
||
Door |
Front Door x1 |
||
Ducting Opening |
4"x1(10.2cmx1) 6"x3(15.2cmx3) |
4"x1(10.2cmx1) 6"x3(15.2cmx3) 8''x1(20.3cmx3) |
4"x2(10.2cmx2) 6"x2(15.2cmx2) 8''x3(20.3cmx3) |
Air Vents |
Pre-Filter Air Vents x2 |
||
Floor Tray |
24"x24" x1 60cmx60cmx1 |
32"x32" x1 80cmx80cmx1 |
36"x36" x1 90cmx90cmx1 |
Filter Straps |
x2 |
||
Warranty |
1 Year |
||
Hanging Bar |
x3 |
x3 |
x4 |
Support Pole |
/ |
/ |
x4 |
| VST-P426 | VST-P448 | VST-P558 | |
|---|---|---|---|
Dimensions (LxWxH) |
48"x24"x72" 120x60x180cm |
48"x48"x80" 120x120x200cm |
60"x60"x80" 150x150x200cm |
Interior Material |
Highly Reflective Mylar |
||
Exterior Material |
2000D Oxford Fabric |
||
Seal |
SBS Double-Covered Zippers |
||
Viewing Window |
Front Window x1 |
||
Pole Diameter |
22mm |
||
Door |
Front Door x1 |
Front Door x1 Side Door x2 |
|
Ducting Opening |
4"x2(10.2cmx2) 6"x4(15.2cmx4) 8''x1(20.3cmx1) |
4"x2(10.2cmx2) 8"x5(20.3cmx5) |
4"x2(10.2cmx2) 8"x4(20.3cmx4) 10''x1(25.4cmx3) |
Air Vents |
Pre-Filter Air Vents x2 |
||
Floor Tray |
48"x24" x1 120x60cmx1 |
48"x48" x1 120x120x1cm |
60"x60" x1 150x150cmx1 |
Filter Straps |
x2 |
||
Warranty |
1 Year |
||
Hanging Bar |
x3 |
x4 |
x4 |
Support Pole |
x4 |
||
| VST-P848 | VST-P105 | VST-P888 | VST-P108 | |
|---|---|---|---|---|
Dimensions (LxWxH) |
96"x48"x80" 240x120x200cm |
120"x60"x80" 300x150x200cm |
96"x96"x80" 240x240x200cm |
120"x120"x80" 300x300x200cm |
Interior Material |
Highly Reflective Mylar |
|||
Exterior Material |
2000D Oxford Fabric |
|||
Seal |
SBS Double-Covered Zippers |
|||
Viewing Window |
Front Window x2 |
|||
Pole Diameter |
22mm |
|||
Door |
Front Door x2 Back Door x2 |
|||
Ducting Opening |
4"x2(10.2cmx2) 8"x4(20.3cmx4) 10''x2(25.4cmx2) |
4"x2(10.2cmx2) 8"x4(20.3cmx4) 10''x2(25.4cmx2) |
4"x4(10.2cmx4) 10''x8(25.4cmx8) |
4"x4(10.2cmx4) 10''x8(25.4cmx8) |
Air Vents |
Pre-Filter Air Vents x4 |
Pre-Filter Air Vents x6 |
||
Floor Tray |
96"x48"x1 240x120cmx1 |
120"x60"x1 300x150cmx1 |
96"x48"x2 240x240cmx2 |
120"x60"x2 300x150cmx2 |
Filter Straps |
x4 |
|||
Warranty |
1 Year |
|||
Hanging Bar |
x8 |
x16 |
||
Support Pole |
x7 |
x12 |
||
INSTALLATION
VST-P224/P276/P336/P448/P558
STEP 1

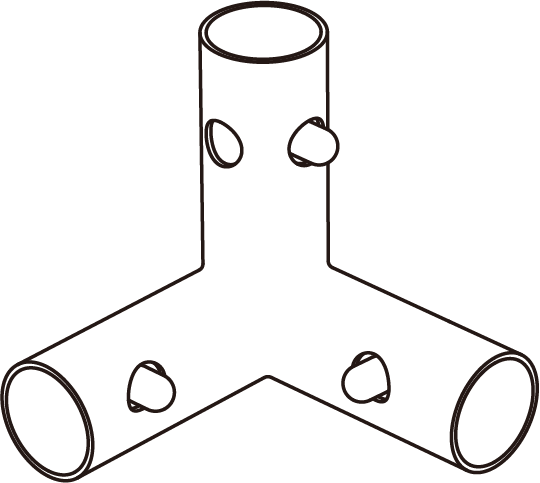

Connect four (A) Poles to four Corner Supports (4) to form the base frame of the tent.
STEP 2
Connect four (B) Poles to the Corner Supports (4) of the tent base.
STEP 3
Connect four ( C ) Poles to the ( B ) Poles.

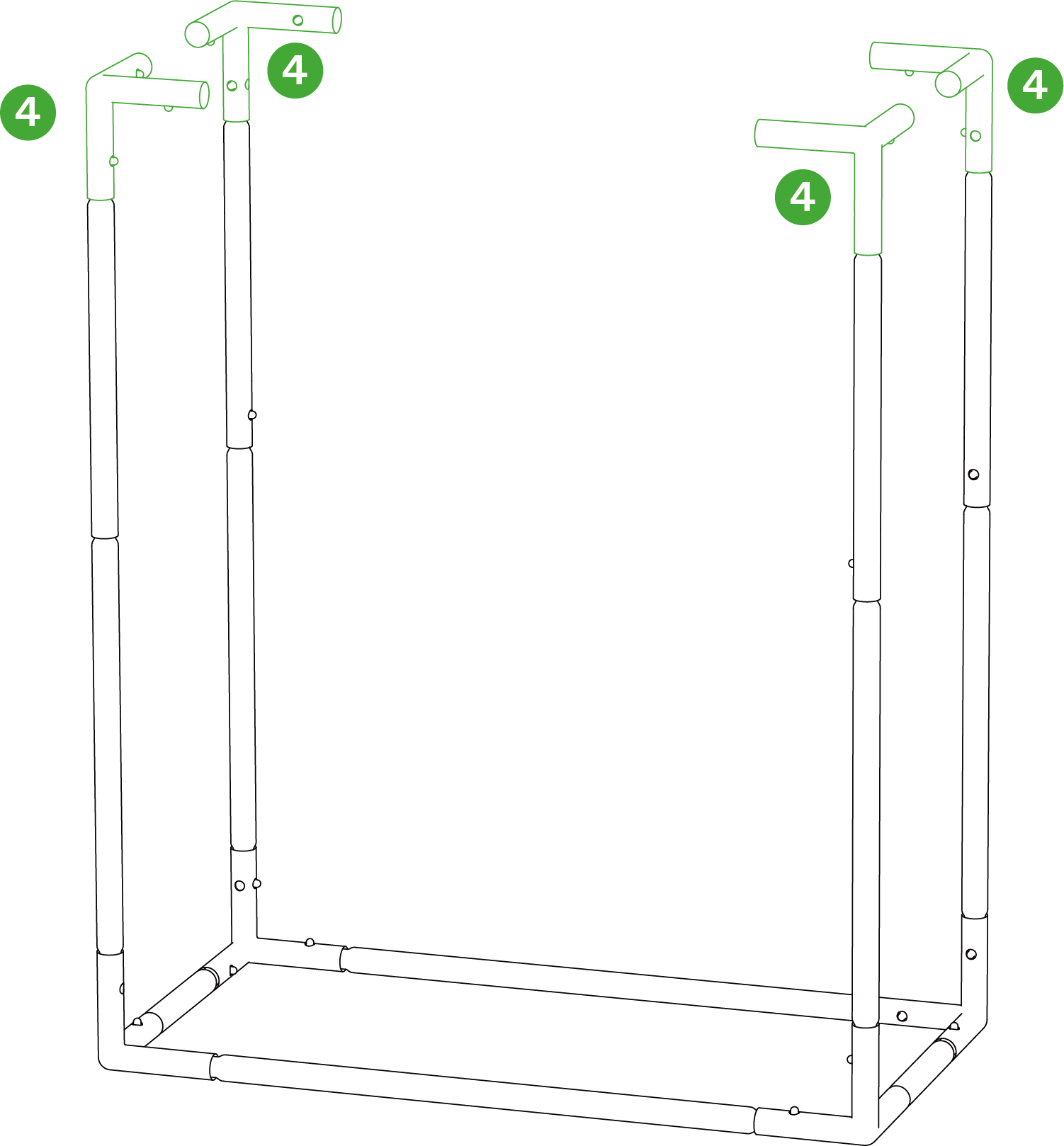

STEP 4
Mount the other four Corner Supports (4) to the ( C ) Poles as shown.
STEP 5
Connect the other four (A) Poles to the Corner Supports (4) to form the top frame of the tent.
STEP 6
Unzip and unfold the Tent Coat. (1) and place the frame base in the bottom section of the Tent Coat.
STEP 7
Pull up the tent roof and cover the top of the frame.
STEP 8
Place the Ceiling Bars (E, F) on the top frame for hanging devices like lights and ventilation. For the VST-P336/P448/P558, use two (F) Ceiling Bars and two (E) Ceiling Bars.
STEP 9
Place the Floor Tray (2) into the tent.
STEP 10
Pull the zippers to close the tent walls and door. Make sure the tent coat fits the frame at the corners. The VST-P448/P558 has additional side doors.
|
|
STEP 11
Install horizontal Support Rods (G) in accordance with your specific needs.
Note: Product 224/276 does not include these Support Rods (G) .
VST-P426
STEP 1
Connect two (A) Poles and two (D) Poles to four Corner Supports (4) to form the base frame of the tent.
STEP 2
Connect four (B) Poles to the Corner Supports (4) of the tent base.
STEP 3
Connect four ( C ) Poles to the (B) Poles .
STEP 4
Attach the other four Corner Supports (4) to the ( C ) Poles as shown.
STEP 5
Connect two (A) Poles and two (D) Poles to the Corner Supports (4) to form the top frame of the tent.
STEP 6
Unzip and unfold the Tent Coat (1) and place the frame base in the bottom section of the Tent Coat.
STEP 7
Pull up the tent roof and cover the top of the frame.
STEP 8
Place the Ceiling Bars (E, F) on the top frame for hanging devices like lights and ventilation.
STEP 9
Place the Floor Tray (2) into the tent.
STEP 10
Pull the zippers to close the tent walls and door. Make sure the tent coat fits the frame at the corners.
STEP 11
Install horizontal Support Rods (G) in accordance with your specific needs.
VST-P848/P105
STEP 1
Connect six (A) Poles to four Corner Supports (4) and two Three-way Connectors (6) as shown to form the base frame of the tent.
STEP 2
Connect six (B) Poles to the Corner Supports (4) and Three-way Connectors (6) to the tent base.
STEP 3
Connect six ( C ) Poles to the ( B ) Poles .
STEP 4
Attach the other four Corner Supports (4) and two Four-way connectors (5) to the ( C ) Poles as shown.
STEP 5
Connect the other seven (A) Poles to the Corner Supports (4) and Four-way connectors (5) to form the top frame of the tent.
STEP 6
Unzip and unfold the Tent Coat (1) and place the frame base in the bottom section of the Tent Coat.
STEP 7
Pull the tent roof and cover over the top of the frame.
STEP 8
Place the Ceiling Bars (E, F) on the top frame as shown for hanging devices.
STEP 9
Place the Floor Tray (2) into the tent.
STEP 10
Pull the zippers to close the walls and doors of the tent. Make sure the tent coat fits the frame at the corners.
STEP 11
Install horizontal Support Rods (G) in accordance with your specific needs .
VST-P888/P108
STEP 1
Connect ten (A) Poles to four Corner Supports (4) , two Four-way Connectors (5) and three Three-way Connectors (6) as shown to form the base frame of the tent.
STEP 2
Connect nine (B) Poles to the Corner Supports (4) , Four-way Connectors (5) , and Three-way Connectors (6) to the tent base.
STEP 3
Connect nine ( C ) Poles to the ( B ) Poles .
STEP 4
Attach the other four Corner Supports (4) and four Four-way connectors (5) , and one Five-way Connector (7) as shown.
STEP 5
Connect the other twelve (A) Poles to Corner Supports (4) , Four-way Connectors (5) and Five-way Connectors (7) to form the top frame of the tent.
STEP 6
Unzip and unfold the Tent Coat (1) and place the frame base in the bottom section of the Tent Coat.
STEP 7
Pull the tent roof and cover over the top of the frame.
STEP 8
Place the Ceiling Bars (E, F) on the top frame as shown for hanging devices.
STEP 9
Place the Floor Tray (2) into the tent.
STEP 10
Pull the zippers to close the walls and doors of the tent.Ensure the tent coat fits the frame snuggly at the corners.
STEP 11
Install horizontal Support Rods (G) according to your needs.
EQUIPMENT SETUP
GROW TENT VENTILATION
The grow tent has multiple ducting openings and intake holes for ventilation.
Ducting Opening : Install the required ducting onto a suitably sized ducting opening. Utilize the cinches located on both sides of the opening to firmly secure the ducting onto the tent.
Intake Air Vent : Facilitates the influx of fresh air into the tent.
*① Intake Air Vent ② Ducting Opening
INLINE FAN APPLICATIONS
The Inline fan can be used as an exhaust fan or an or as an intake fan.
Exhaust Fan : Hung or mounted on the highest opposite corner of the Intake Fan inside your grow tent. Airflow arrow points away from your grow tent.
Intake Fan : Mounted at a bottom corner outside of your grow tent. Airflow arrow points toward your grow tent.
*① Intake Fan ② Exhaust Fan
TYPICAL SETUP
Inline Fan & Carbon Filter: Choose an appropriate inline fan suitable for your grow tent. Hang the inline fan on the ceiliing bar of the tent and connect with ductings on the air outlet side of the fan. Install a carbon filter on the air inlet side of the tent and hang with straps (provided with tent).
Grow Light : Choose an appropriate grow light for your tent. Install the grow light with rope hangers after installing the inline fan and carbon filter. Adjust the light to an appropriate height.
WARRANTY
VIVOSUN provides a one-year warranty against defects on all grow tents purchased directly from us or through our authorized dealers. This policy serves as our commitment to promptly address any manufacturing defects or premature breakage that may occur during normal use of our products.
Our warranty covers the replacement or refund of purchases that exhibit material defects within one year of the original purchase date. In such events, customers may contact us to initiate the claim process. We will need proof of purchase to verify coverage eligibility.
This policy does not extend to products that have been misused, abused, or purposefully damaged. It also does not cover normal wear and tear or cosmetic defects such as minor scratches.
Customers can rest assured knowing that our products undergo rigorous quality testing procedures. This one-year warranty reflects our confidence in the durability of our products under normal use.
