Grow Tent Standard Series Manual
MODEL NAME
-
VST-S223
-
VST-S224
-
VST-S276
-
VST-S3018
-
VST-S326
-
VST-S336
-
VST-S425
-
VST-S448
-
VST-S538
-
VST-S558
-
VST-G425
-
VST-G336
-
VST-G448
-
VST-G558

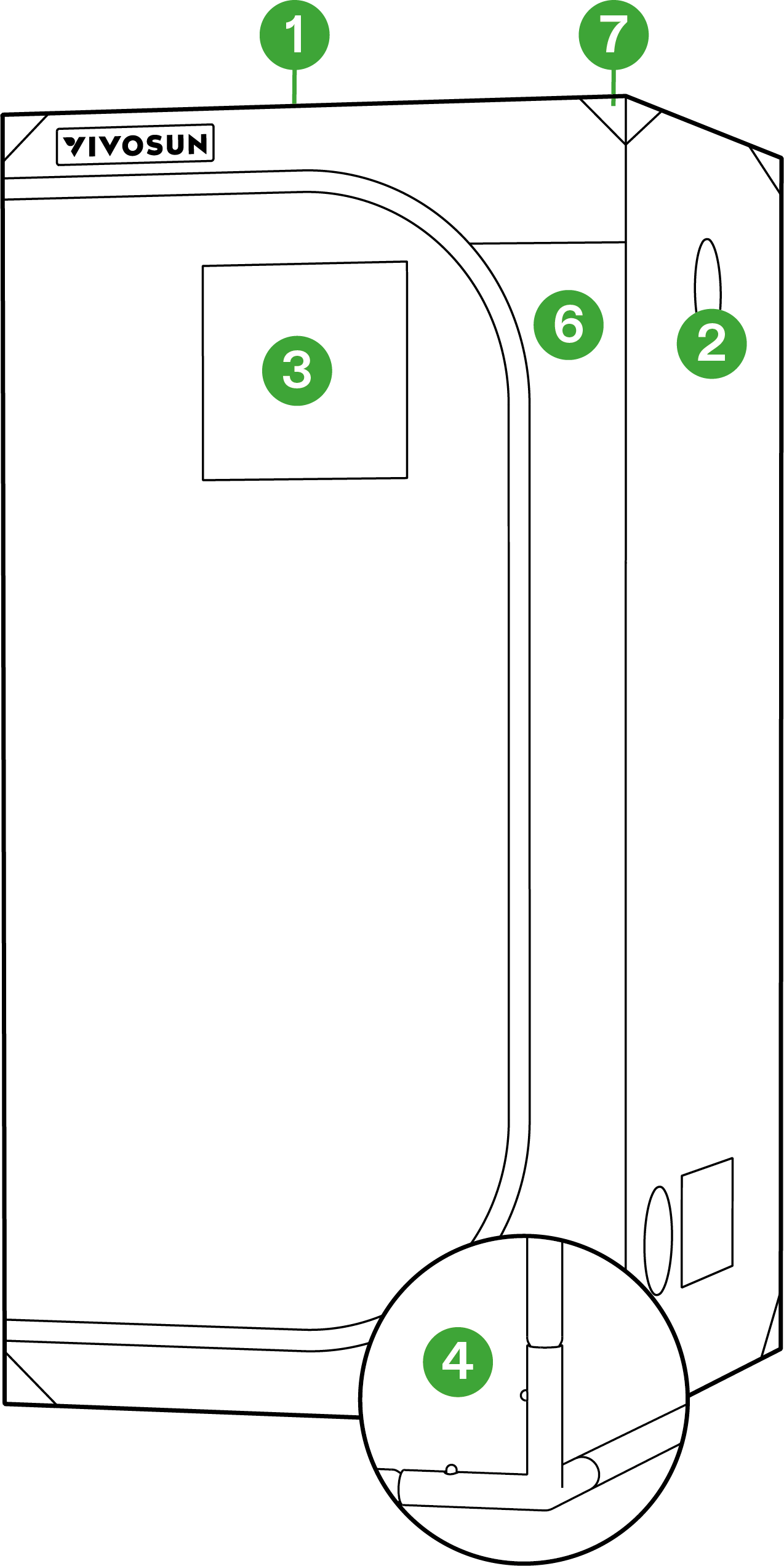

KEY FEATURES
|
|
-
Light-Blocking & Highly Reflective Tent Coat : Professional tent coat design with 600D Oxford Nylon exterior and highly reflective Mylar interior.
-
Ducting Openings : Multiple ducting openings with adjustable size suitable for different sizes of ductings with no leak of light.
-
Viewing Window : A large transparent window with an optional flap cover offers a clear view of the interior of the tent.
-
Heavy-Duty Frame : Thick metal poles and connectors provide a sturdy structure. Note : All devices must be evenly distributed on the ceilling bars.
-
Waterproof Floor Tray : The tray can hold water, soil and other debris, preventing leakage.
-
Wire Opening : Double-covered wire opening for more convenient connection to the external controller.
-
Triangular Plate : Triangle stiffener increases tent strength.

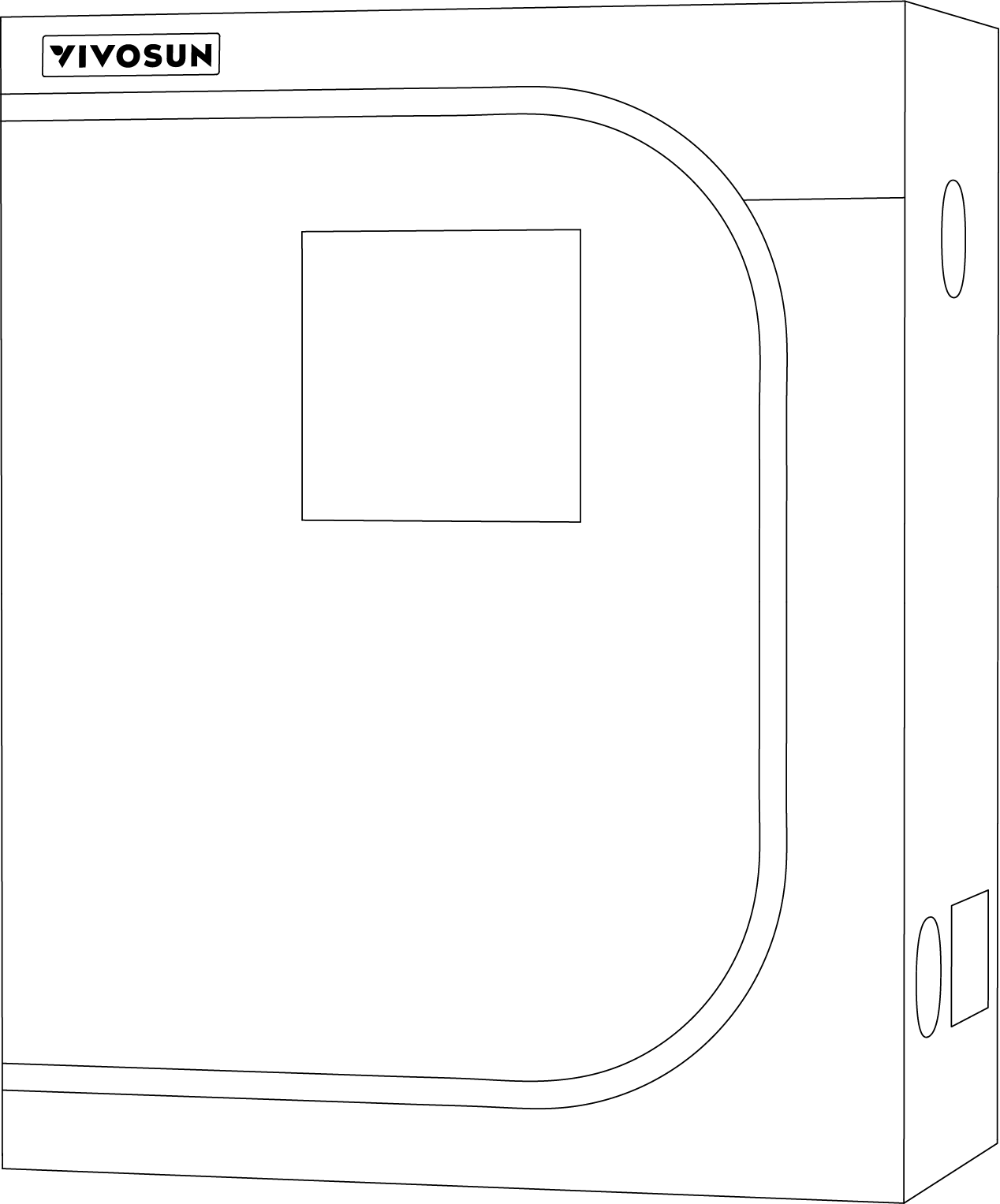

PRODUCT CONTENTS
VST-S224/S276/S336/G336
| Image | Name | Quantity |
|---|---|---|
|
|
1 pc |
|
|
1 pc |
|
|
2 pcs |
|
|
8 pcs |

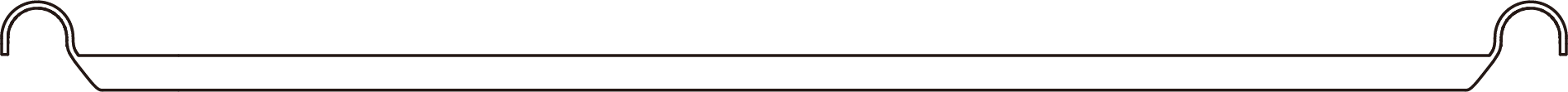

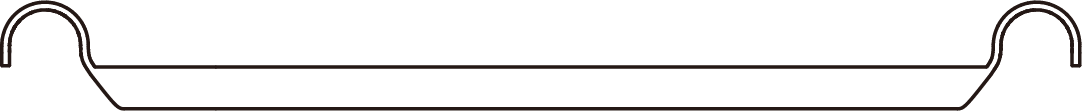

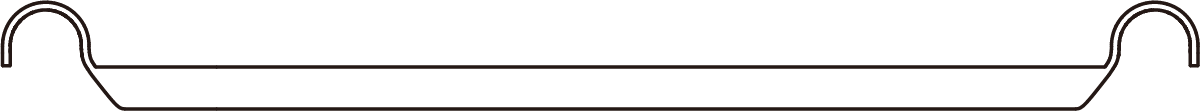

Frame Poles & Ceiling Bars
|
|
8 pcs |
|
|
4 pcs |
|
|
4 pcs |
|
|
1 pc |
|
|
1 pc |
VST-S448/S558/G448/G558
| Image | Name | Quantity |
|---|---|---|
|
|
1 pc |
|
|
1 pc |
|
|
2 pcs |
|
|
8 pcs |
Frame Poles & Ceiling Bars
|
|
8 pcs |
|
|
4 pcs |
|
|
4 pcs |
|
|
1 pc |
|
|
2 pcs |
VST-S326/S425/G425
| Image | Name | Quantity |
|---|---|---|
|
|
1 pc |
|
|
1 pc |
|
|
2 pcs |
|
|
8 pcs |
Frame Poles & Ceiling Bars
|
|
4 pcs |
|
|
4 pcs |
|
|
4 pcs |
|
|
4 pcs |
|
|
1 pc |
|
|
1 pc |
VST-S538
| Image | Name | Quantity |
|---|---|---|
|
|
1 pc |
|
|
1 pc |
|
|
2 pcs |
|
|
8 pcs |
Frame Poles & Ceiling Bars
|
|
4 pcs |
|
|
4 pcs |
|
|
4 pcs |
|
|
4 pcs |
|
|
1 pc |
|
|
2 pcs |
VST-S223
| Image | Name | Quantity |
|---|---|---|
|
|
1 pc |
|
|
1 pc |
|
|
2 pcs |
|
|
8 pcs |
Frame Poles & Ceiling Bars
|
|
8 pcs |
|
|
4 pcs |
|
|
1 pc |
|
|
1 pc |
VST-S3018
| Image | Name | Quantity |
|---|---|---|
|
|
1 pc |
|
|
1 pc |
|
|
2 pcs |
|
|
8 pcs |
Frame Poles & Ceiling Bars
|
|
8 pcs |
|
|
4 pcs |
|
|
4 pcs |
|
|
1 pc |
|
|
1 pc |
SPECIFICATIONS
| VST-S224 | VST-S276 | VST-S336 | |
|---|---|---|---|
Dimensions (LxWxH) |
24"x24"x48" 60x60x120cm |
32"x32"x63" 80x80x160cm |
36"x36"x72" 90x90x180cm |
Interior Material |
Highly-reflective Mylar Material |
||
Exterior Material |
Oxford Fabric |
||
Seal |
SBS Double-Covered Zippers |
||
Viewing Window |
Front Window x1 |
||
Pole Diameter |
16mm |
||
Door |
Front Door x1 |
||
Ducting Opening |
4"x1(10.2cmx1) 6"x3(15.2cmx3) |
4"x1(10.2cmx1) 6"x3(15.2cmx3) 8''x1(20.3cmx3) |
4"x2(10.2cmx2) 6"x2(15.2cmx2) 8''x3(20.3cmx3) |
Air Vents |
Pre-Filter Air Vents x2 |
||
Floor Tray |
24"x24" x1 60cmx60cmx1 |
32"x32" x1 80cmx80cmx1 |
36"x36" x1 90cmx90cmx1 |

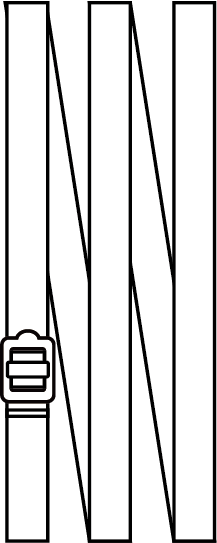

Filter Straps |
x2 |
||
Warranty |
1 Year |
||
| VST-S448 | VST-S558 | VST-S326 | |
|---|---|---|---|
Dimensions (LxWxH) |
48"x48"x80" 120x120x200cm |
60"x60"x80" 150x150x200cm |
36"x20"x63" 90x50x160cm |
Interior Material |
Highly-reflective Mylar Material |
||
Exterior Material |
Oxford Fabric |
||
Seal |
SBS Double-Covered Zippers |
||
Viewing Window |
Front Window x1 |
||
Pole Diameter |
16mm |
19mm |
16mm |
Door |
Front Door x1 Side Door x2 |
Front Door x1 |
|
Ducting Opening |
4"x2(10.2cmx2) 8"x5(20.3cmx5) |
4"x2(10.2cmx2) 8"x4(20.3cmx4) 10''x1(25.4cmx1) |
4"x1(10.2cmx1) 6"x4(20.3cmx4) |
Air Vents |
Pre-Filter Air Vents x2 |
||
Floor Tray |
48"x48" x1 120x120cmx1 |
60"x60" x1 150x150cmx1 |
36"x20" x1 90x50cmx1 |
Filter Straps |
x2 |
||
Warranty |
1 Year |
||
| VST-S425 | VST-S538 | VST-S223 | |
|---|---|---|---|
Dimensions (LxWxH) |
48"x24"x60" 120x60x150cm |
60"x32"x80" 150x80x200cm |
24"x24"x36" 60x60x90cm |
Interior Material |
Highly-reflective Mylar Material |
||
Exterior Material |
Oxford Fabric |
||
Seal |
SBS Double-Covered Zippers |
||
Viewing Window |
Front Window x1 |
||
Pole Diameter |
16mm |
||
Door |
Front Door x1 |
||
Ducting Opening |
4"x2(10.2cmx2) 6"x4(15.2cmx4) 8''x1(20.3cmx1) |
4"x2(10.2cmx2) 8"x5(20.3cmx5) |
4"x1(10.2cmx1) 6"x3(15.2cmx3) |
Air Vents |
Pre-Filter Air Vents x2 |
||
Floor Tray |
48"x24" x1 120x60cmx1 |
60"x32"x1 150x80x1cm |
24"x24"x1 60x60cmx1 |
Filter Straps |
x2 |
||
Warranty |
1 Year |
||
| VST-S3018 | VST-G425 | VST-G336 | |
|---|---|---|---|
Dimensions (LxWxH) |
30"x18"x36" 76x45x90cm |
48"x24"x60" 120x60x150cm |
36"x36"x72" 90x90x180cm |
Interior Material |
Highly-reflective Mylar Material |
||
Exterior Material |
Oxford Fabric |
||
Seal |
SBS Double-Covered Zippers |
||
Viewing Window |
Front Window x1 |
||
Pole Diameter |
16mm |
19mm |
19mm |
Door |
Front Door x1 |
||
Ducting Opening |
4"x2(10.2cmx2) 6"x3(15.2cmx3) |
4"x2(10.2cmx2) 6"x4(15.2cmx4) 8"x1(20.3cmx1) |
4"x2(10.2cmx2) 6"x2(15.2cmx2) 8"x3(20.3cmx3) |
Air Vents |
Pre-Filter Air Vents x2 |
||
Floor Tray |
30"x18"x1 76x45cmx1 |
48"x24"x1 120x60cmx1 |
36"x36"x2 90x90cmx2 |
Filter Straps |
x2 |
||
Warranty |
1 Year |
||
| VST-G448 | VST-G558 | |
|---|---|---|
Dimensions (LxWxH) |
48"x48"x80" 120x120x200cm |
60"x60"x80" 150x150x200cm |
Interior Material |
Highly-reflective Mylar Material |
|
Exterior Material |
Oxford Fabric |
|
Seal |
SBS Double-Covered Zippers |
|
Viewing Window |
Front Window x1 |
|
Pole Diameter |
22mm |
|
Door |
Front Door x1 Side Door x2 |
|
Ducting Opening |
4"x2(10.2cmx2) 8"x5(20.3cmx5) |
4"x2(10.2cmx2) 8"x4(20.3cmx4) 10"x1(25.4cmx1) |
Air Vents |
Pre-Filter Air Vents x2 |
|
Floor Tray |
48"x48"x1 120x120cmx1 |
60"x60"x1 150x150cmx1 |
INSTALLATION
VST-S224/S276/S336/S448/S558/G336/G448/G558
STEP 1

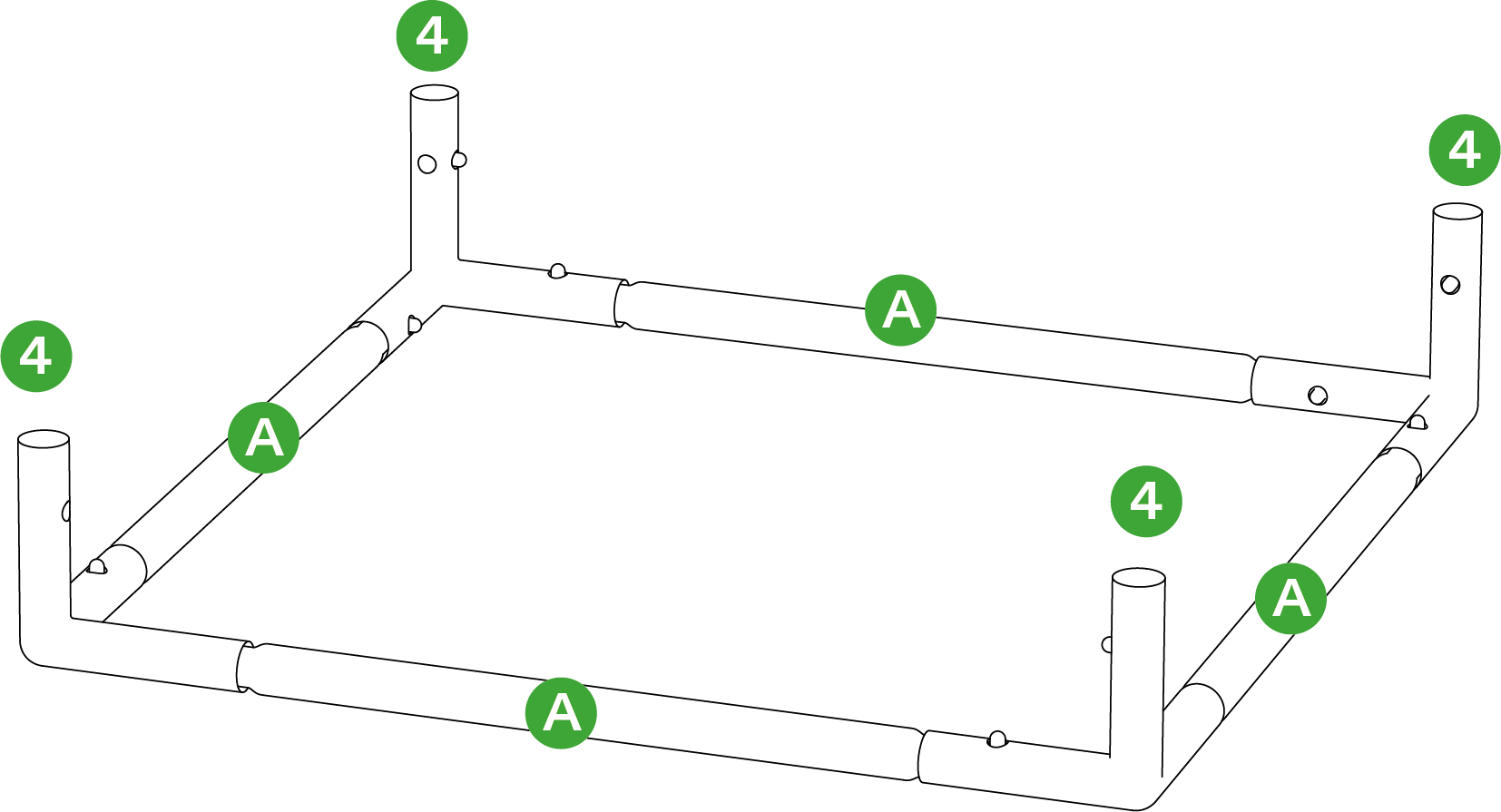

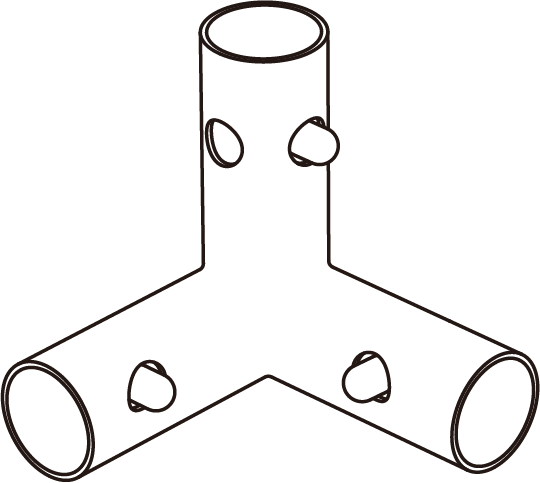

Connect four (A) Poles to four Corner Supports (4) to form the base frame of the tent.

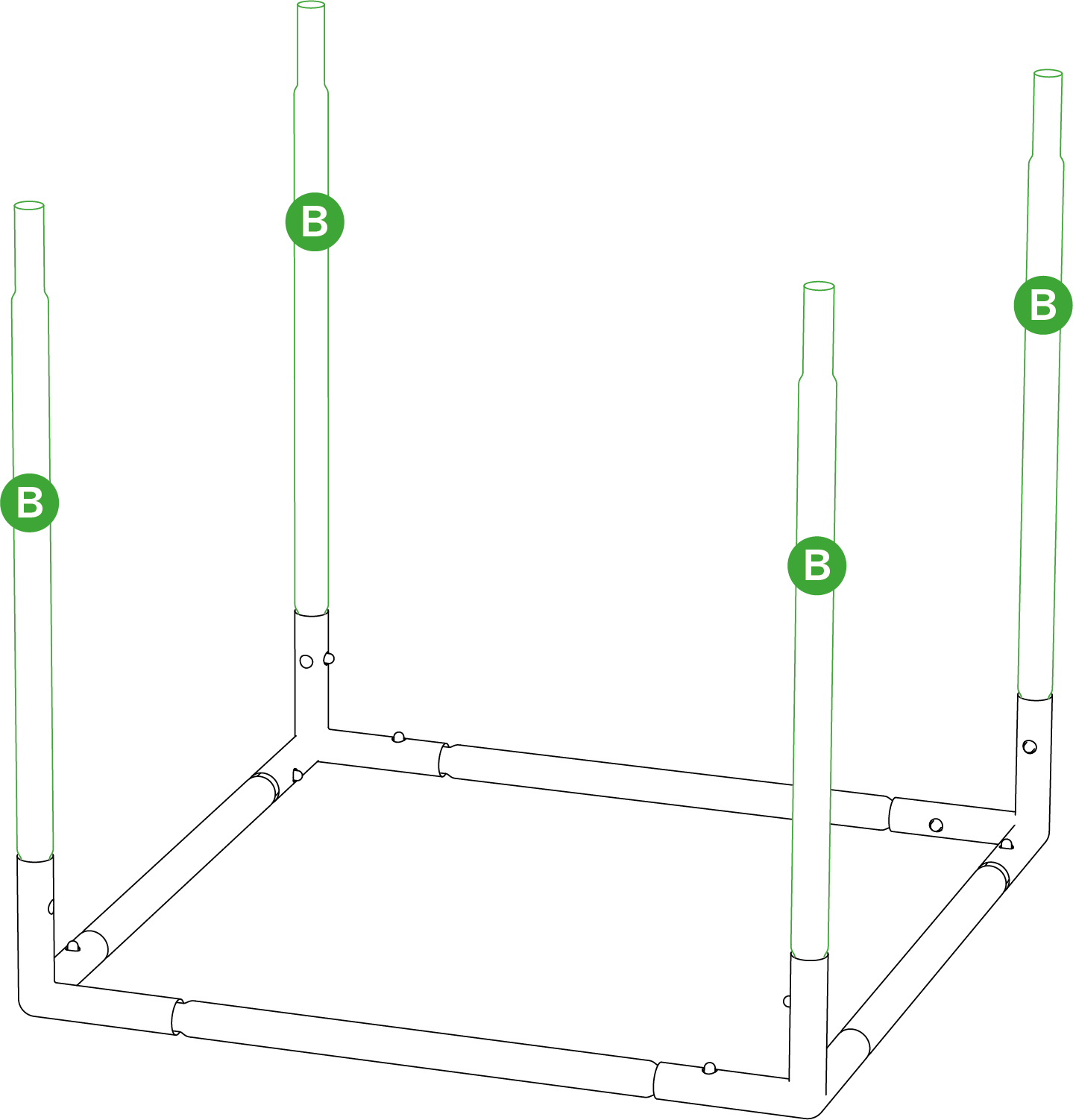

STEP 2

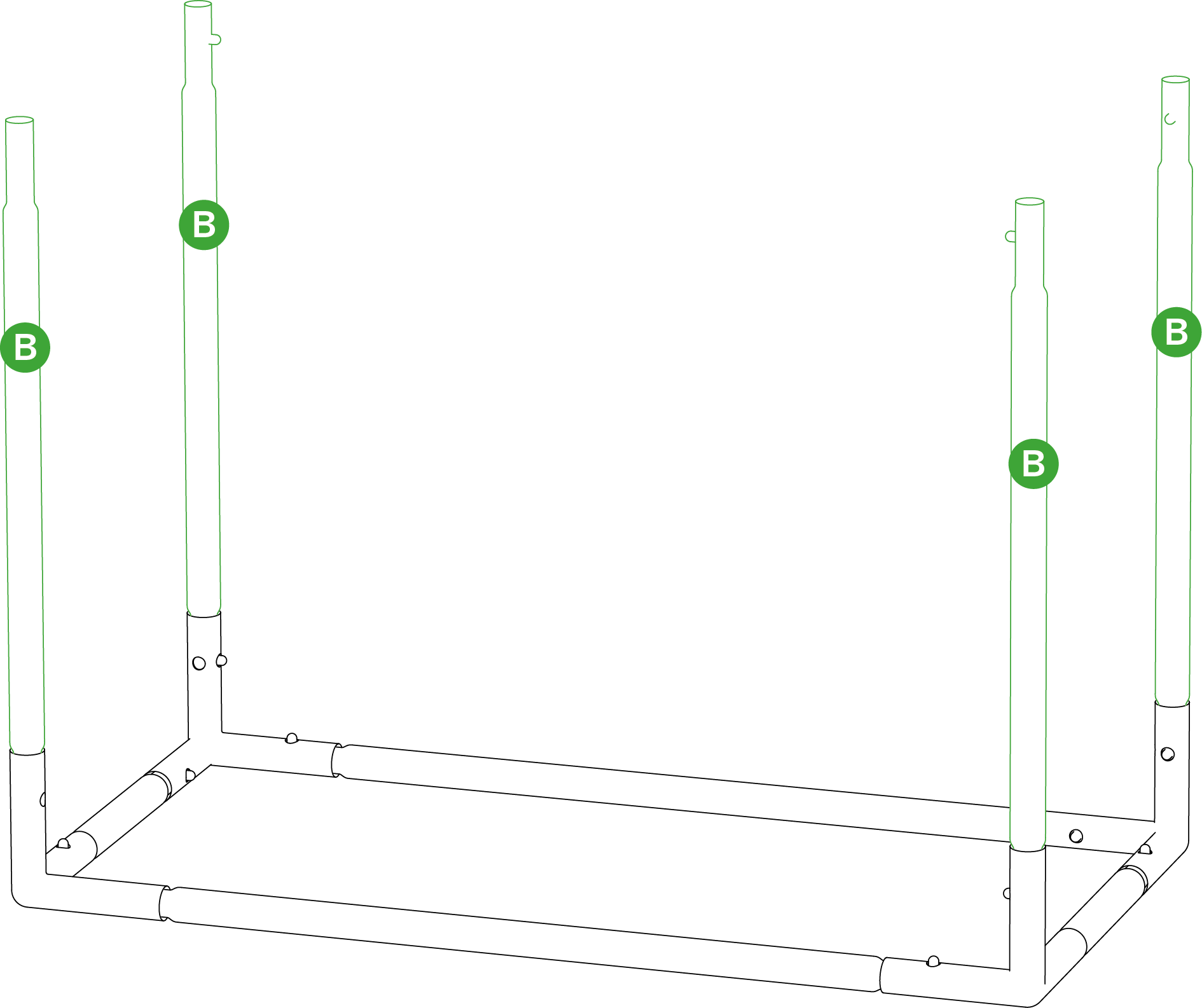

Connect four (B) Poles to the Corner Supports (4) of the tent base.

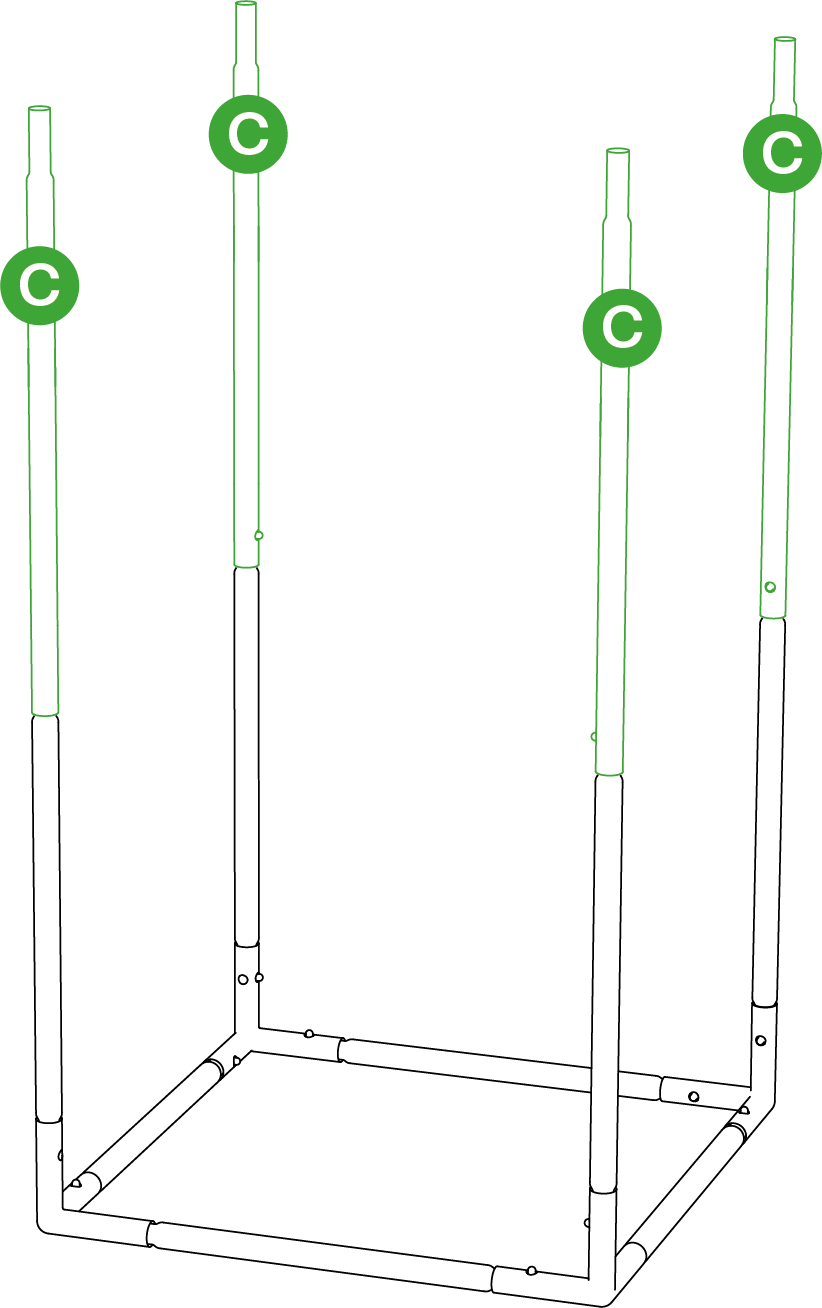

STEP 3

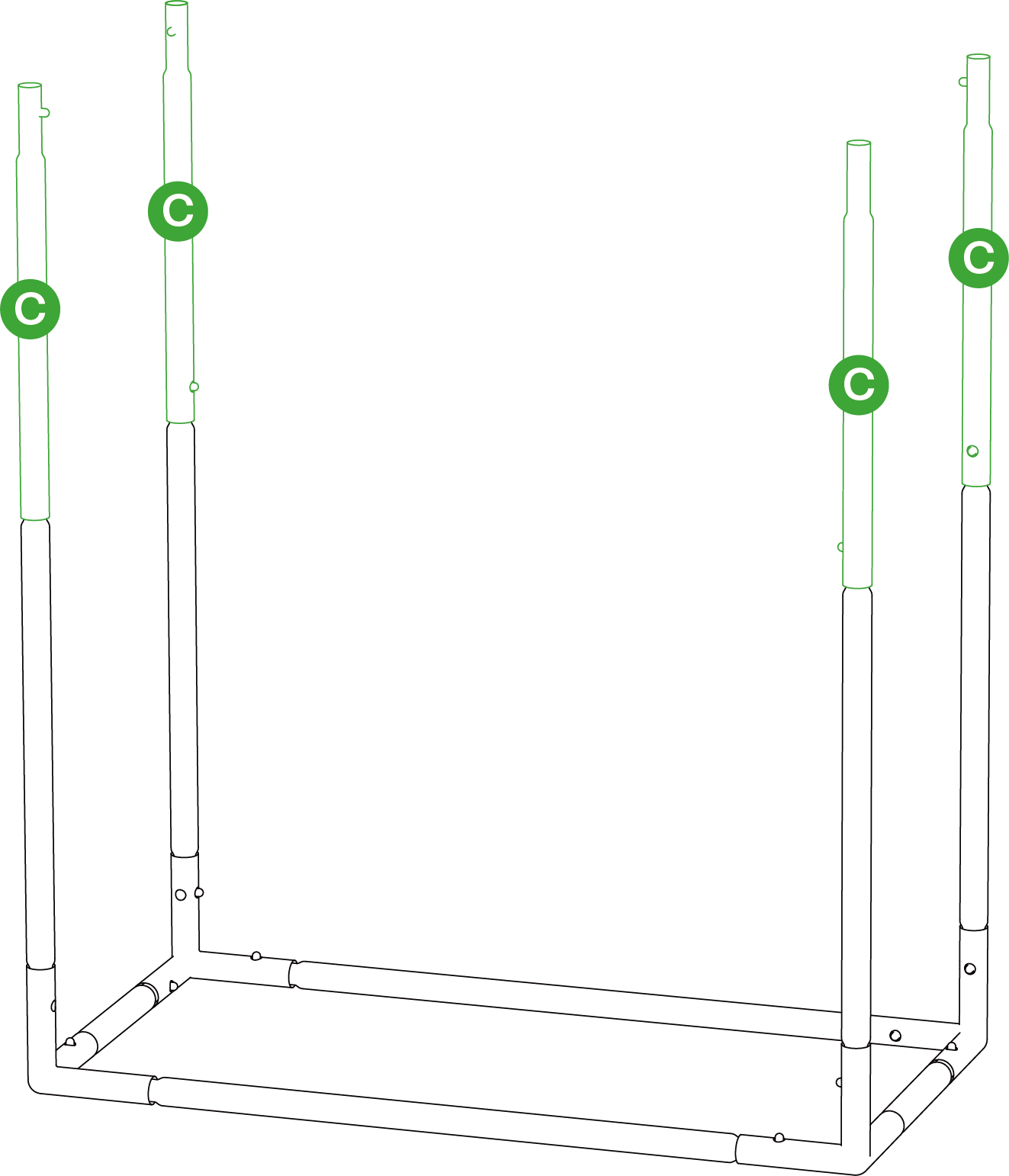

Connect four ( C ) Poles to the (B) Poles .
STEP 4

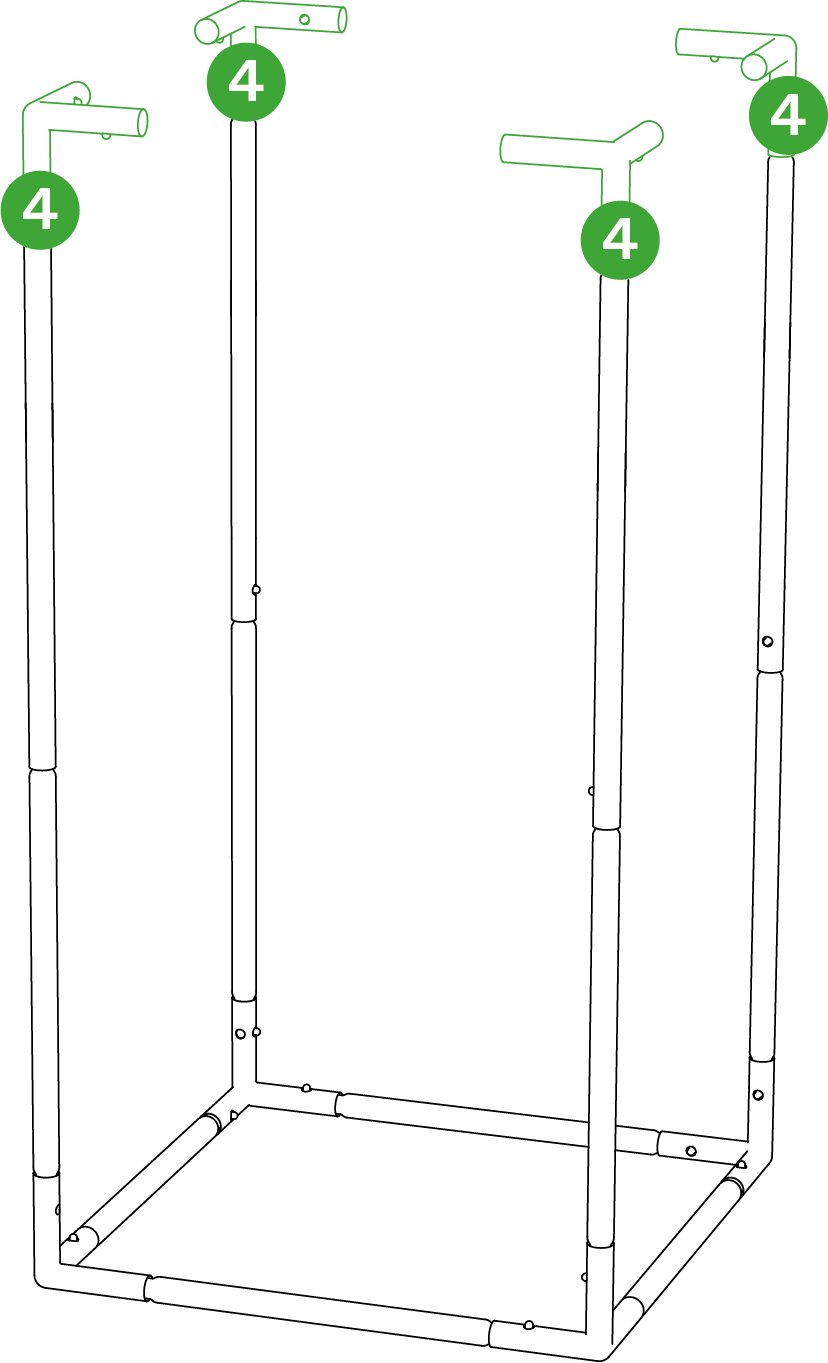

Mount the other four Corner Supports (4) to the ( C ) Poles as shown.
STEP 5

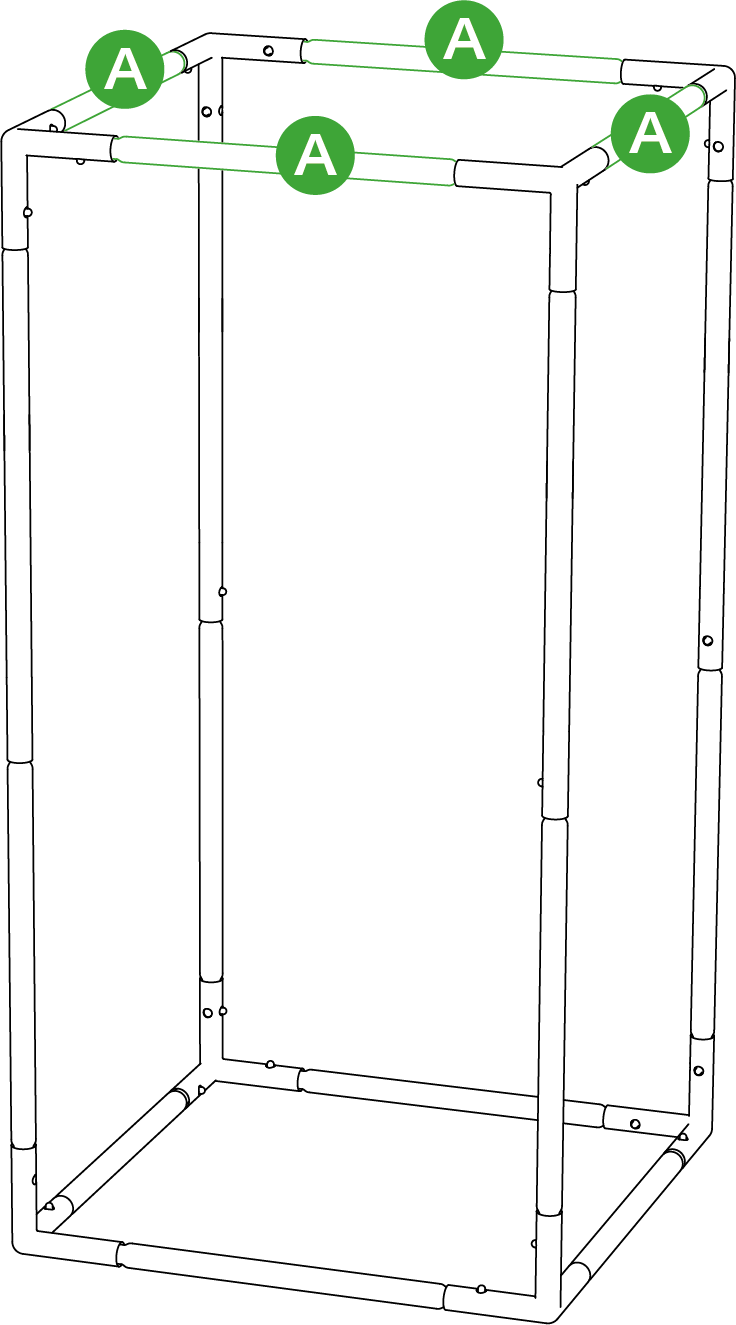

Connect the other four (A) Poles to the Corner Supports (4) to form the top frame of the tent.

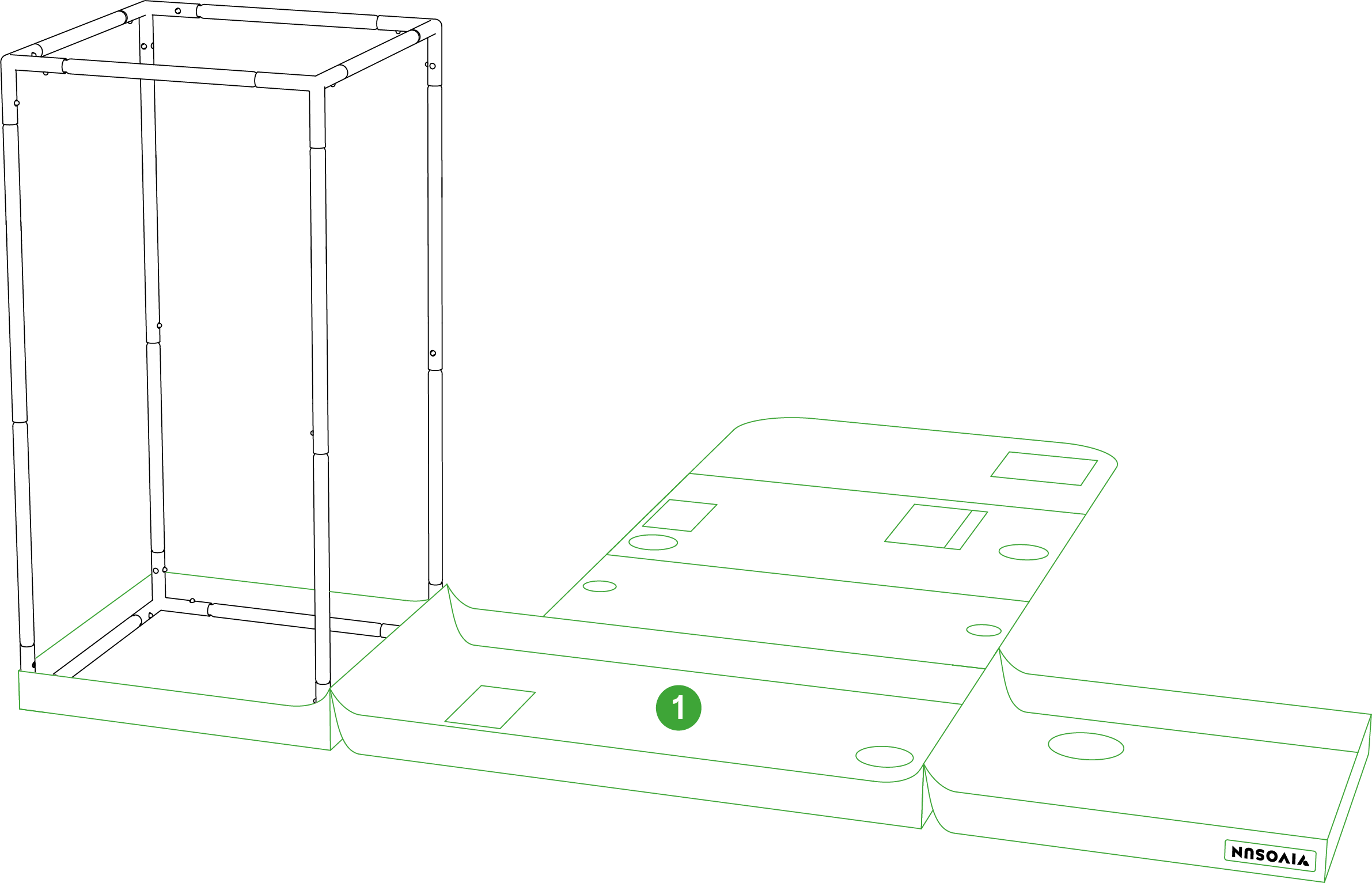

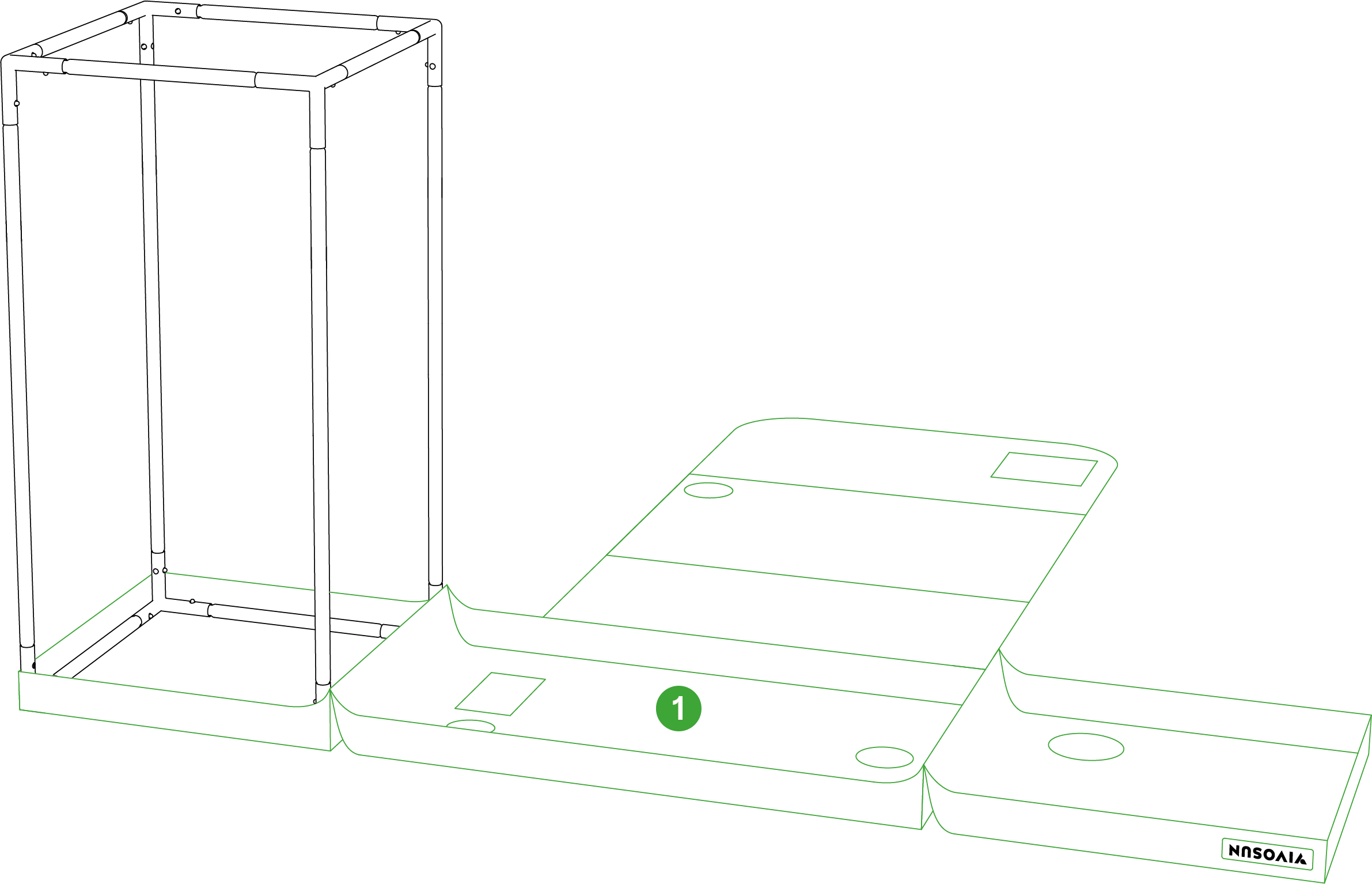

STEP 6
Unzip and unfold the Tent Coat (1) and put the base frame in the bottom of the Tent Coat .
STEP 7

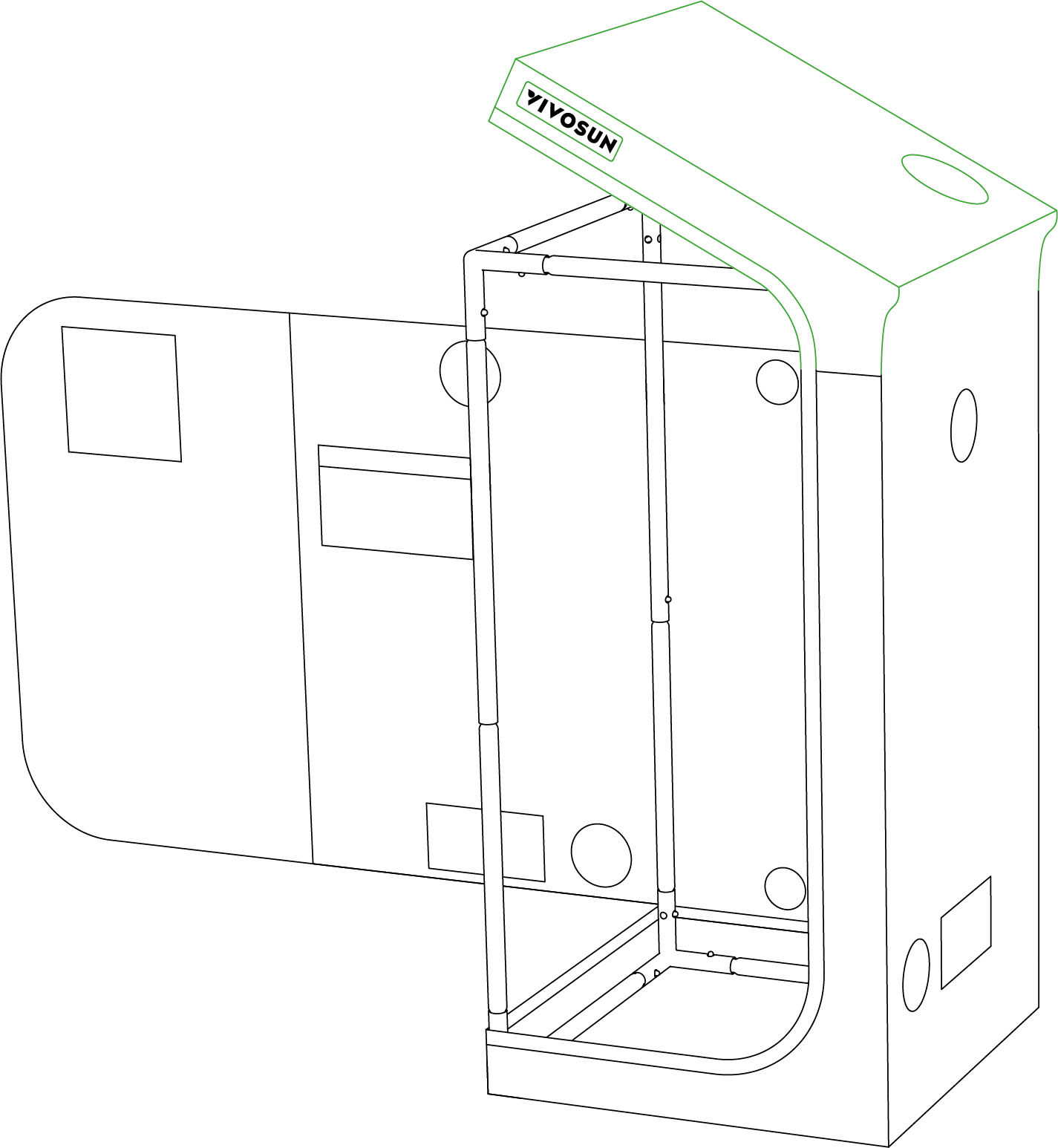

Pull up the tent roof and cover the top of the frame.

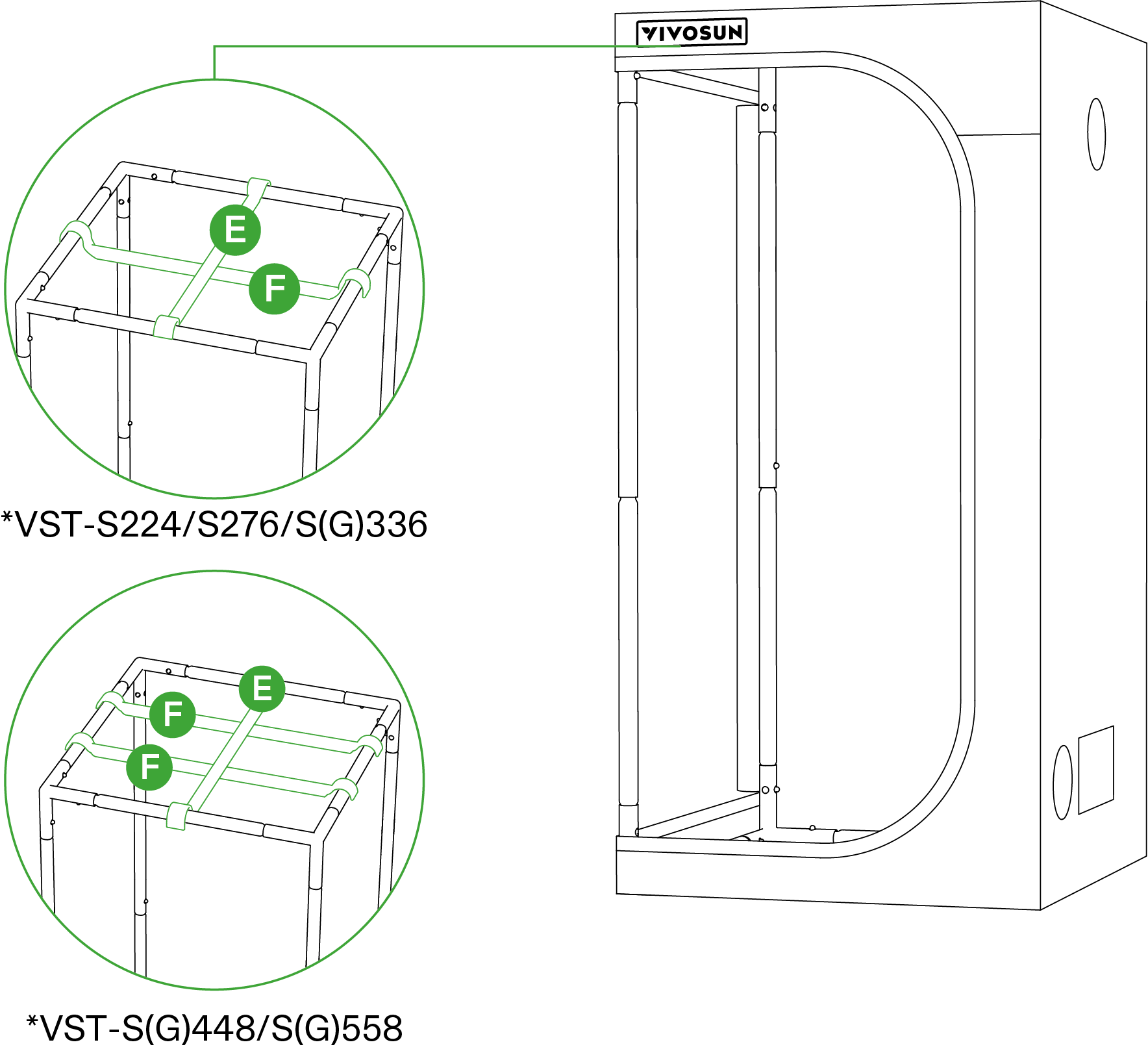

STEP 8

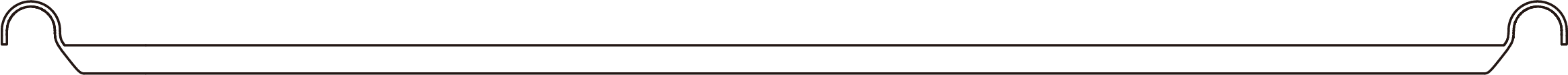

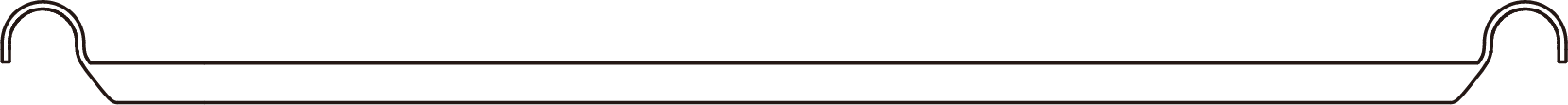

Place the Ceiling Bars (E, F) on the top frame for hanging devices like lights and ventilation. For the VST-S(G)448/S(G)558, use two (F) Ceiling Bars and one (E) Ceiling Bar .

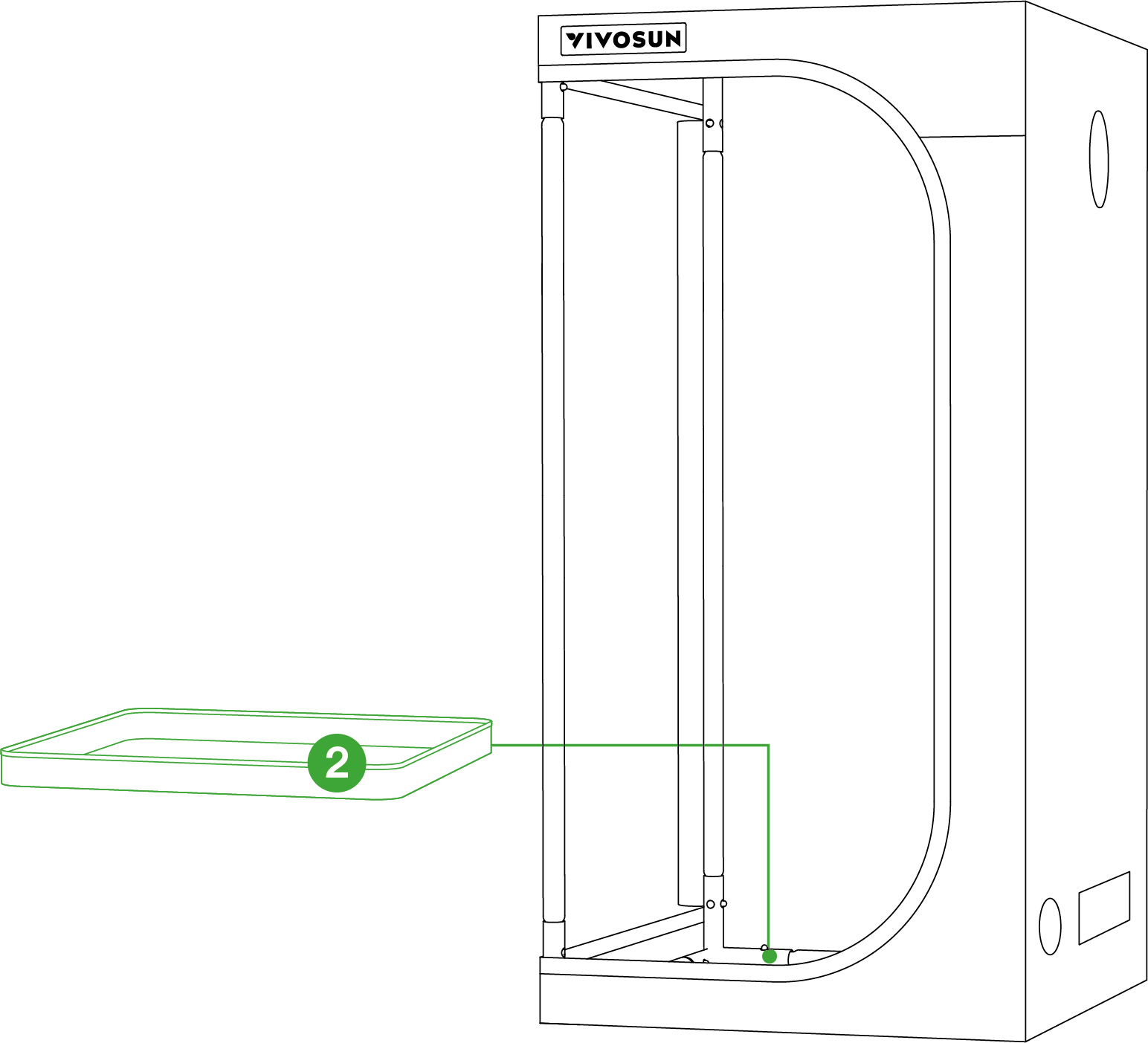

STEP 9

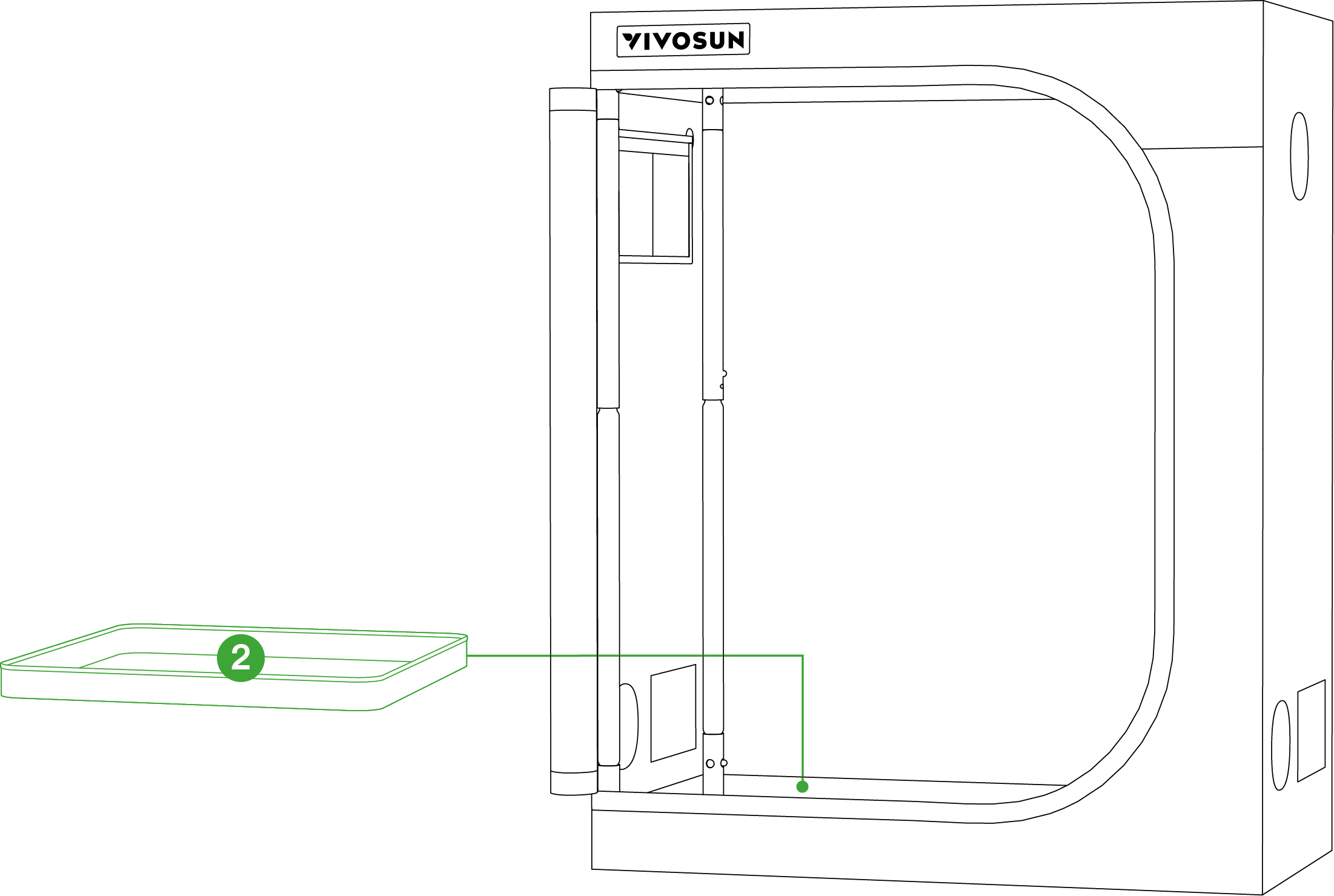

Place the Floor Tray (2) into the tent.

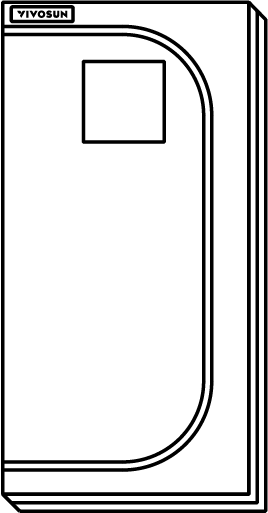

STEP 10
Pull the zippers to close the tent walls and door. Make sure the tent coat fits the frame at the corners. The VST-S(G)448/S(G)558 has additional side doors.
VST-S326/S425/S538/G425
STEP 1

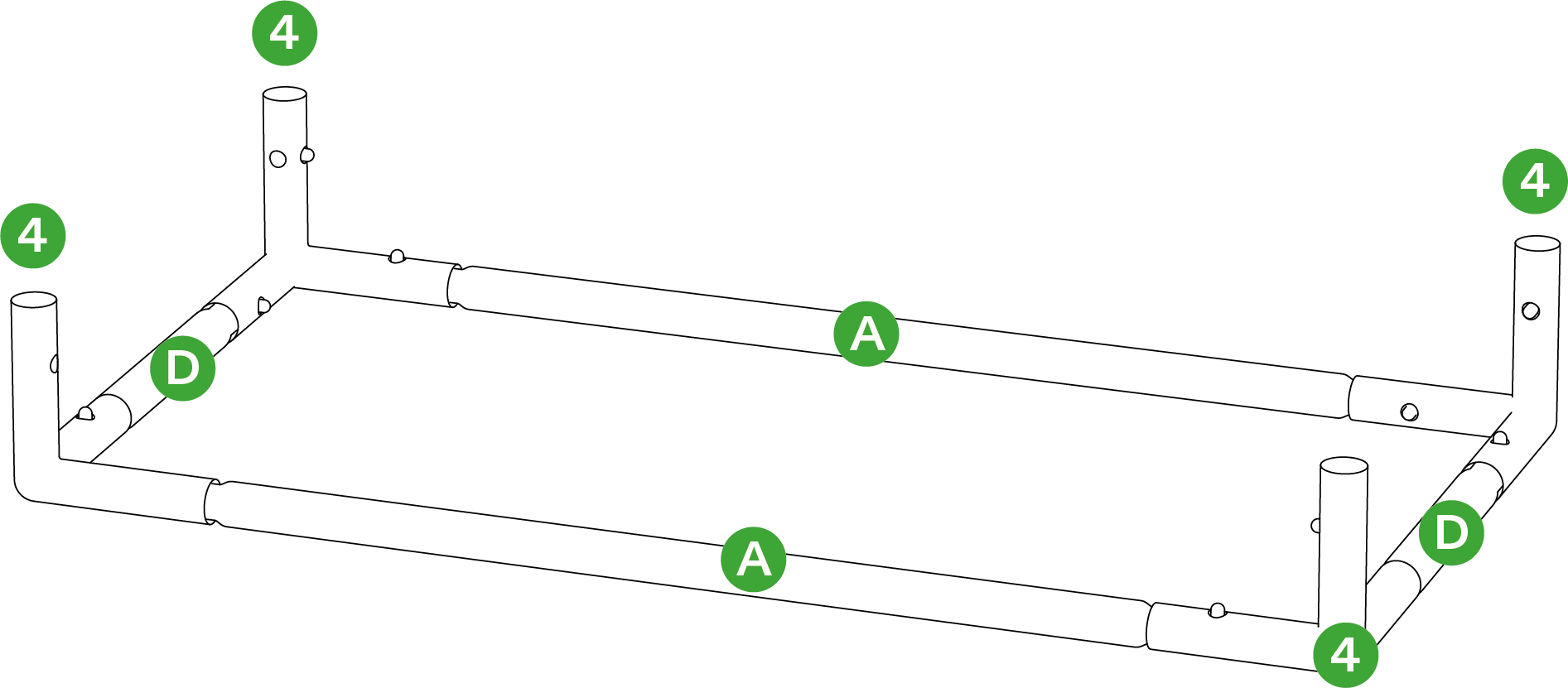

Connect two (A) Poles and two (D) Poles to four Corner Supports (4) to form the base frame of the tent.
STEP 2
Connect four (B) Poles to the Corner Supports (4) of the tent base.
STEP 3
Connect four ( C ) Poles to the (B) Poles .

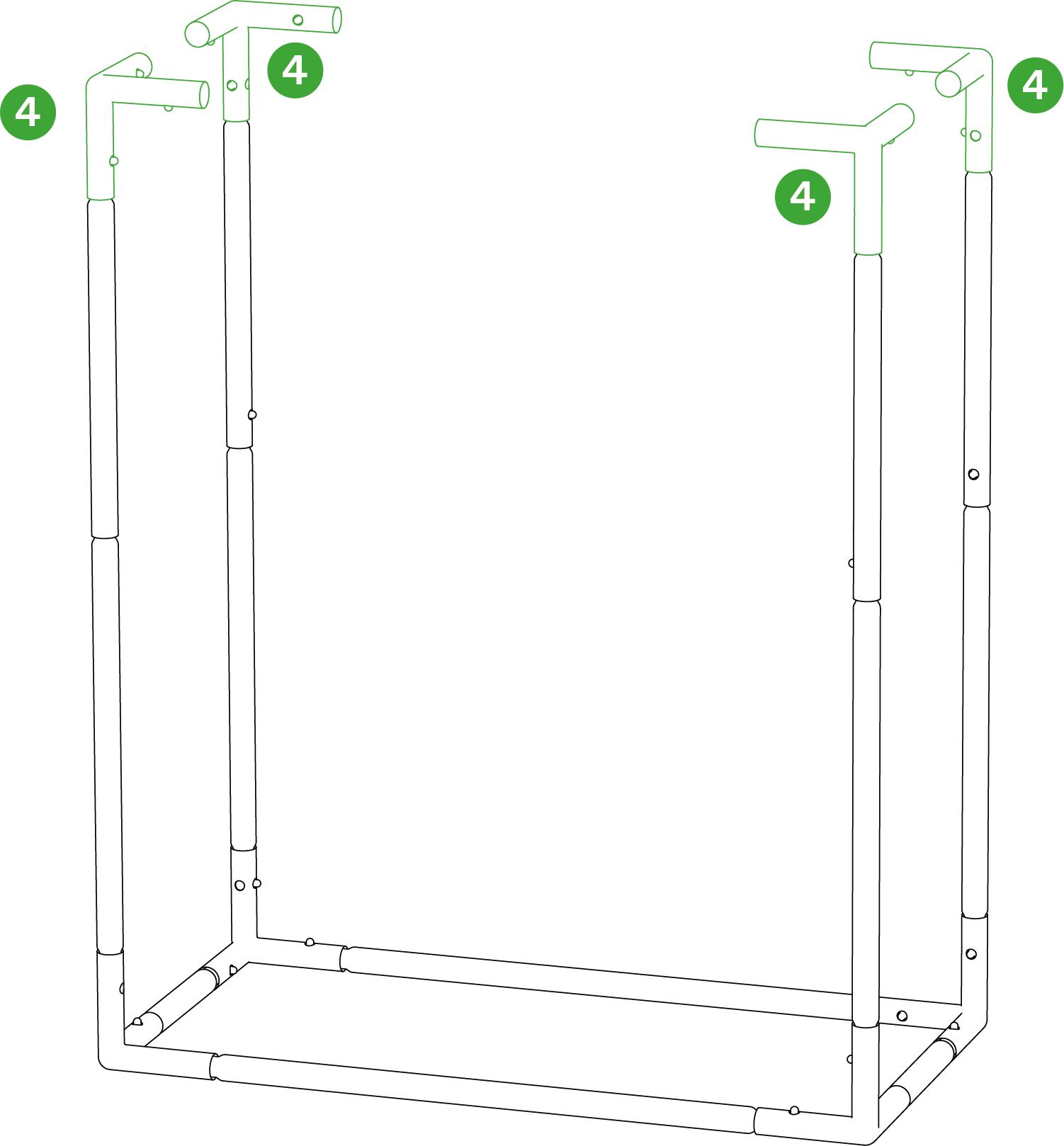

STEP 4
Attach the other four Corner Supports (4) to the ( C ) Poles as shown.

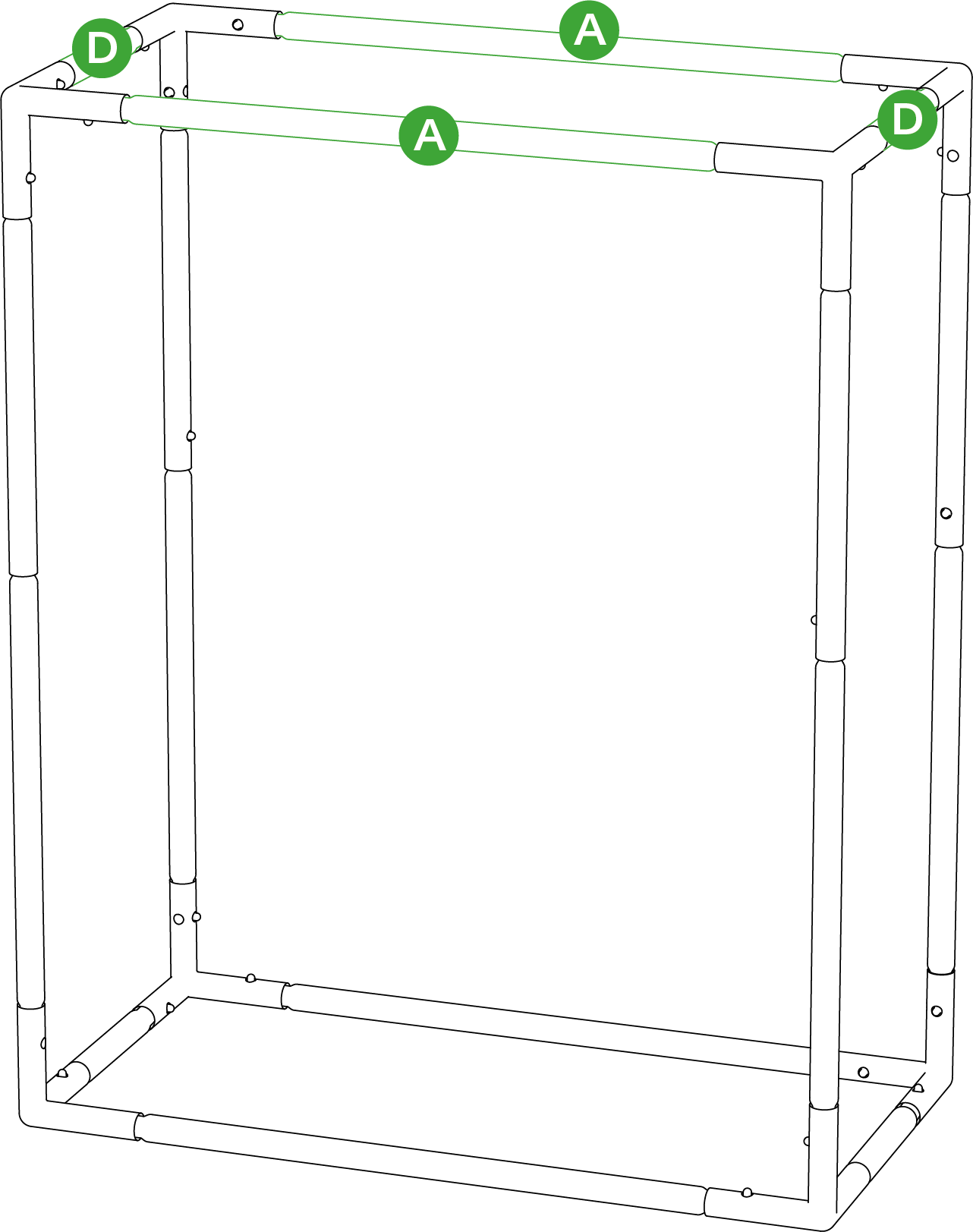

STEP 5
Connect two (A) Poles and two (D) Poles to the Corner Supports (4) to form the top frame of the tent.

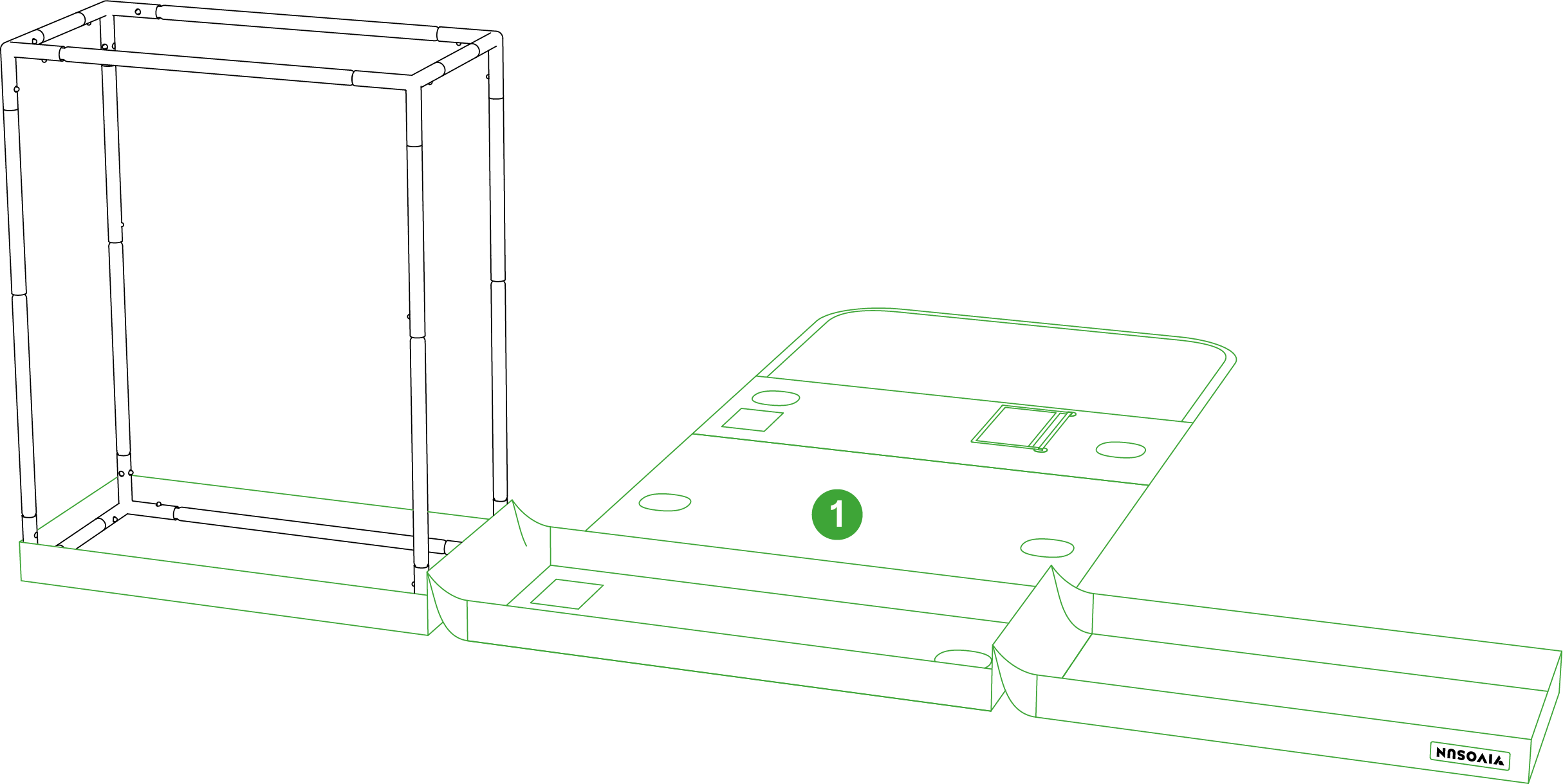

STEP 6
Unzip and unfold the Tent Coat (1) and put the base frame in the bottom of the Tent Coat .

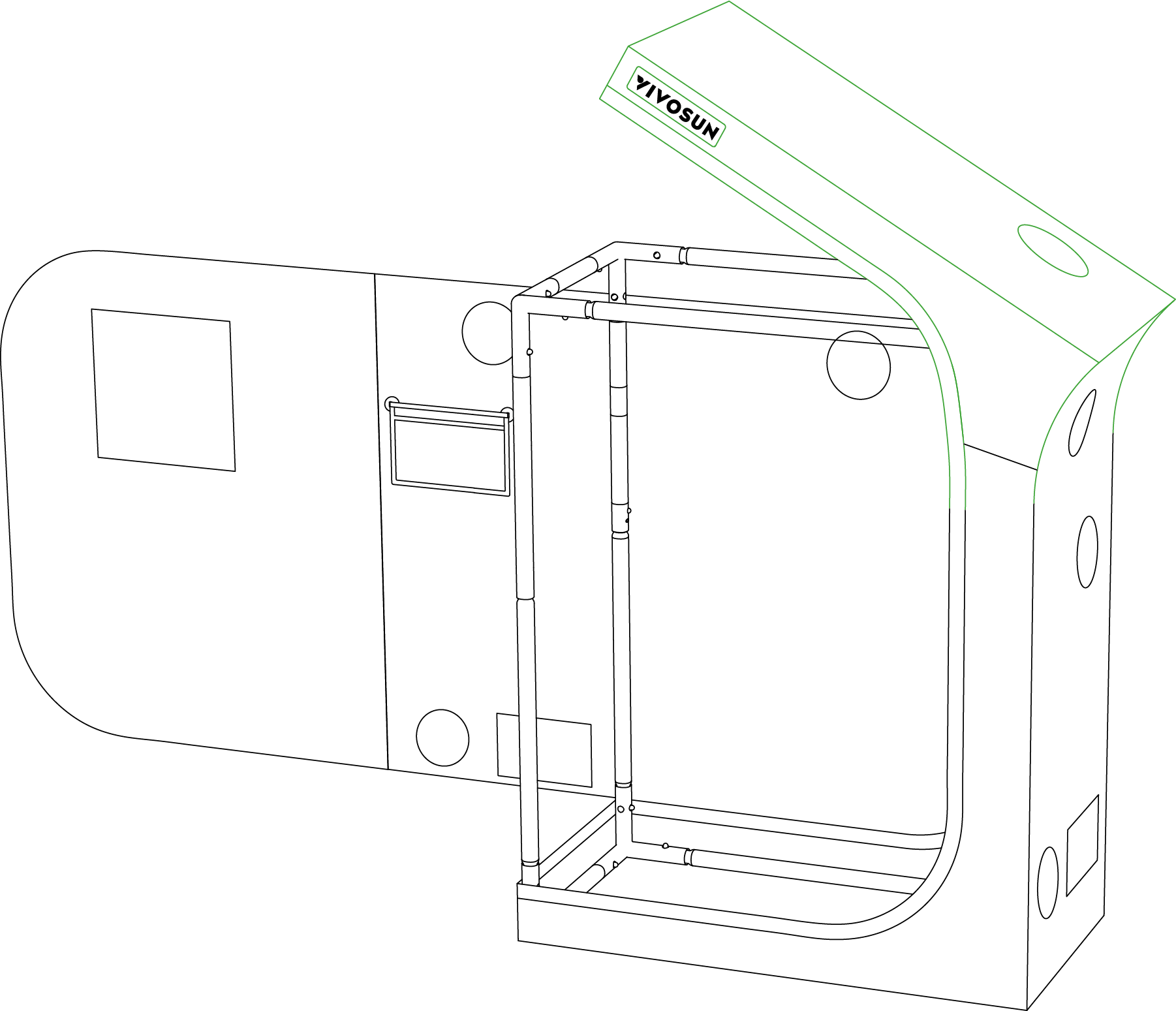

STEP 7
Pull up the tent roof and cover the top of the frame.

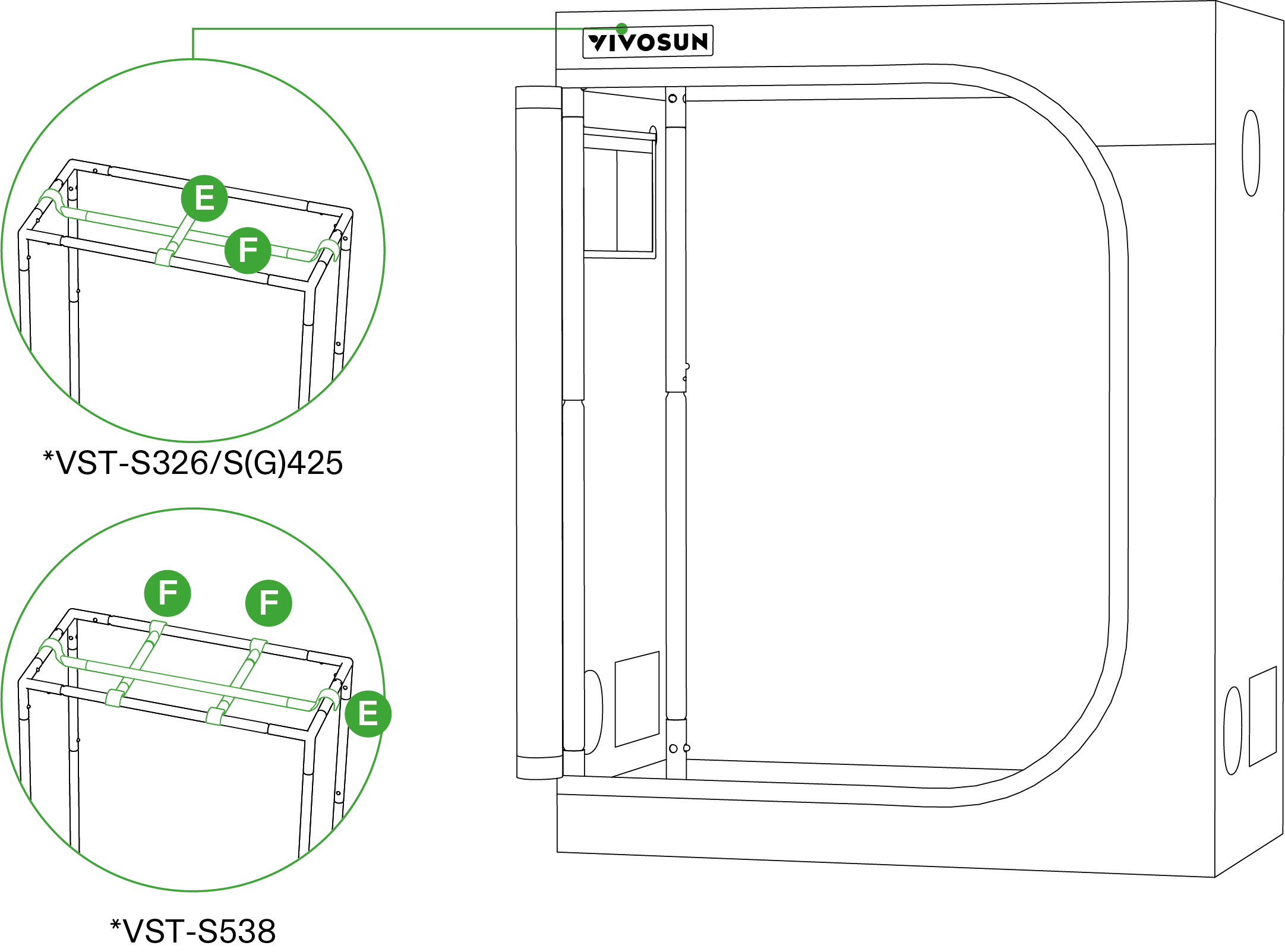

STEP 8
Place the Ceiling Bars (E, F) on the top frame for hanging devices like lights and ventilation. For the VST-S538, use two (F) Ceiling Bars and one (E) Ceiling Bar .
STEP 9
Place the Floor Tray (2) into the tent.
STEP 10
Pull the zippers to close the tent walls and door. Make sure the tent coat fits the frame at the corners.
VST-S223/S3018
STEP 1

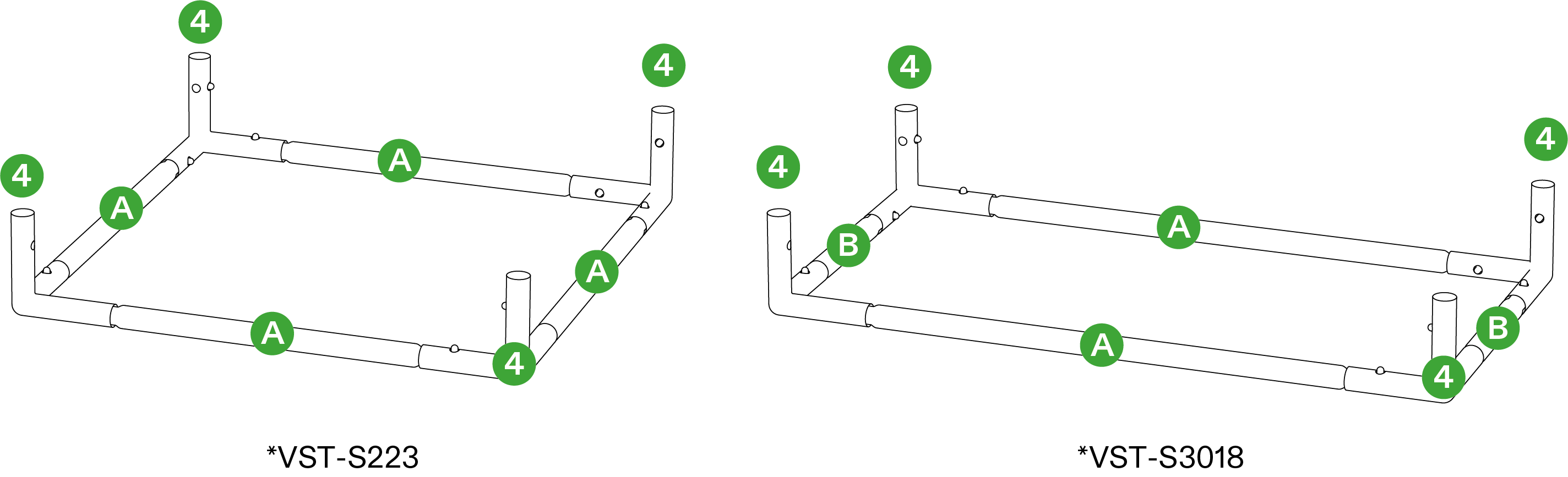

Connect four (A) Poles to four Corner Supports (4) to form the base frame of the tent. For the VST-S3018, connect two (A) Poles and two (B) Poles to four Corner Supports (4) .

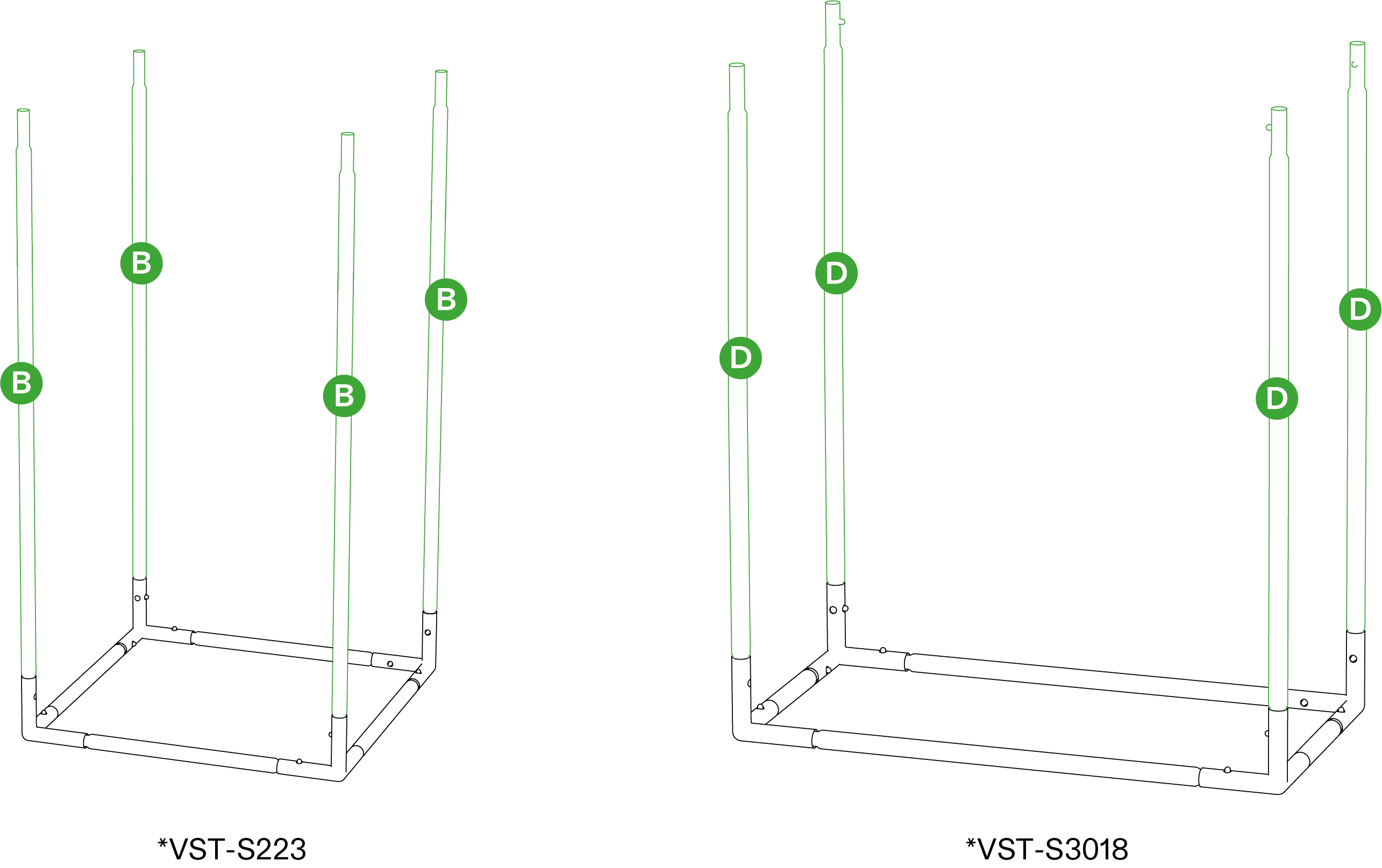

STEP 2
Connect four (B) Poles to the Corner Supports (4) of the tent base. For VST-S3018, connect four (D) Poles to the Corner Supports (4) .
STEP 3

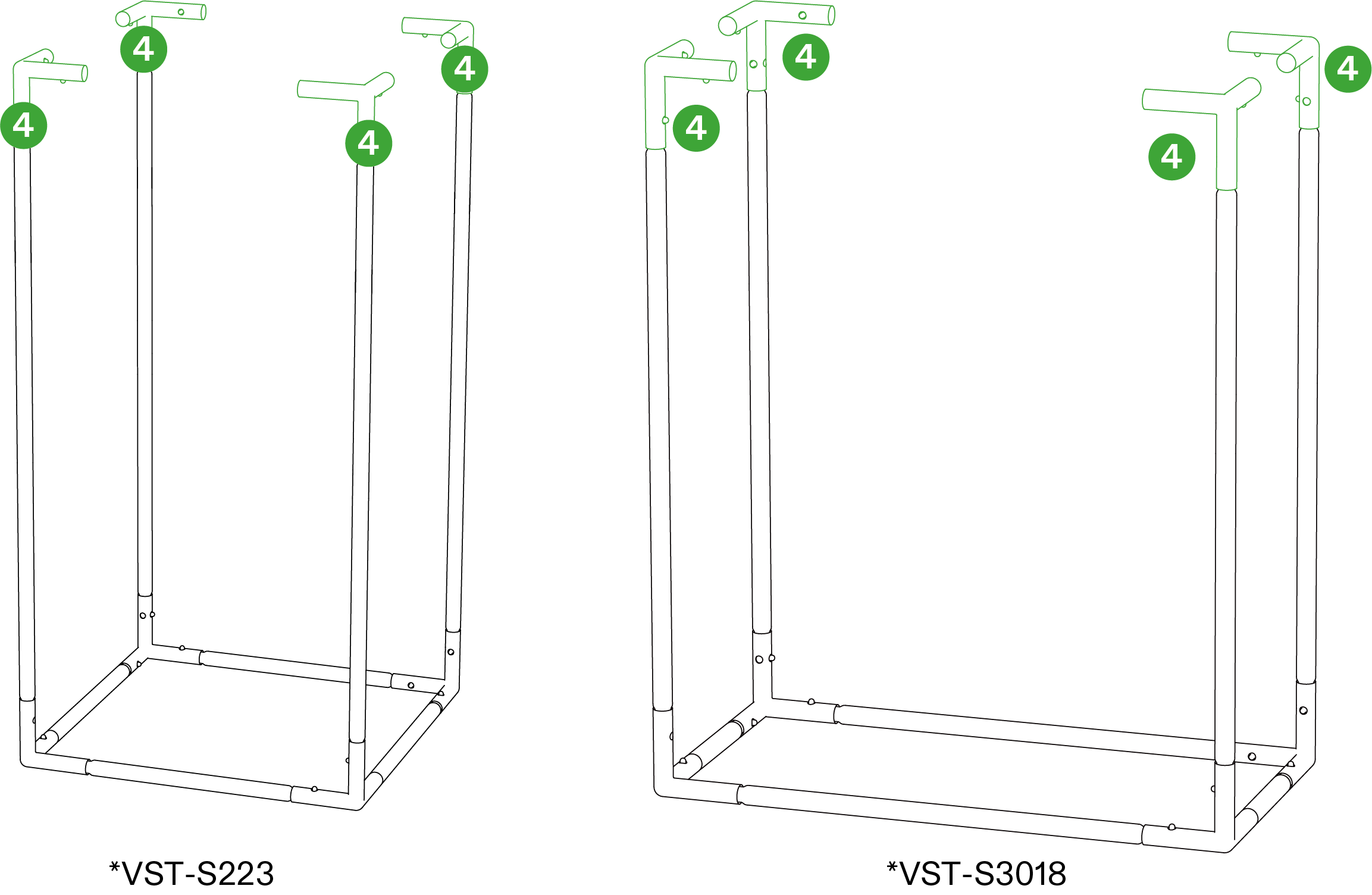

Attach the other four Corner Supports (4) to the (B) Poles or (D) Poles as shown.
STEP 4
Connect the other four (A) Poles to the Corner Supports (4) to form the top frame of the tent. For the VST-S3018, connect two (A) Poles and two (B) Poles as shown.
STEP 5
Unzip and unfold the Tent Coat (1) and put the base frame in the bottom of the Tent Coat .
STEP 6
Pull up the tent roof and cover the top frame.

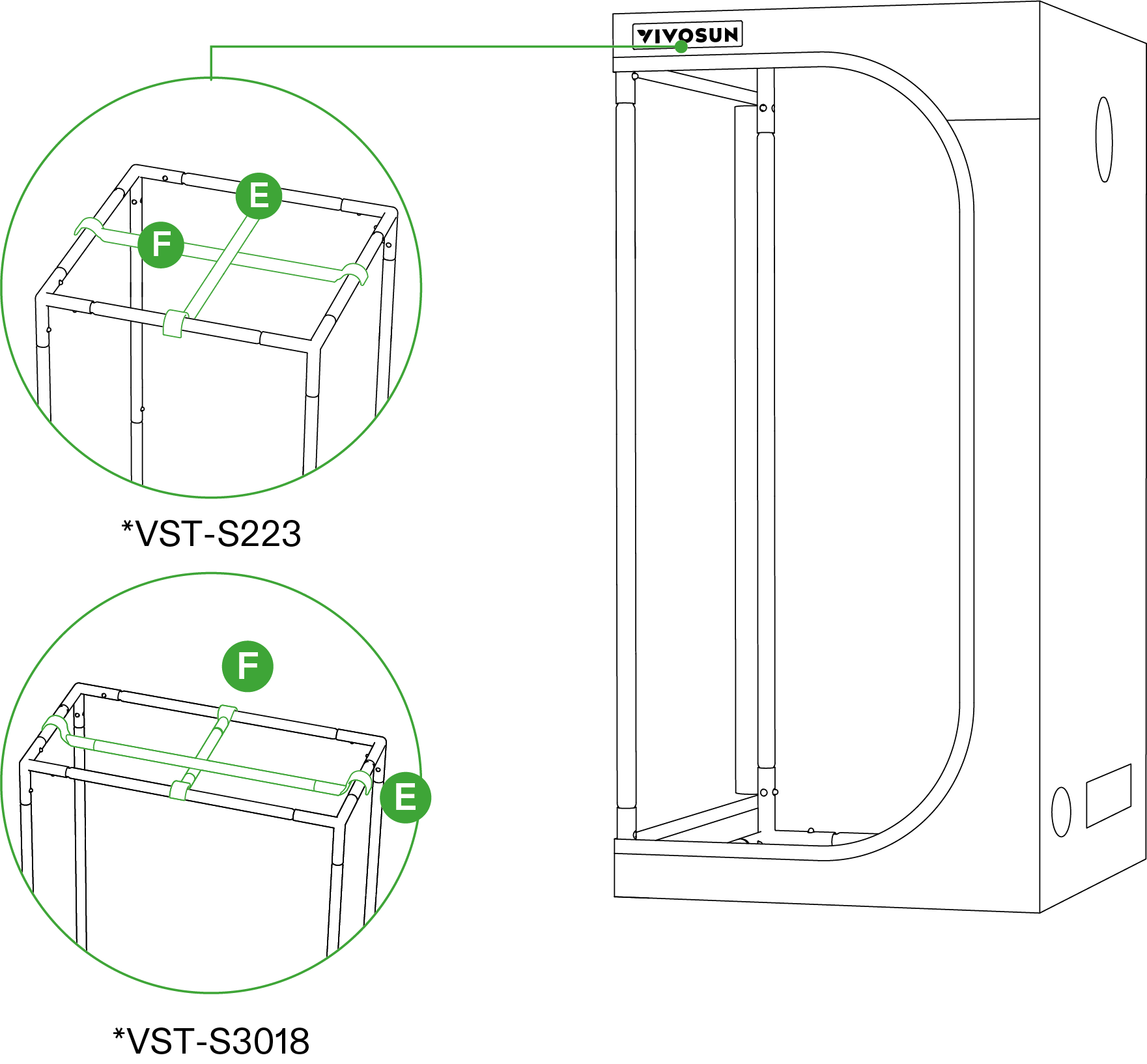

STEP 7
Place the Ceiling Bars (E, F) on the top frame for hanging devices.
STEP 8
Place the Floor Tray (2) into the tent.
STEP 9
Pull the zippers to close the tent walls and door. Make sure the tent coat fits the frame at the corners.
EQUIPMENT SETUP
GROW TENT VENTILATION
The grow tent has multiple ducting openings and intake holes for ventilation.
Ducting Opening: Install the required ducting onto a suitably sized ducting opening. Utilize the cinches located on both sides of the opening to firmly secure the ducting onto the tent.
Intake Air Vent: Facilitates the influx of fresh air into the tent.
*1.Ducting Opening *2.Intake Air Vent

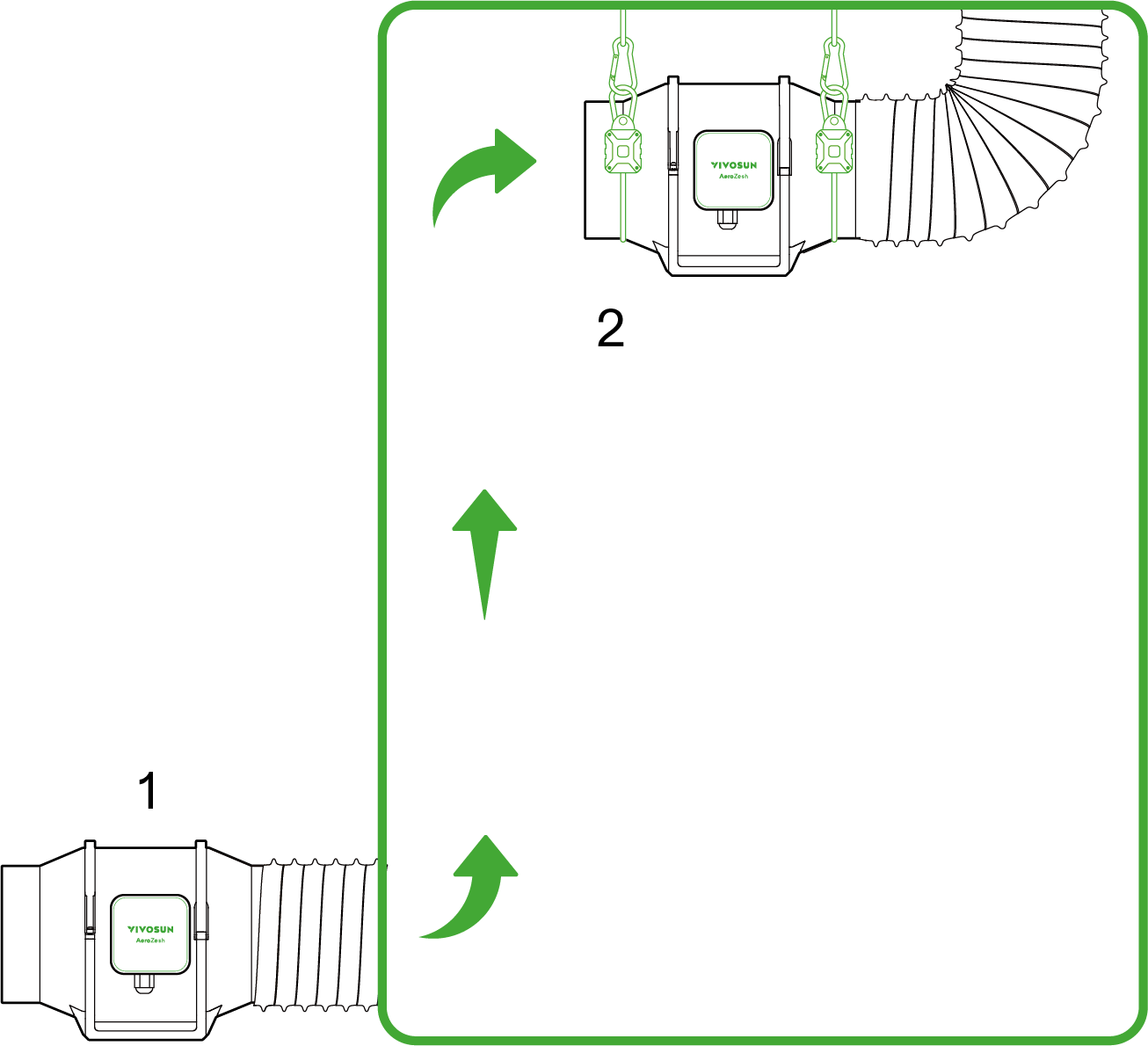

INLINE FAN APPLICATIONS
The Inline fan can be used as an exhaust fan or an or as an intake fan.
Exhaust Fan: Hung or mounted on the highest opposite corner of the Intake Fan inside your grow tent. Airflow arrow points away from your grow tent.
Intake Fan: Mounted at a bottom corner outside of your grow tent. Airflow arrow points toward your grow tent.
*1.Intake Fan *2.Exhaust Fan

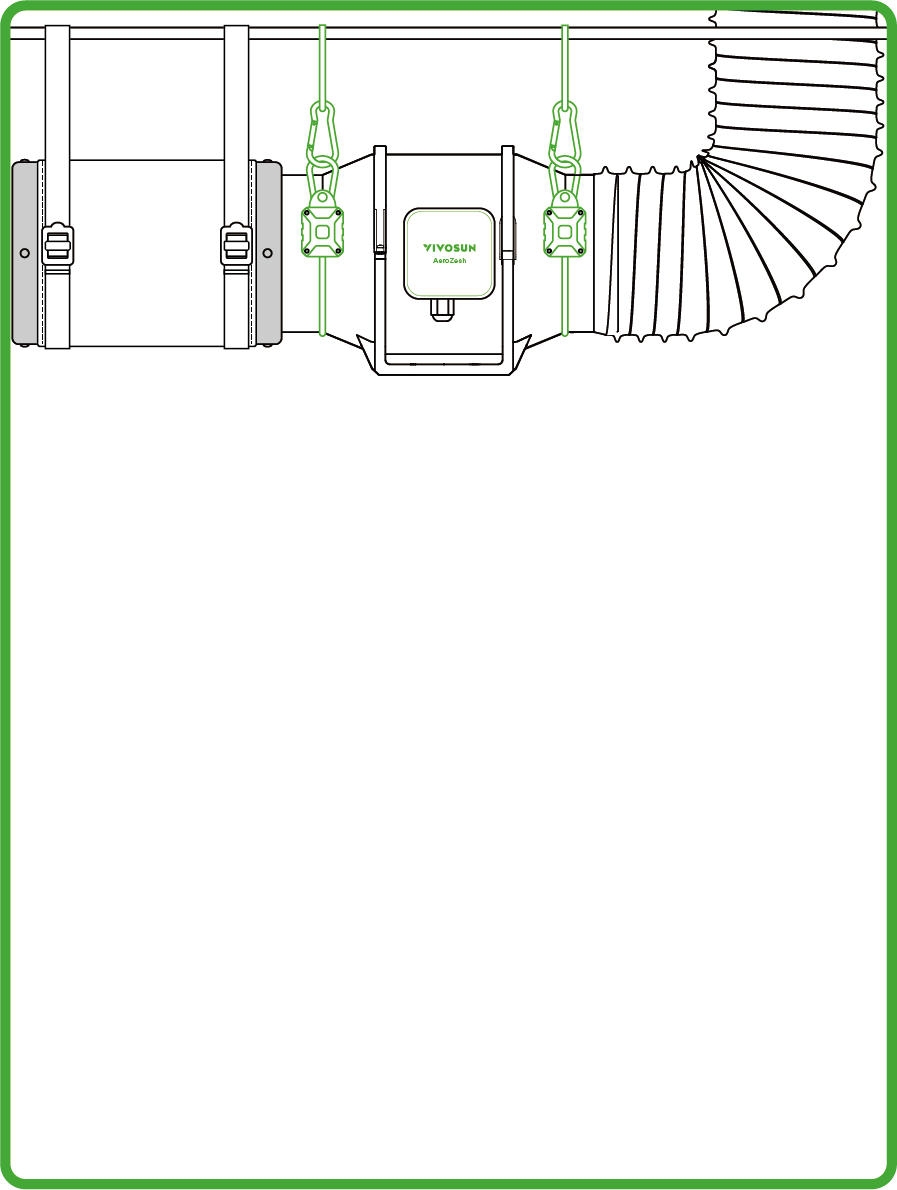

STANDARD SETUP

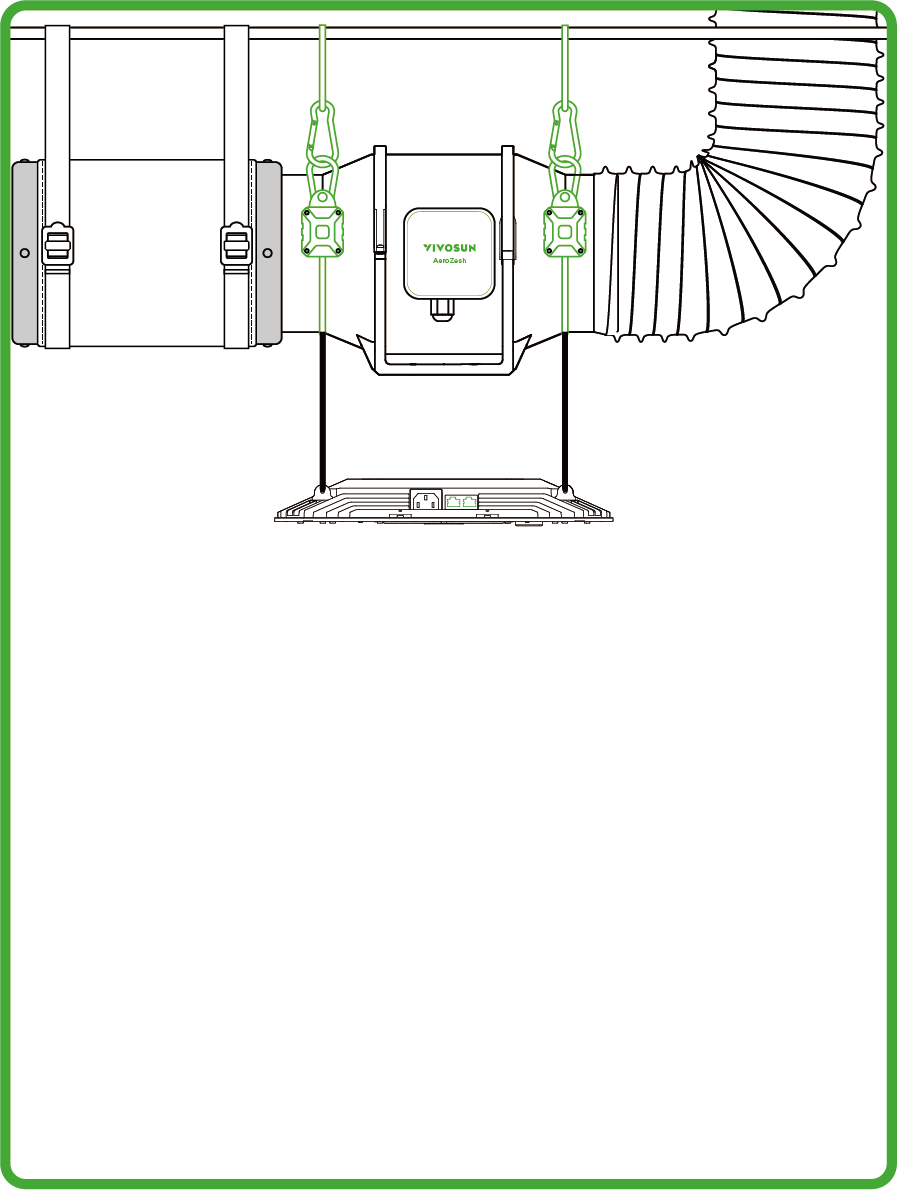

Inline Fan & Carbon Filter: Choose an appropriate inline fan suitable for your grow tent. Hang the inline fan on the ceiliing bar of the tent and connect with ductings on the air outlet side of the fan. Install a carbon filter on the air inlet side of the tent and hang with straps (provided with tent).
Grow Light: Choose an appropriate grow light for your tent. Install the grow light with rope hangers after installing the inline fan and carbon filter. Adjust the light to an appropriate height.
WARRANTY
VIVOSUN provides a one-year warranty against defects on all grow tents purchased directlyfrom us or through our authorized dealers. This policy serves as our commitment to promptly address any manufacturing defects or premature breakage that may occur during normal use of our products.
Our warranty covers the replacement or refund of purchases that exhibit material defects within one year of the original purchase date. In such events, customers may contact us to initiate the claim process. We will need proof of purchase to verify coverage eligibility.
This policy does not extend to products that have been misused, abused, or purposefully damaged. It also does not cover normal wear and tear or cosmetic defects such as minor scratches.
Customers can rest assured knowing that our products undergo rigorous quality testing procedures. This one-year warranty reflects our confidence in the durability of our products under normal use.
