GIY Smart Grow System Kit Manual

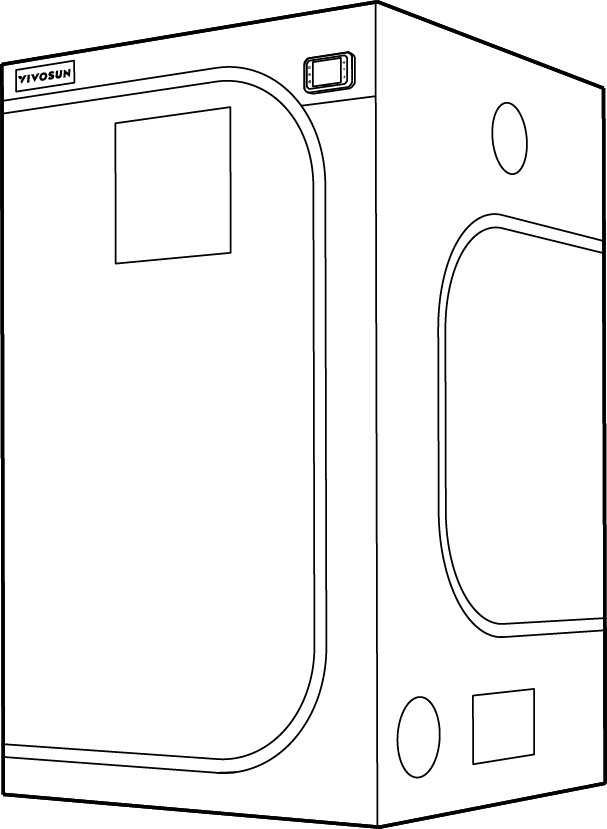

Setup your Grow Tent (BOX A) by following the instructions in the Grow Tent manual .

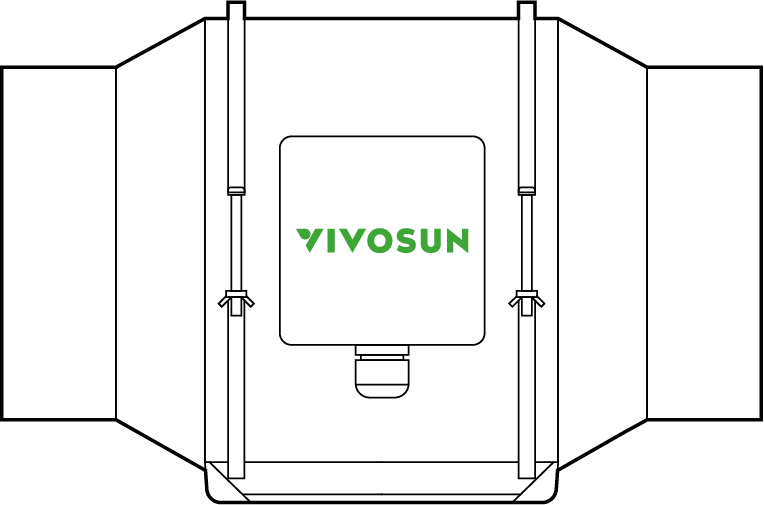

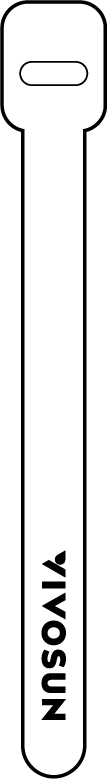

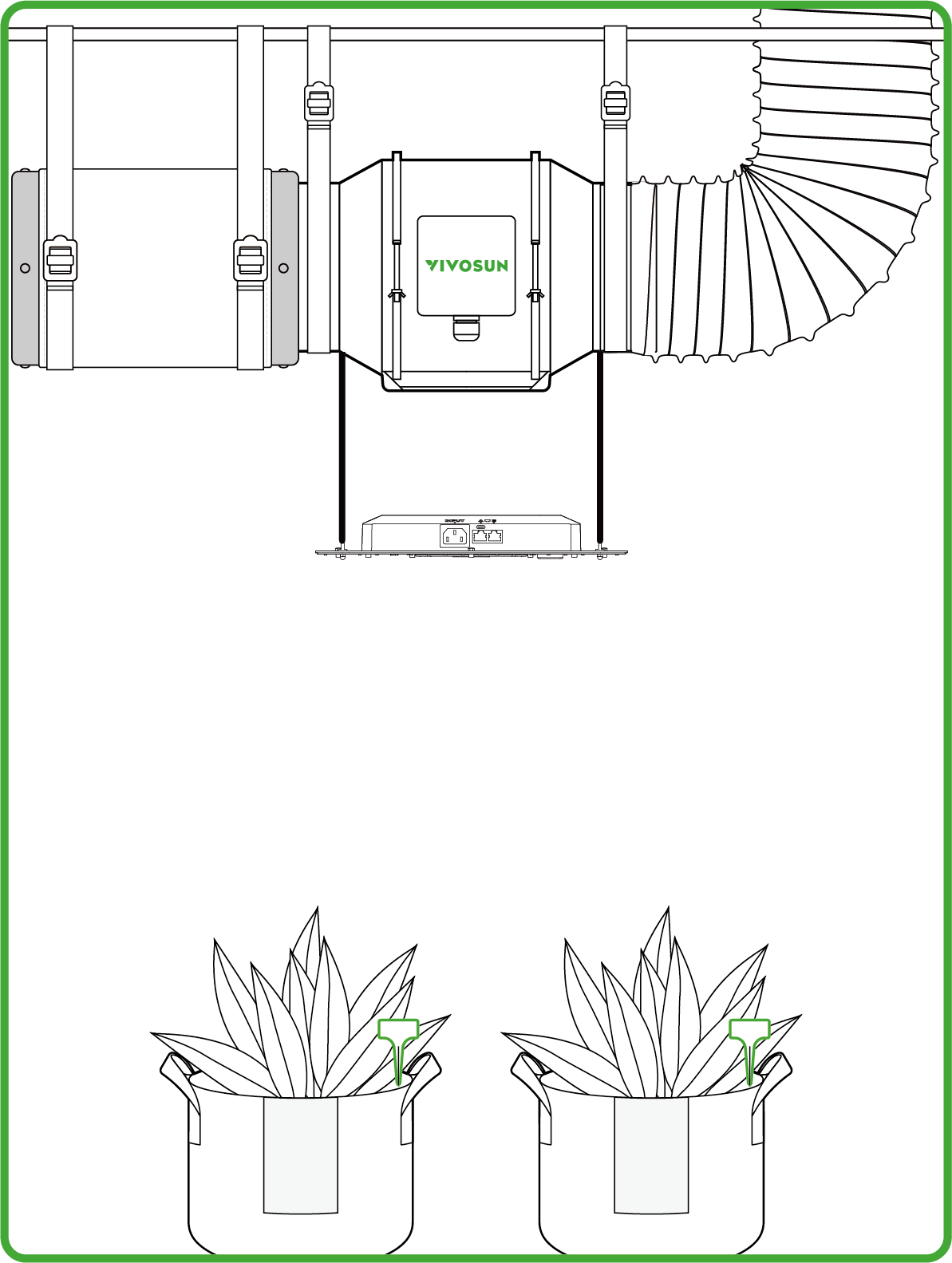

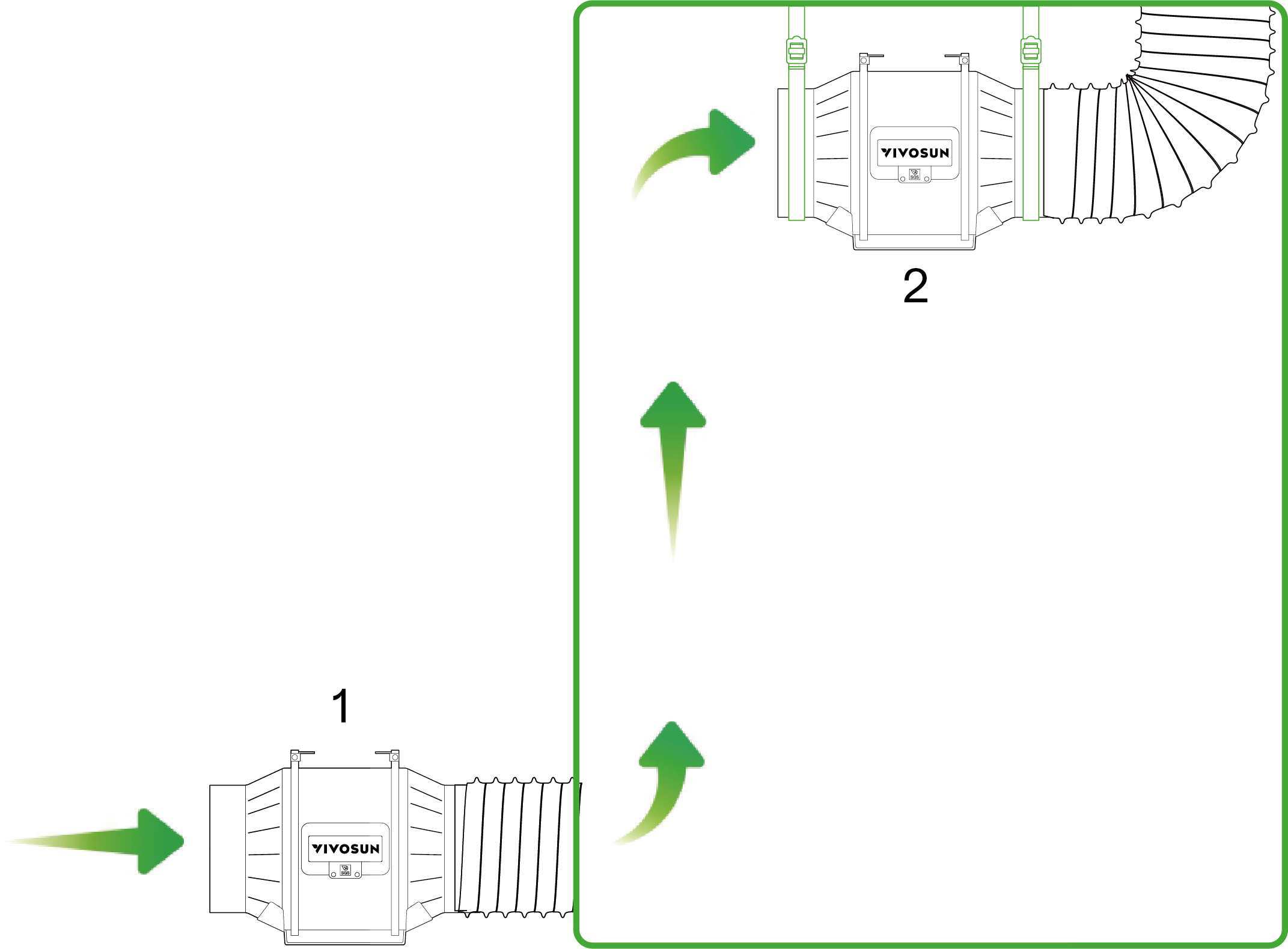

Install the AeroZesh Duct Fan (BOX D) at your preferred position. Hang the Duct Fan with Straps (BOX D) . For specific instructions, refer to the AeroZesh manual .

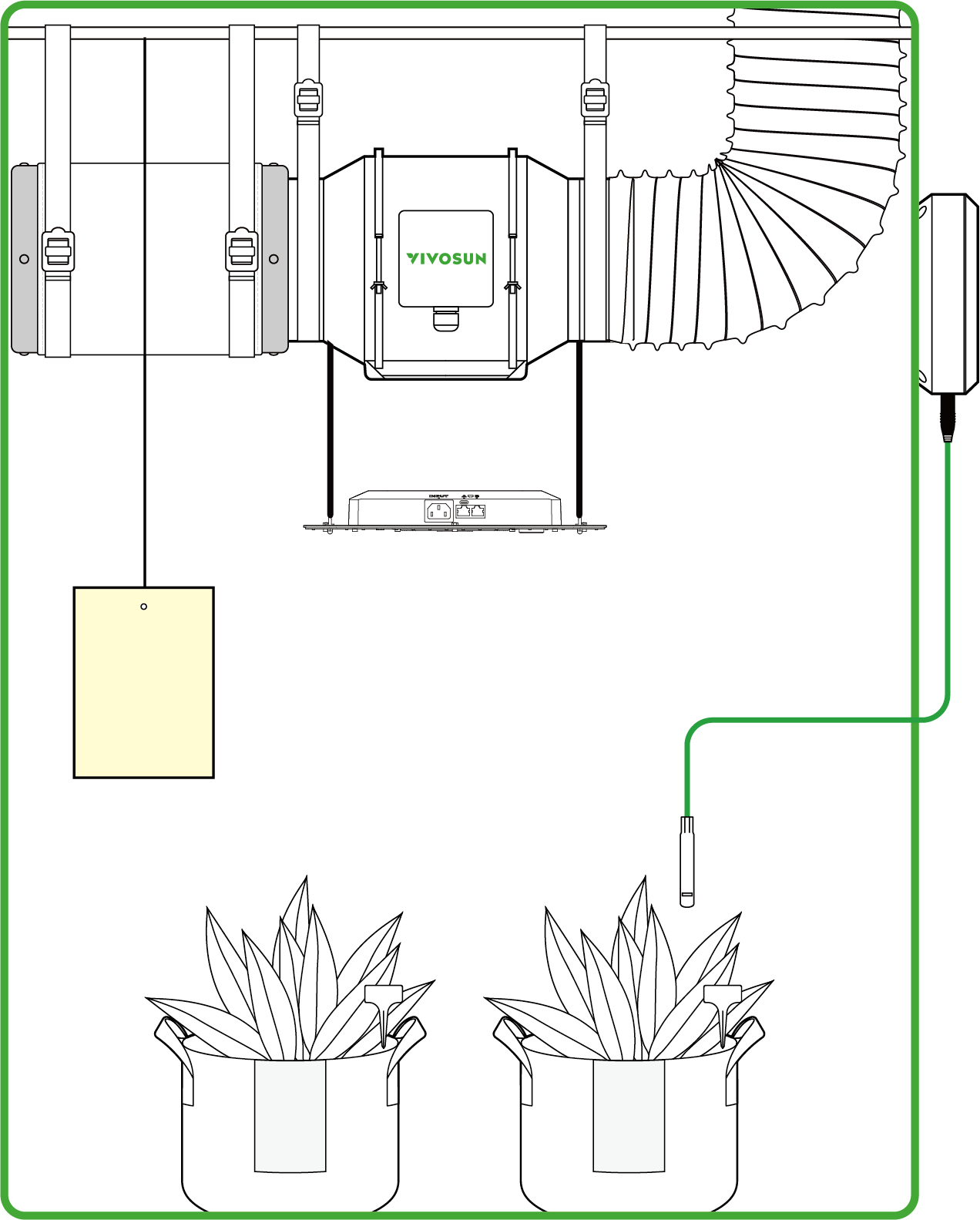

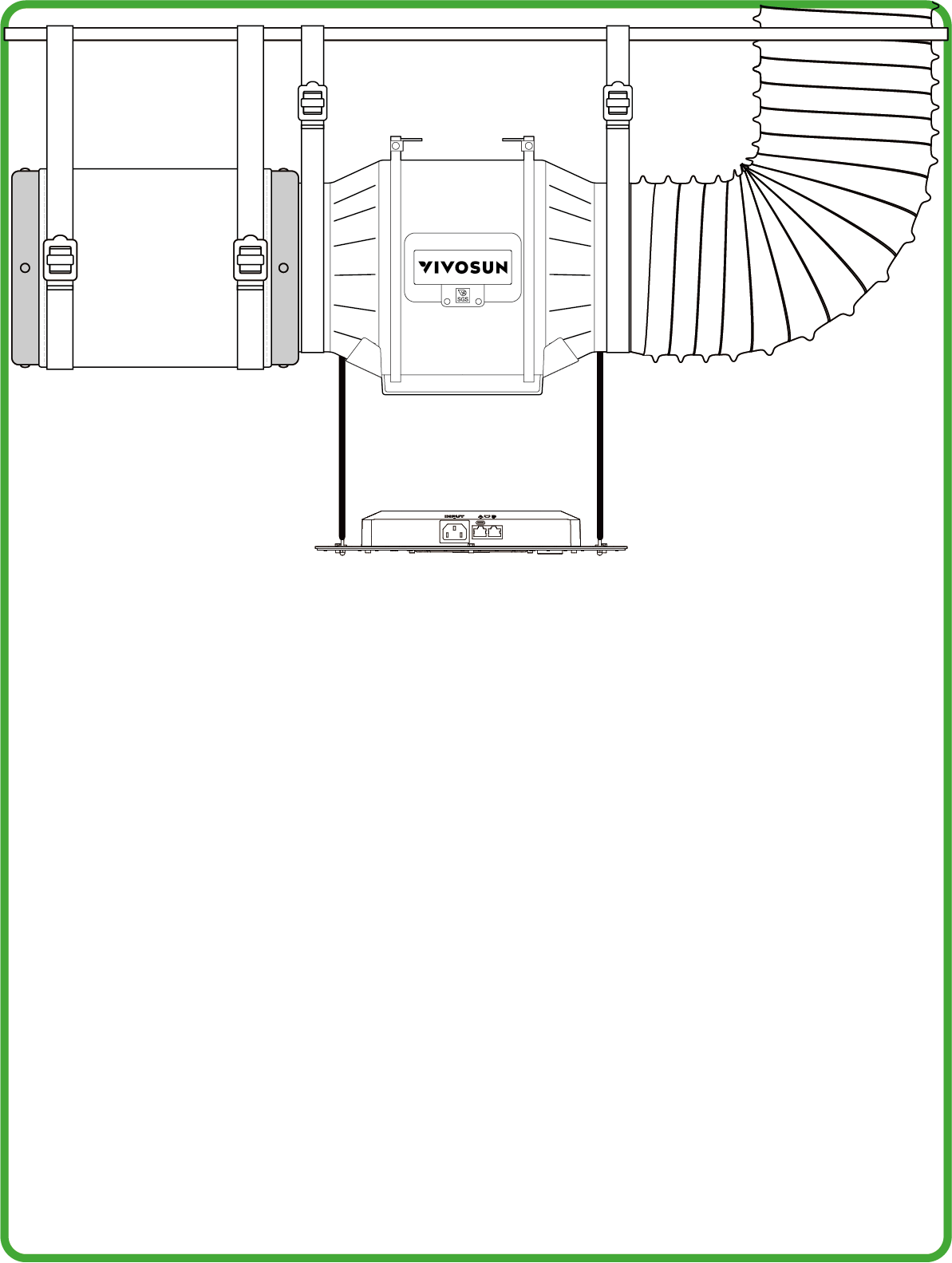

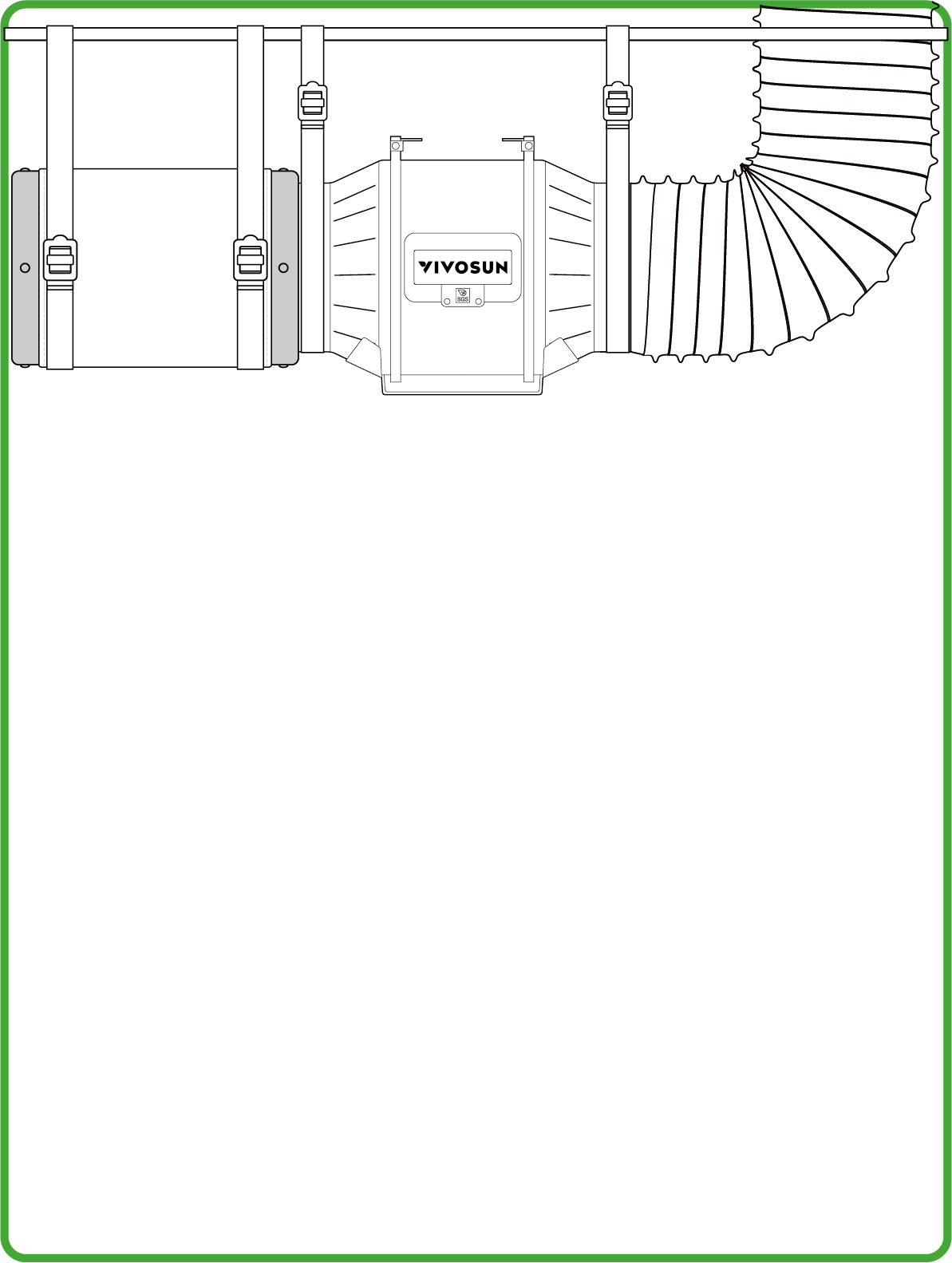

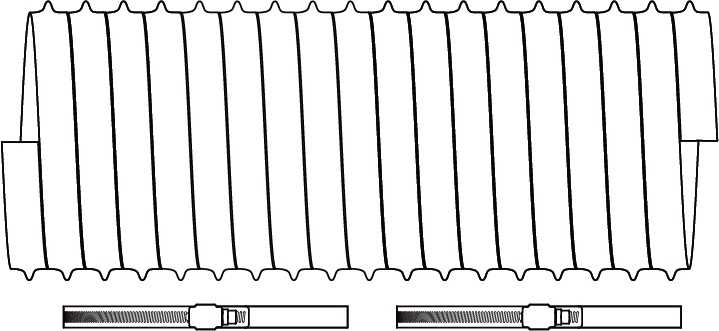

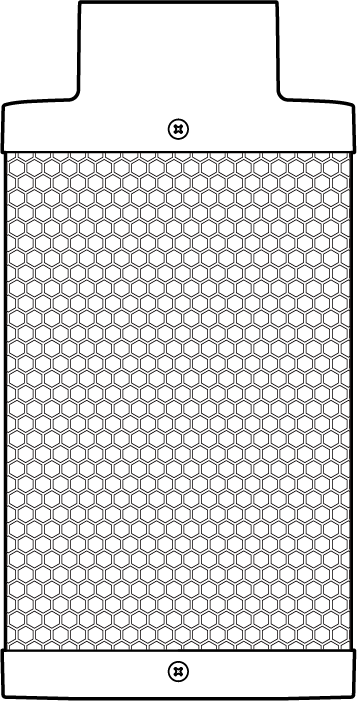

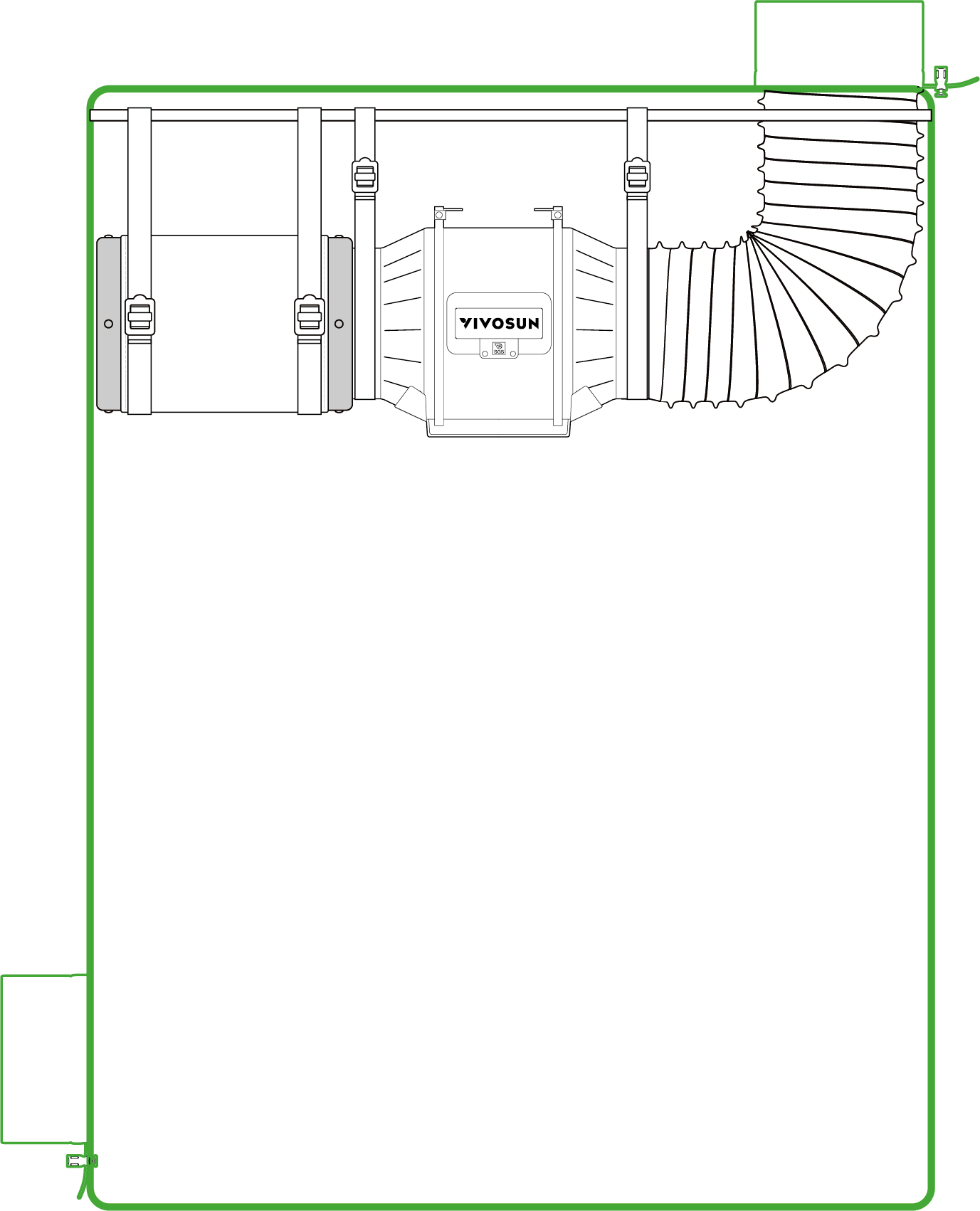

Cover the Prefilter on the Carbon Filter (BOX E) . Install the Carbon Filter and Ducting (BOX F) on the AeroZesh Duct Fan with Clamps and hang the with Straps (BOX E) .

For extra vent protection, put the Vent Cover (BOX H) into the inlet vent of the tent or outlet of the ducting if needed. (OPTIONAL) .

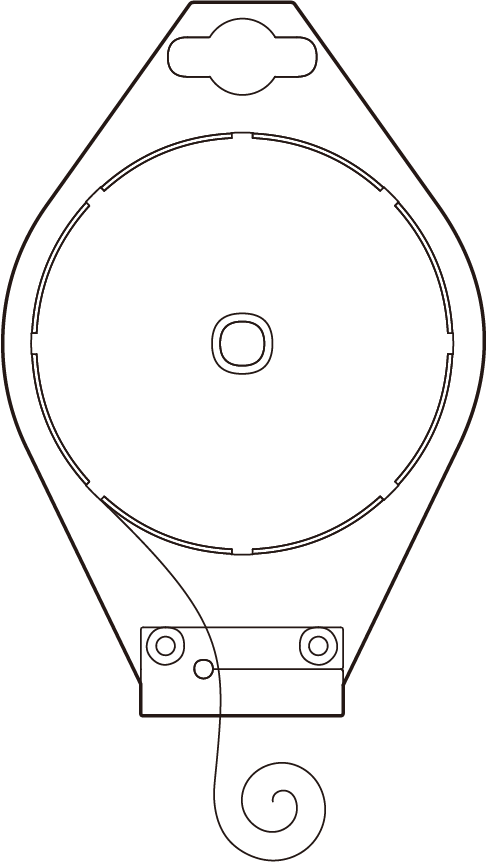

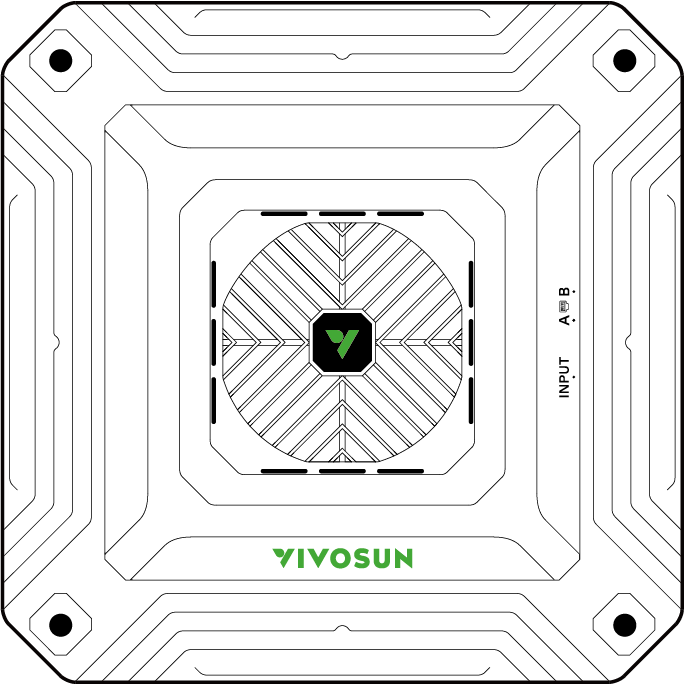

Install the AeroLight SE (BOX B) to a ceiling rod or other appropriate fixture using the Rope Hangers or Hooks (BOX B) and adjust to an appropriate height. For instruction specifics , please refer to the AeroLight SE manual .

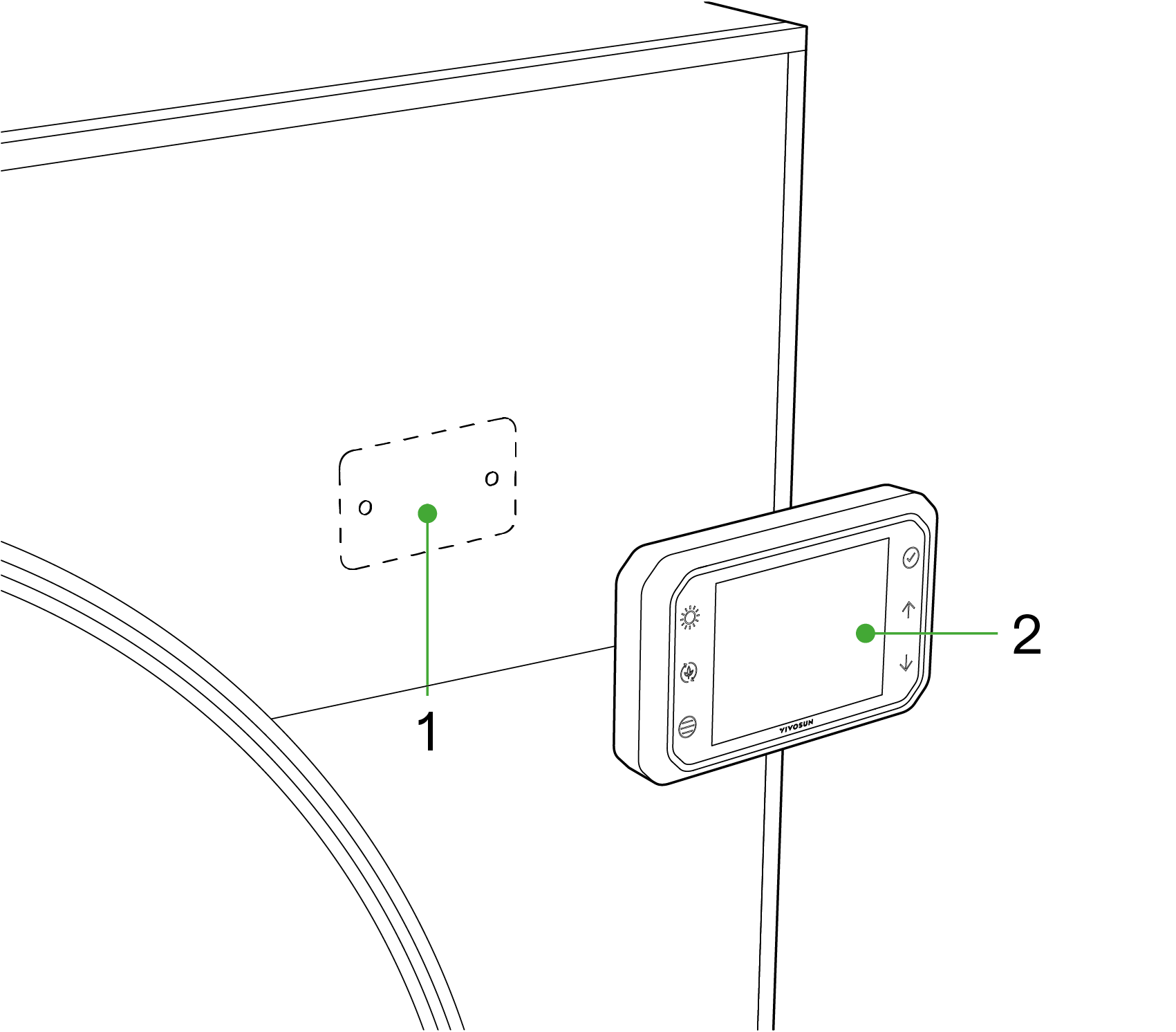

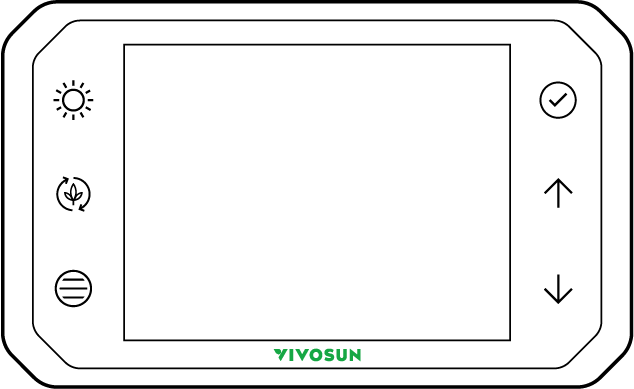

Mount the GrowHub Controller E42A (BOX C) on your tent or wall using the iron plate. For specific instructions, please refer to the GrowHub manual .

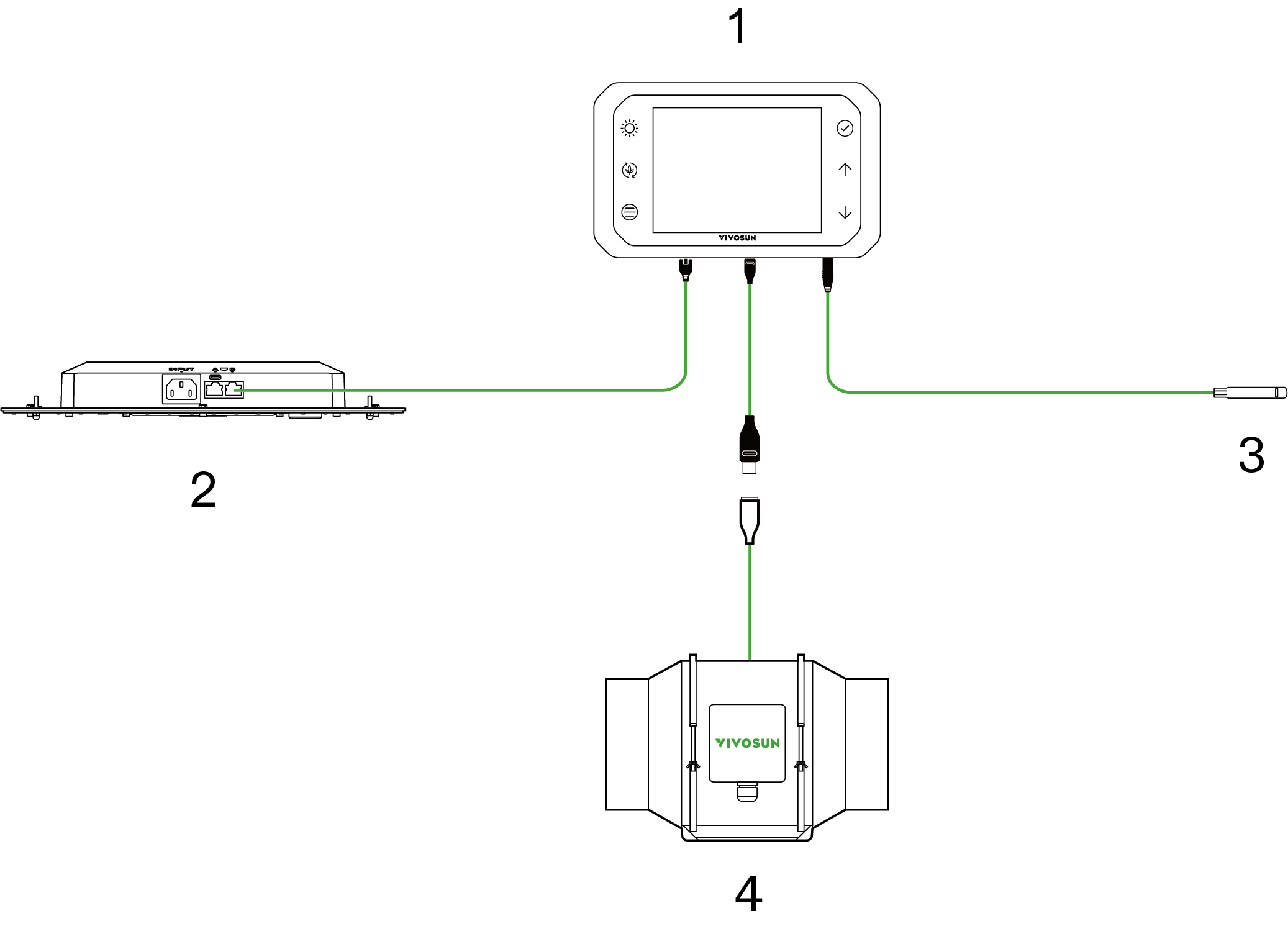

Connect the AeroLight SE to the GrowHub with a RJ45 Cable (BOX B) plugged into the RJ45 port . Connect the AeroZesh with a Type-C cable (BOX C) to one of the Type-C ports . Plug the Temp./Humidity Sensor (BOX C) into the AUX port . For specific instructions, please refer to the GrowHub manual .

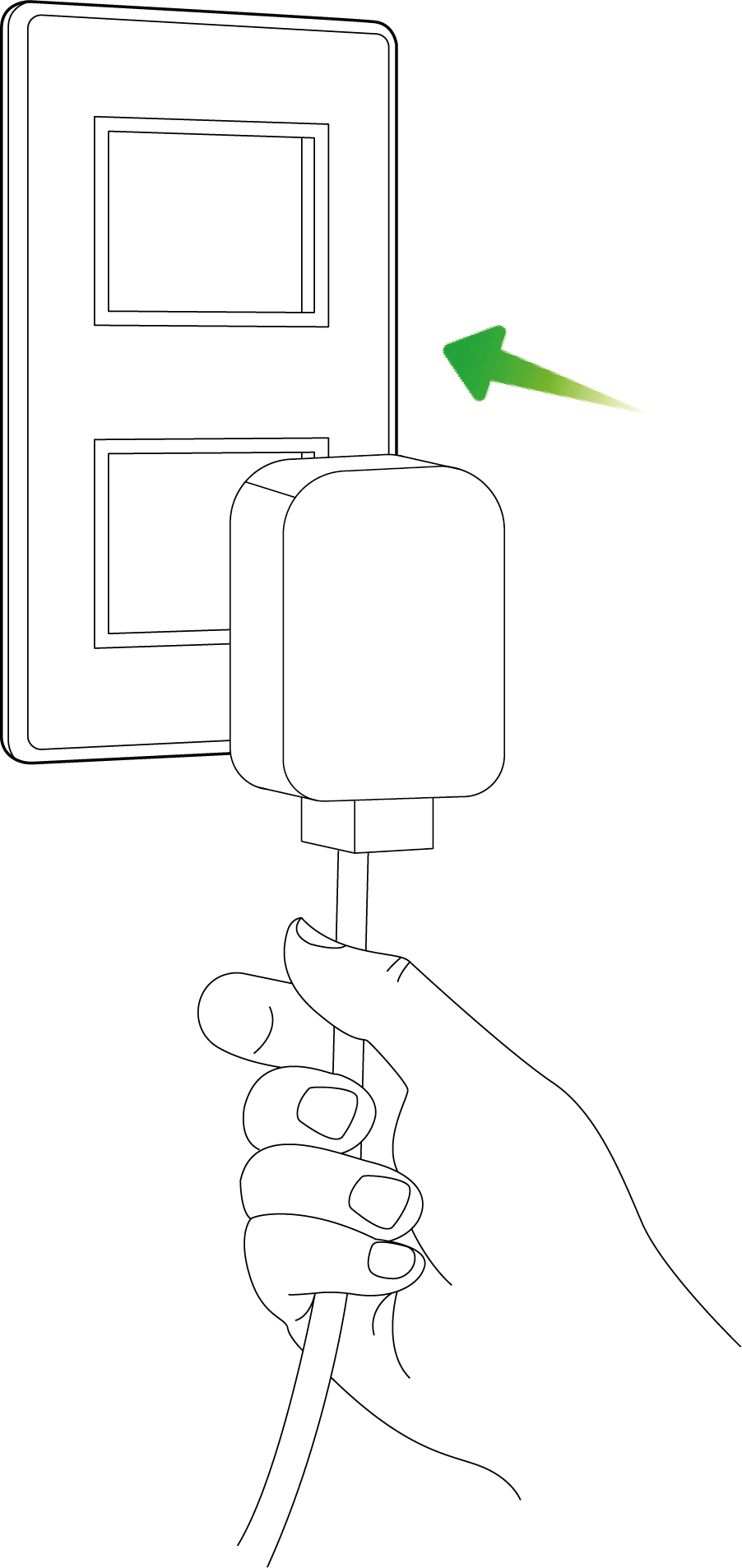

Plug the AeroLight SE and AeroZesh into nearby AC outlets using the power cords in BOX B and D .

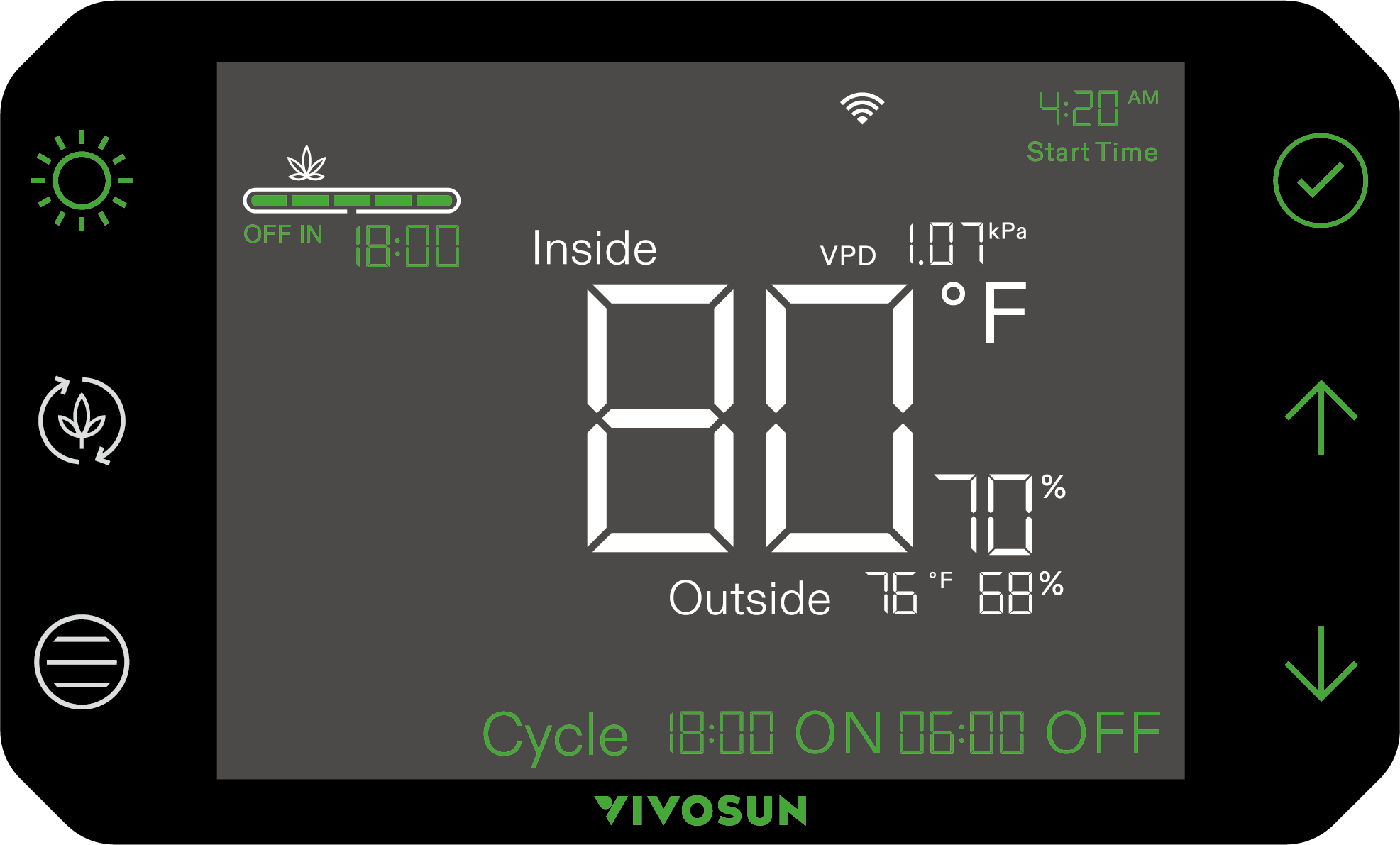

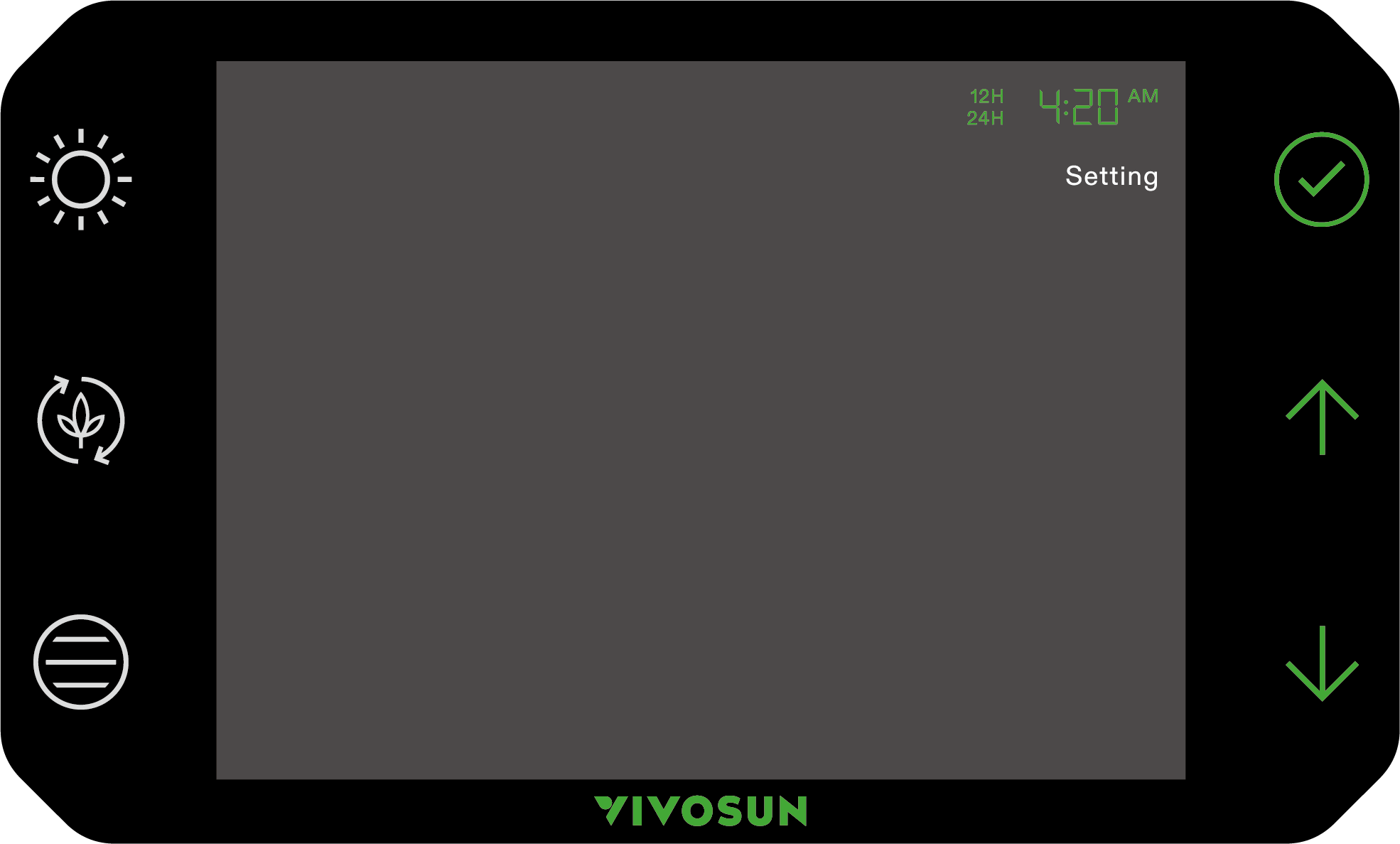

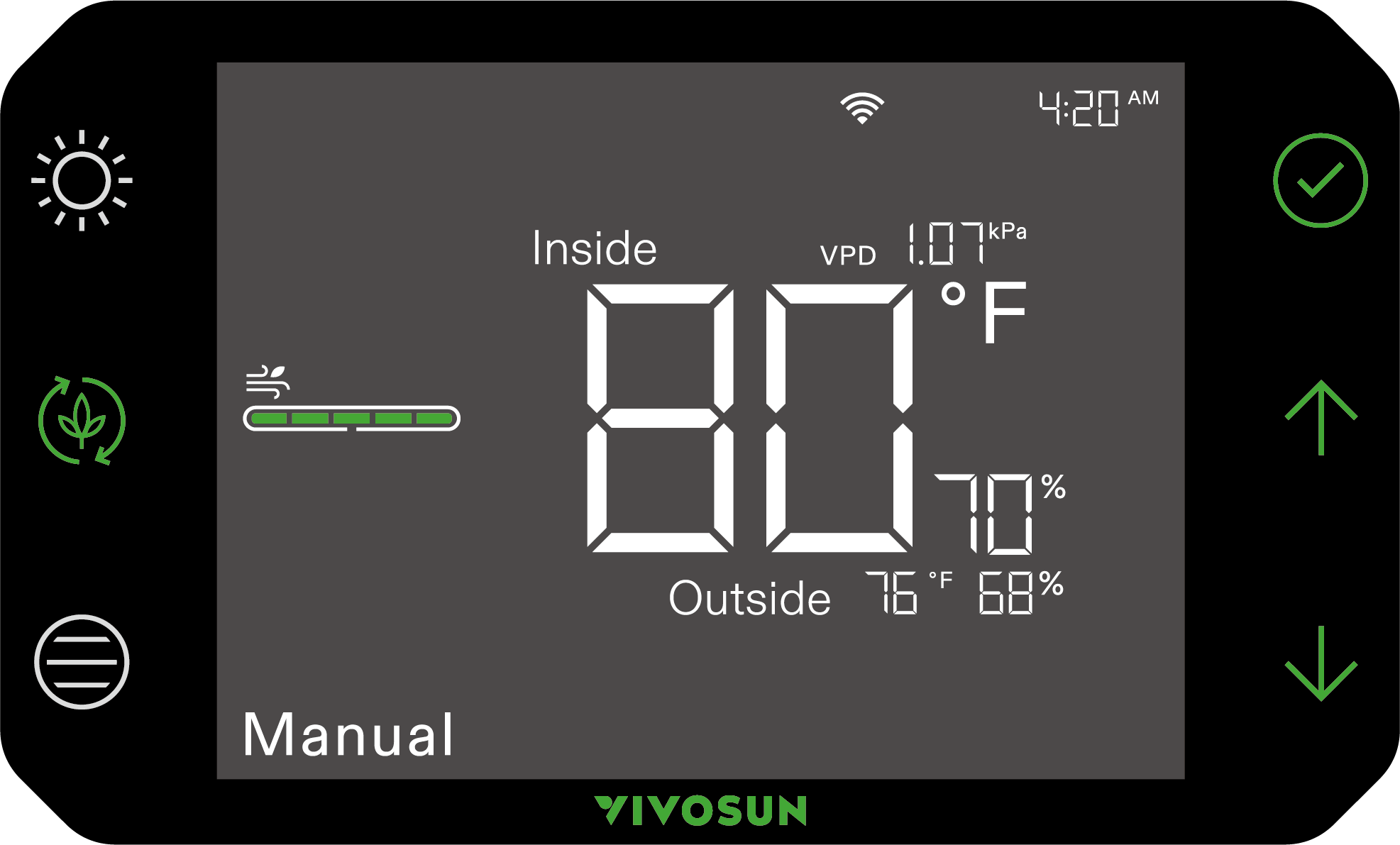

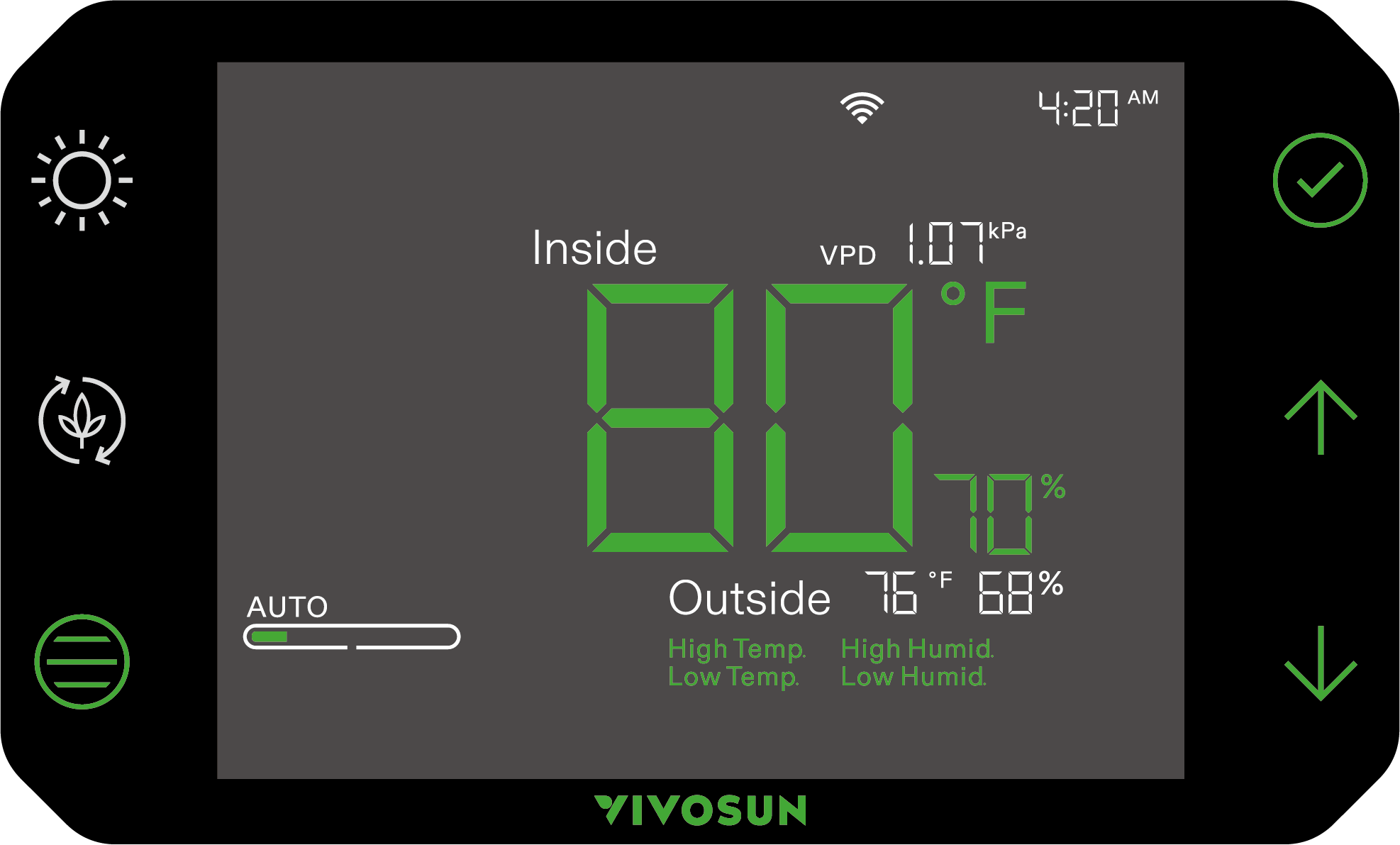

Set your GrowHub’s time to your local time. Calibrate the temperature and humidity. For specific instructions, please refer to the GrowHub manual .

Set the starting time, dimming level and ON/OFF cycle of your AeroLight SE on the GrowHub controller. For specific setting instructions, please refer to the GrowHub manual .

Set the fan speed and ON/OFF cycle of your circulation fan of the AeroLight on the GrowHub controller. Natural Breeze Mode is recommended for the fan speed setting. For specific setting instructions, please refer to the GrowHub manual .

Set the fan speed and ON/OFF cycle of your circulation fan on the GrowHub controller.Auto Mode s recommended for the fan speed setting while the duct fan automatically operates based on the environment conditions in the tent. For specific instructions, please refer to the GrowHub manual .

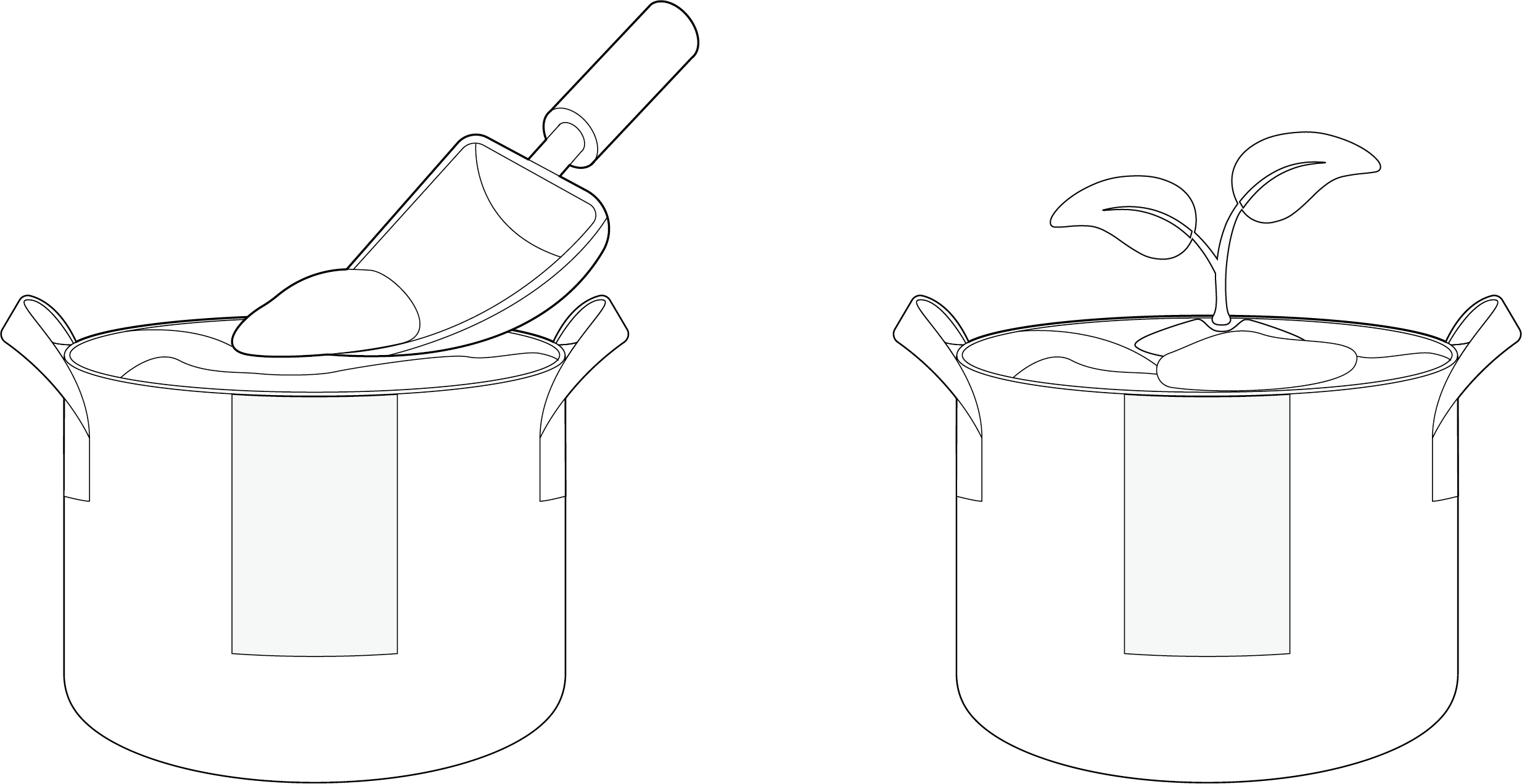

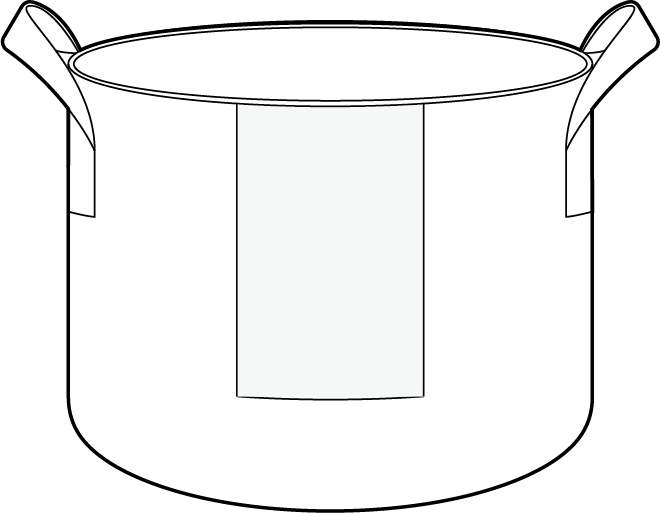

Fill the Grow Bags (BOX G) with growing medium and place the plants seeds or seedlings

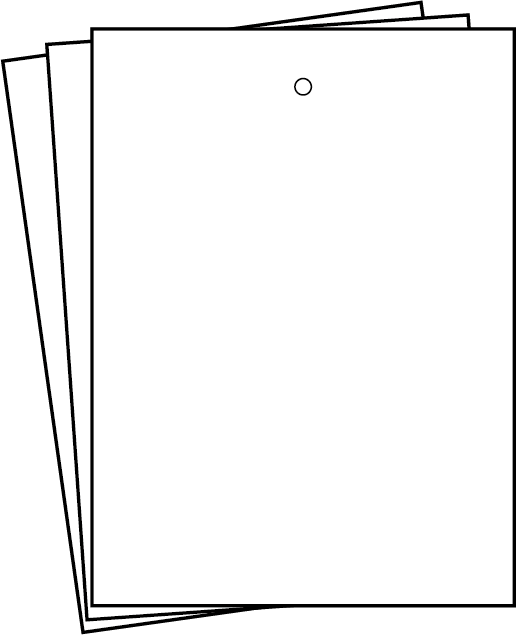

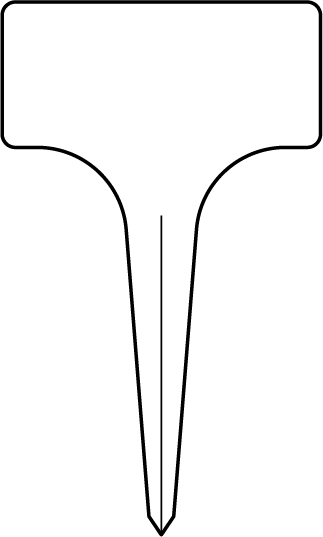

Write and put the tags (BOX H) near each plant for recording. Put the plants in the Grow Tent and irrigate regularly or when it needed.

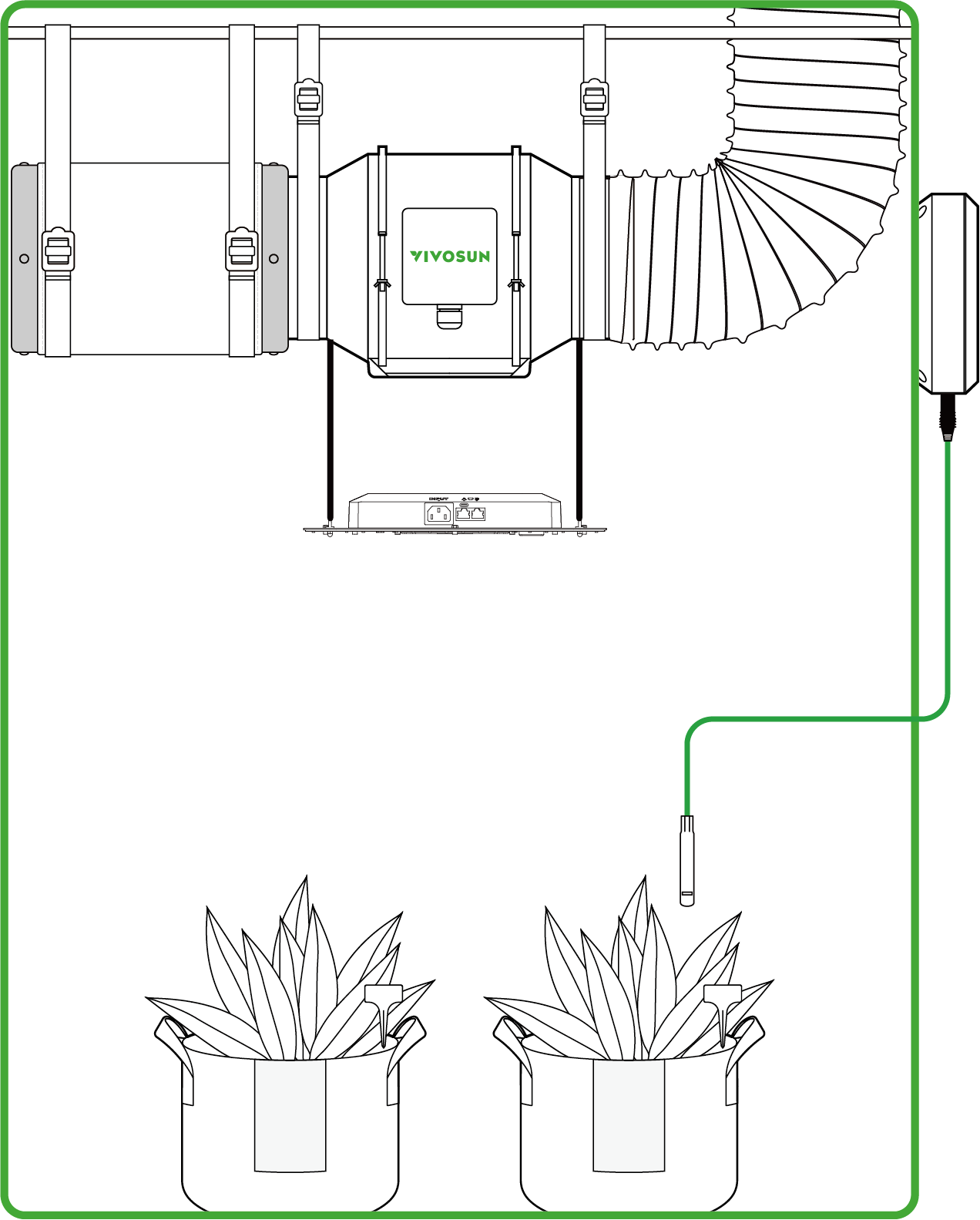

Place the Temperature/Humidity Sensor (BOX C) in an appropriate position in the Grow Tent to monitor the environmental conditions.

Place some Sticky Traps (BOX H) in the tent: Remove the film on the both sides of each sticky trap and place them near plants at the canopy level.

Download the VIVOSUN app from the App Store or Google Play Store. Follow the app’s instructions to register your account.

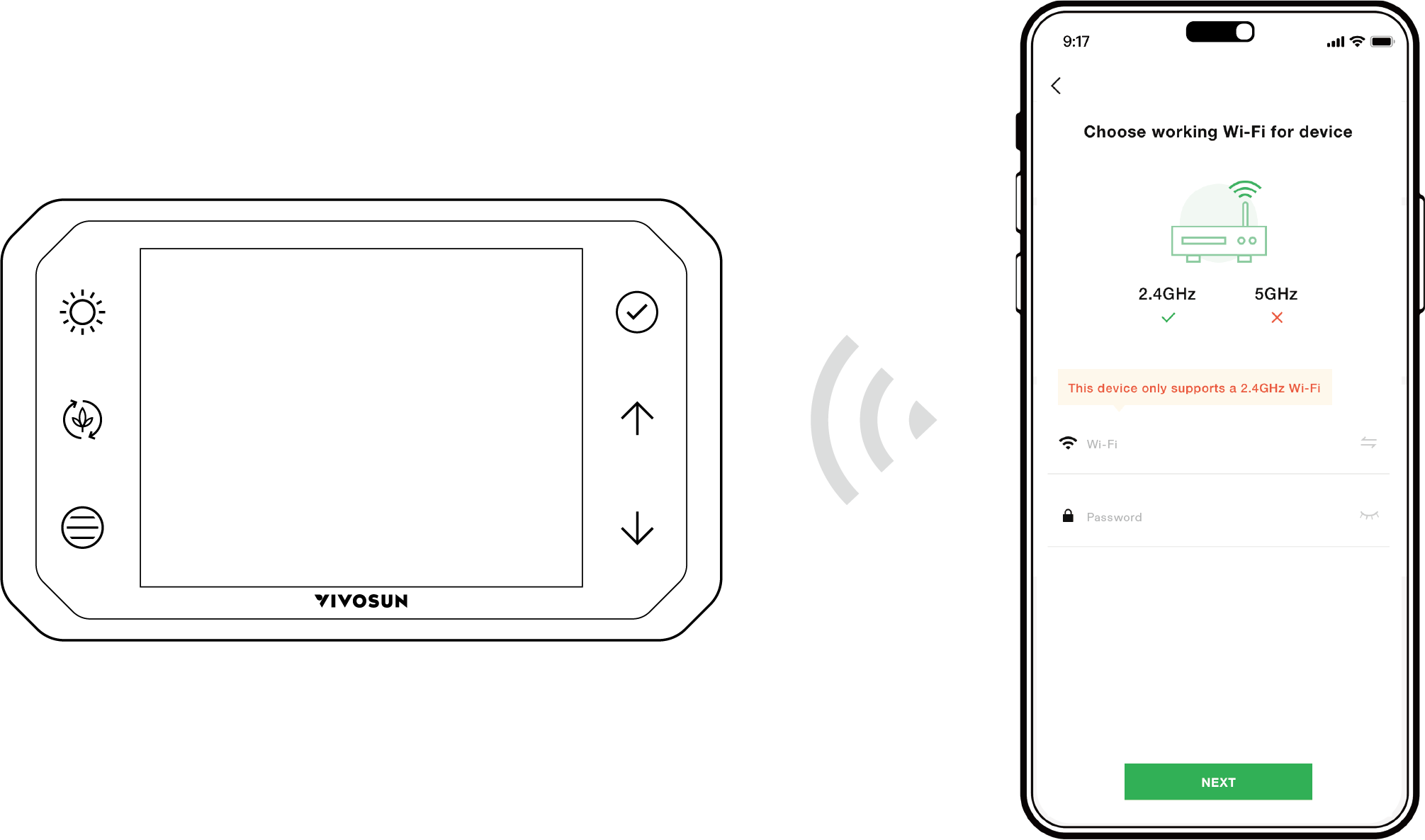

Log into your account and start a new ”garden” by connecting your GrowHub controller through Wi-Fi.

For specific info on how to do so, please refer to the GrowHub manual .

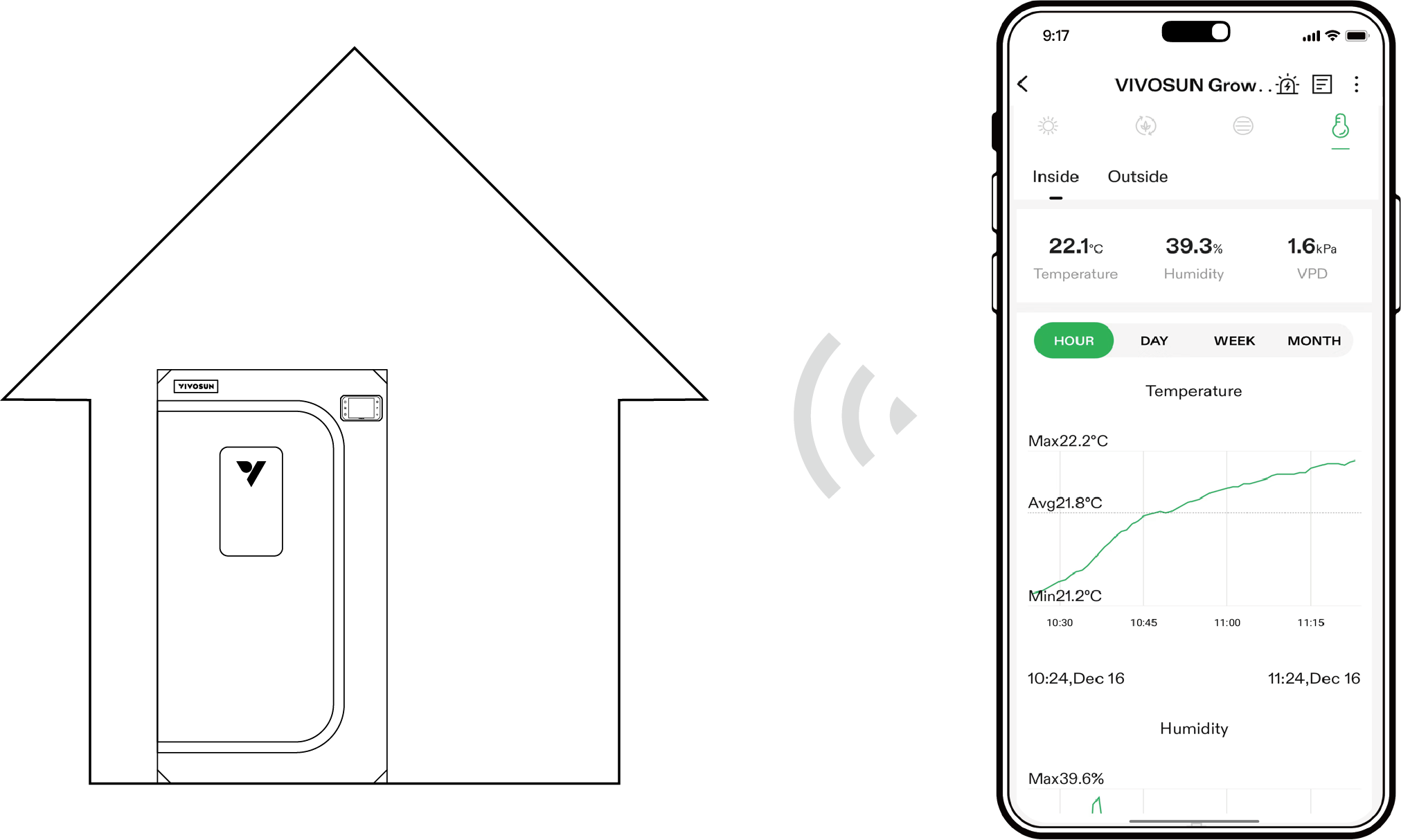

After connecting your GrowHub, you can set up a grow recipe, remotely control your devices, revisit archived logs, set alarms, record and share your experience.
