Vivosun
English

AeroWave D4 Manual

MODEL NAME

  • VSF-AWD4

  • VSF-AWD4×2

  • VSF-AWD4W

  • VSF-AWD4W×2

PRODUCT CONTENTS

Image Name Box Number

f9439e82bdef4af5799e0f82066c96cc

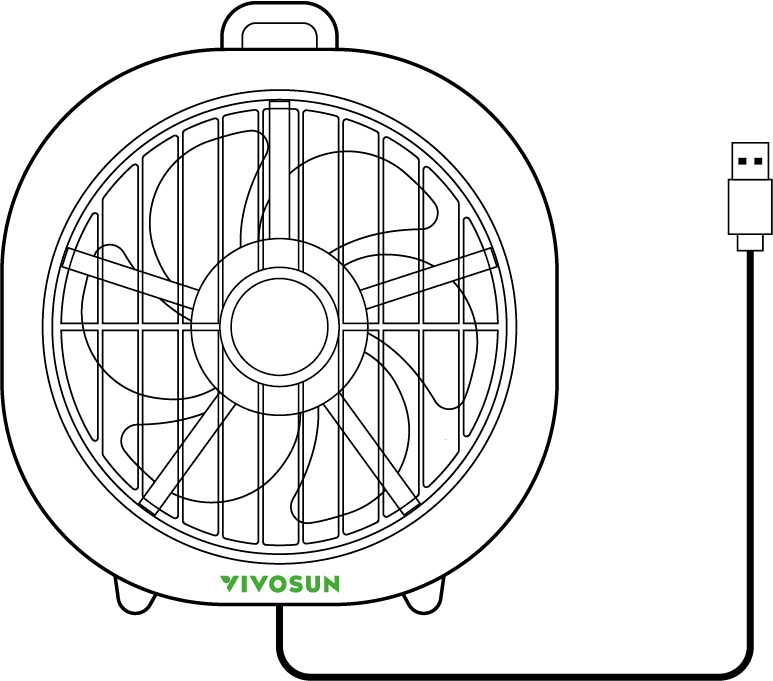

Fan

1 pc

88f9d7f91efa98c33fd05965c7927c81

Magnetic Hook

1 pc

7a30715095cf6e180a8ad2a098415361

lron Plate

1 pc

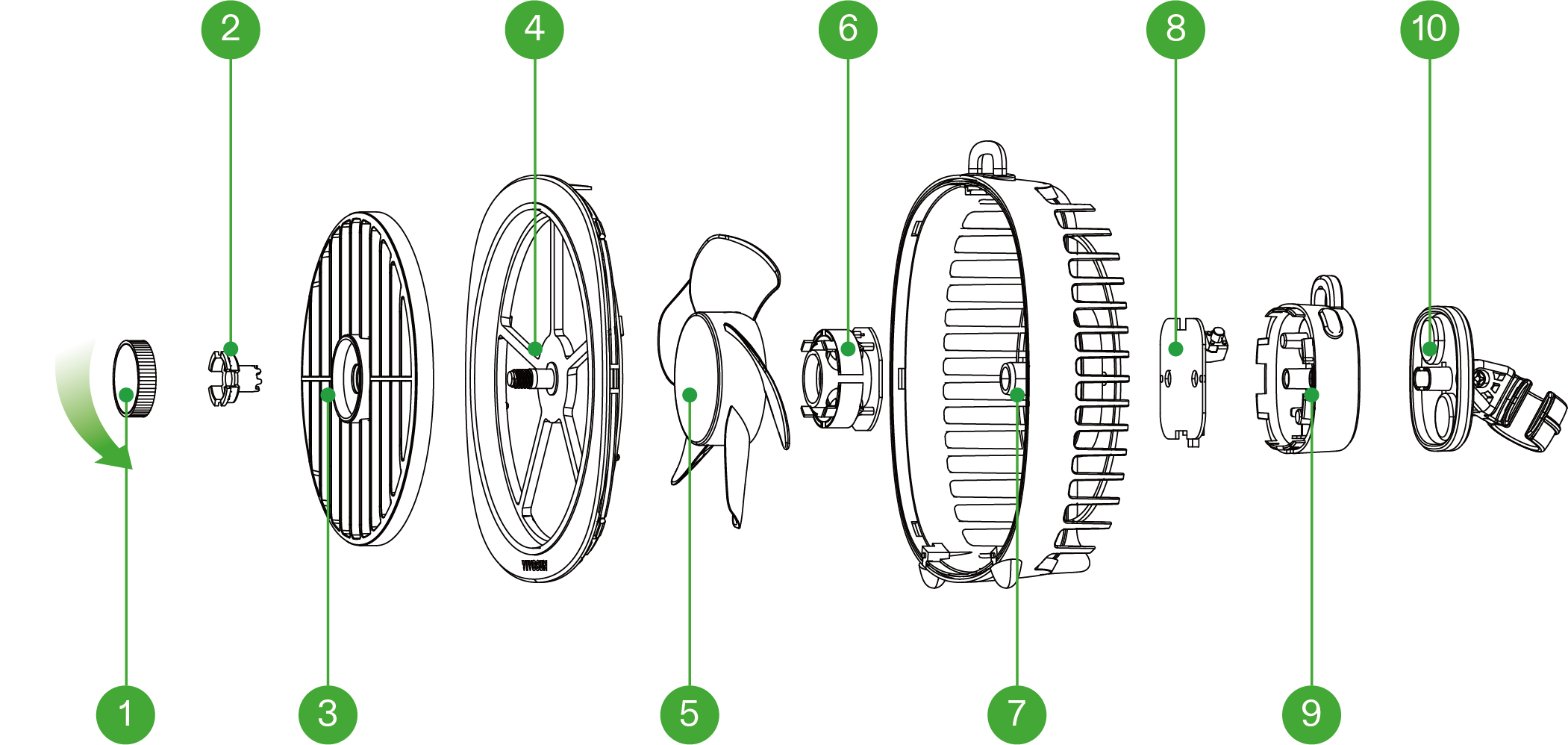

PRODUCT ANATOMY

b63e71076267c4a890c1c55efd294837

Adjustment Knob

Tension Cap

Rotating Air Cover

Front Cover

Fan Blade

Motor

Fan Body

PCBA

Rear Cover

Hook

SPECIFICATIONS

Product Name

AeroWave D4

Product Model

VSF-AWD4 / VSF-AWD4W

Input Voltage/Current

5V 195c5d9af01b1d832b2ab43ec35b2226 1A

Rated Power

4W

Material

ABS+PP

Size

25*57*135mm / 4.9*2.2*5.3 in.

Airflow Capacity

85 Cubic Feet Per Minute

Noise

<35 dB(A)

Fan Speed (Max)

3500 RPM

Rated Lifespan

15000 hrs

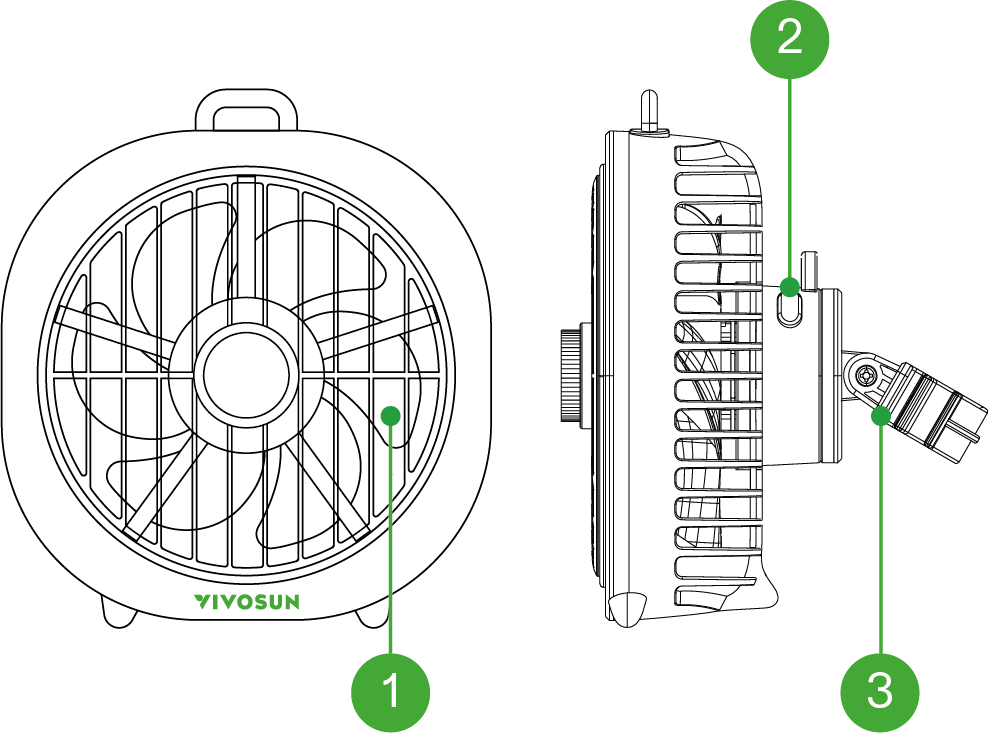

PRODUCT FUNCTIONS

68a555506987229c07863f0133e65ba0

Blade

Power Button

Hook

THREE-SPEED CONTROL

To operate, plug in the power supply and press the power button to activate the low-speed gear. Press the button again to switch to the medium-speed gear. Press the button once more to switch to the third gear. Finally, press the power button again to turn it off.

MEMORY FUNCTION

This clip-on fan features a memory function. When you turn the fan off, it will automatically memorize the last fan speed and gear setting you selected. Once you turn the fan on again, it will resume operation at these settings.

ROTARY KNOB

Stop the rotation of the fan mask by turning the knob to the right.

USAGE MODES

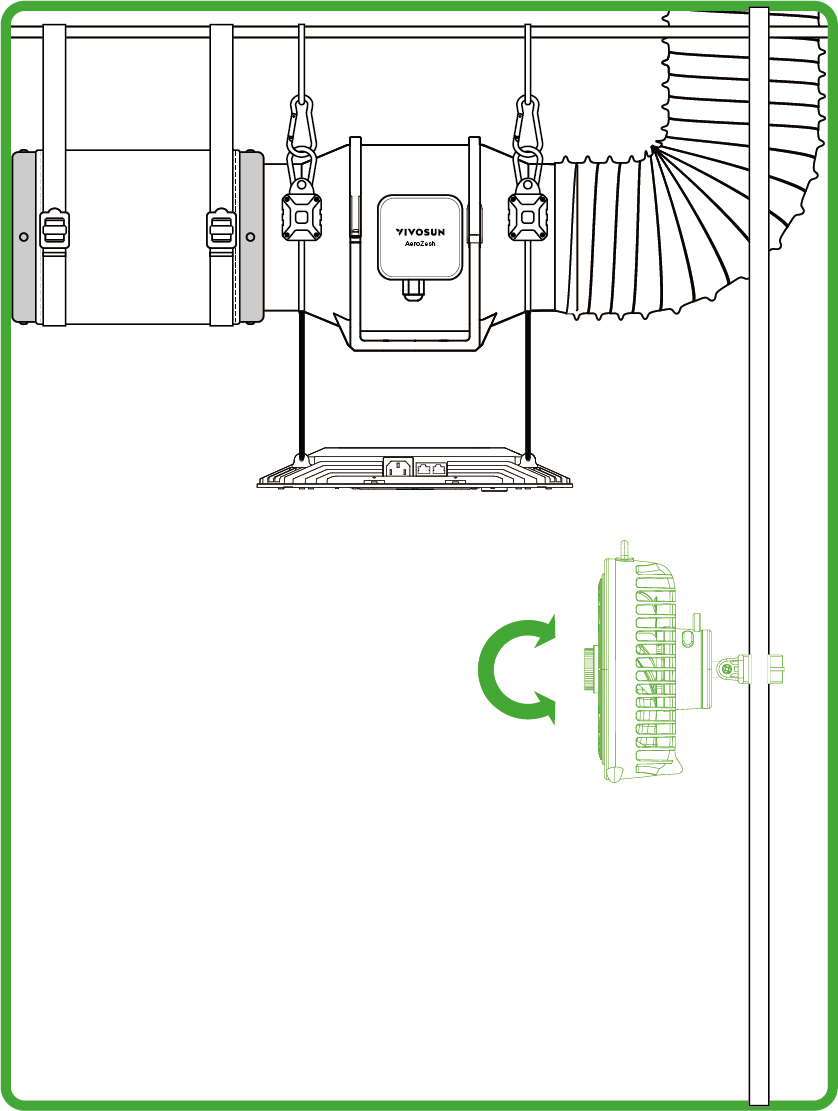

1.The hook clasps the pole(16-22mm)

Pull the hook to the main body of the clamp fan, and then attach the product to the pole, Once positioned, plug the power cord into a suitable outlet. Locate the power button on the fan and press it. Finally, adjust the wind speed using the power button.

e6a9c922b6e7525bba381945d9249e00

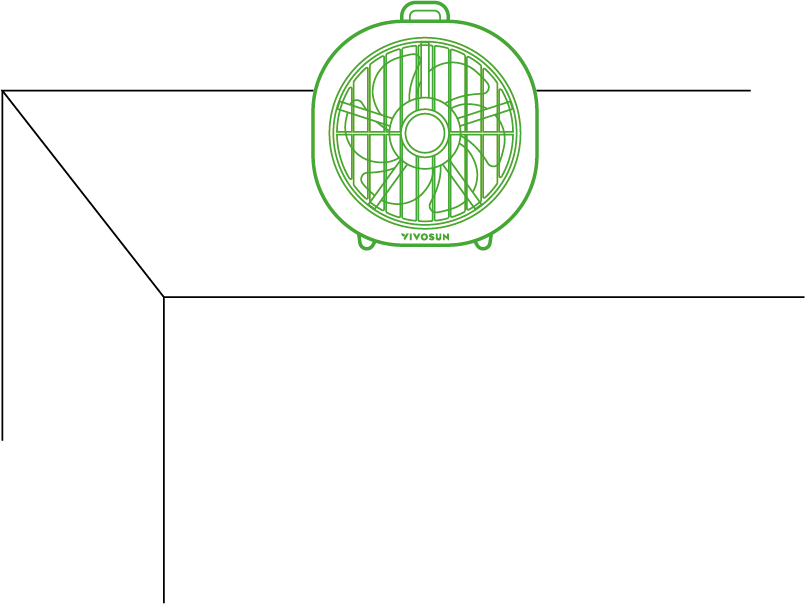

2. Placed on a flat surface

Place the fan on a flat, stable surface. Once positioned, plug the power cord into a suitable outlet. Locate the power button on the fan and press it. Finally, adjust the wind speed using the power button.

46dc9d5f37c21677f4e3f3003df72c39

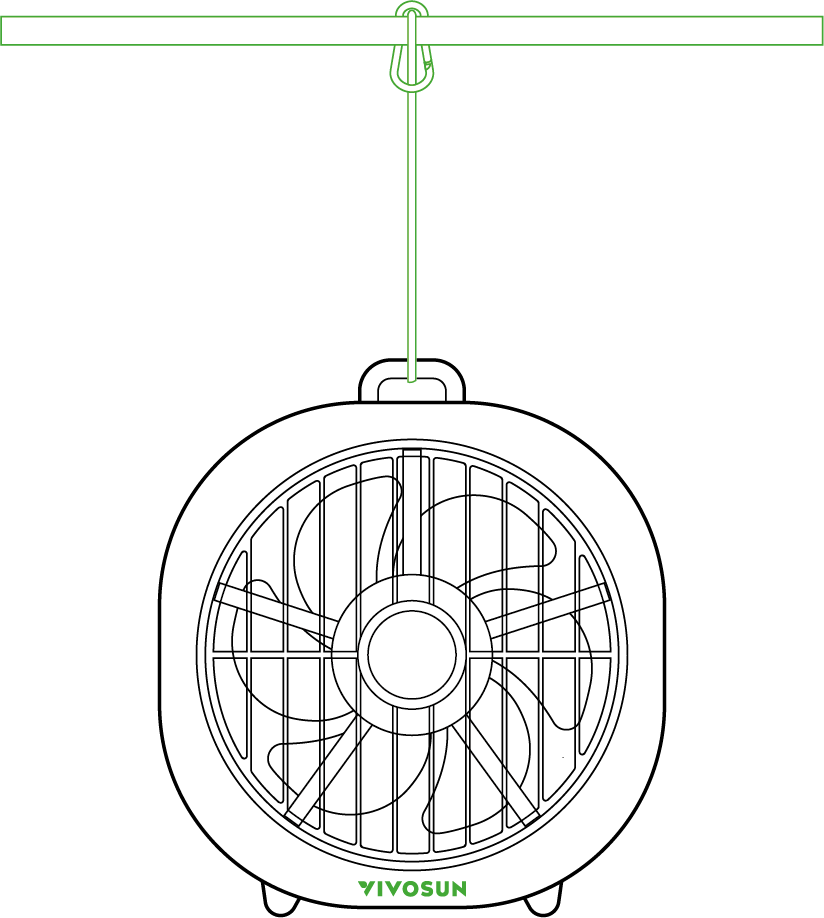

3.Hang

Hang to the desired location using the top hook. Once positioned, plug the power cord into a suitable outlet. Locate the power button on the fan and press it. Finally, adjust the wind speed using the power button.

da1563d1af92c3fe6bb0d8096e44d09b

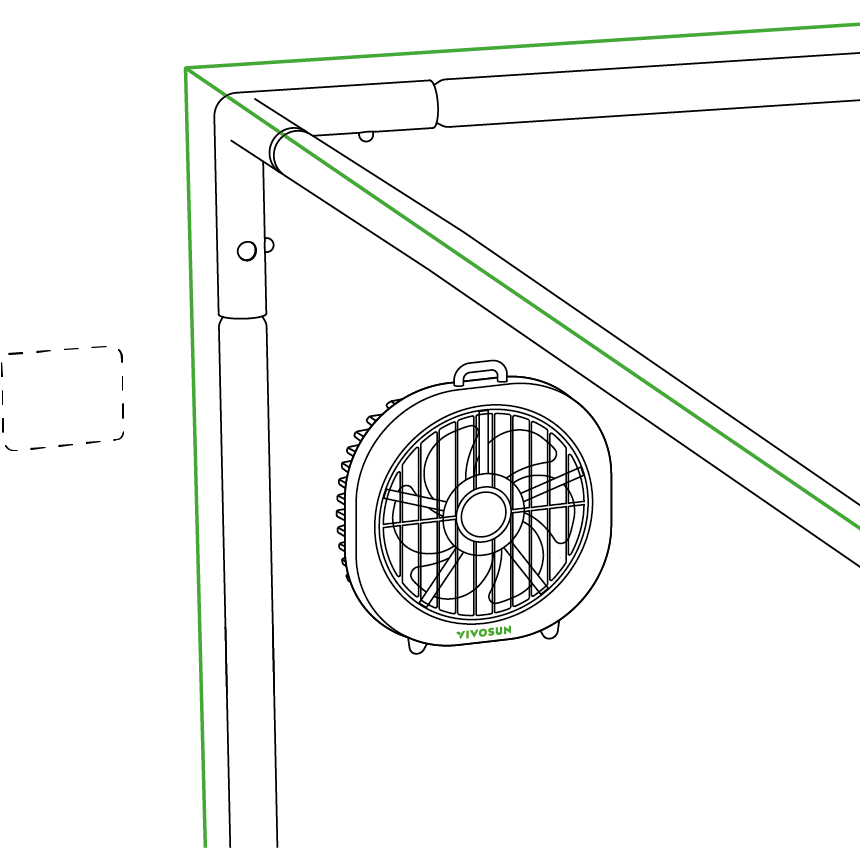

4.Magnetic

Choose the desired location inside your tent and confirm the fan can be securely clamped. Place the clamp outside the tent fabric and firmly secure the fan in position.Once positioned, plug the power cord into a suitable outlet. Locate the power button on the fan and press it. Finally, adjust the wind speed using the power button.

2de0c5e7d6e5baeab50b3fd1b710b9e2

WARRANTY INFORMATION

VIVOSUN provides a 1-year warranty against defects on all AeroWave D4 products purchased directly from us or through our authorized dealers. This policy serves as our commitment to promptly address any manufacturing defects or premature breakage that may occur during normal use of our products.

Our warranty covers the replacement or refund of purchases that exhibit material defects within 1 year of the original purchase date. In such events, customers may contact us to initiate the claim process. We will need proof of purchase to verify coverage eligibility.

This policy does not extend to protects that have been misused, abused, or purposefully damaged. It also does not cover normal wear and tear or cosmetic defects such as minor scratches.

Customers can rest assured knowing that our products undergo rigorous quality testing procedures. This 1-year warranty reflects our confidence in the durability of our products under normal use.

If any product defects are found, customers are encouraged to contact us immediately. Your satisfaction is our priority, and we are committed to resolving any issues in a professional and timely manner.

WARNING

  • Children aged 8 and above, as well as individuals with reduced physical, sensory, or mental capabilities—or those lacking experience and knowledge—may use the appliance if they have received proper supervision or instruction on its safe use and understand the associated risks.

  • Keep out of reach of children.

  • Once assembled, do not remove the guards during cleaning or use.

  • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly

  • qualified persons in order to avoid a hazard.

  • Do not put your fingers, pens, or other objects into the front cover while the fan is on.

  • Never touch the plug or outlet if your hands are wet.

  • Use only the provided cable. Avoid any third-party USB cables that are not specifically rated for this device.

64a829211468b69eebad34811370d189

DO NOT dispose of this product with regular household waste. Electrical appliances contain hazardous materials that can harm the environment if not properly discarded. Contact your local authorities for information on designated drop-o centers or electronic waste recycling programs in your area.
