AeroStream USB Humidifier Manual

MODEL NAME

  • VSE-ASU075

SAFETY INFORMATION

Please read the following information carefully before using. Failure to observe these safety instructions may result in serious injury and will release Vivosun of all liability and void all product warranties.

  1. Fill the water tank and allow the cotton core to fully saturate before using the humidifier. DO NOT operate the humidifier without water.

  2. To prevent clogging and damage, do not use oils, perfumes, distilled water, or filtered water.

  3. This humidifier features an automatic shut-off function when the water level is too low. To resume operation, simply refill the water tank to the maximum fill line and restart the humidifier.

  4. When cleaning, do not rinse the product directly under running water to prevent potential short circuiting. Use a soft, damp cloth to wipe down the surface instead.

  5. Please use a standard & certificated adapter. Otherwise it will cause a short circuit and catch fire.

  6. PIease keep the cord away from heated surfaces.

  7. PIease point the mist away from electrical outlets.

  8. If your product is damaged, cease operation immediately and contact us for service. Disassembly or modification without Vivosun’s express permission may cause damage and will void the warranty.

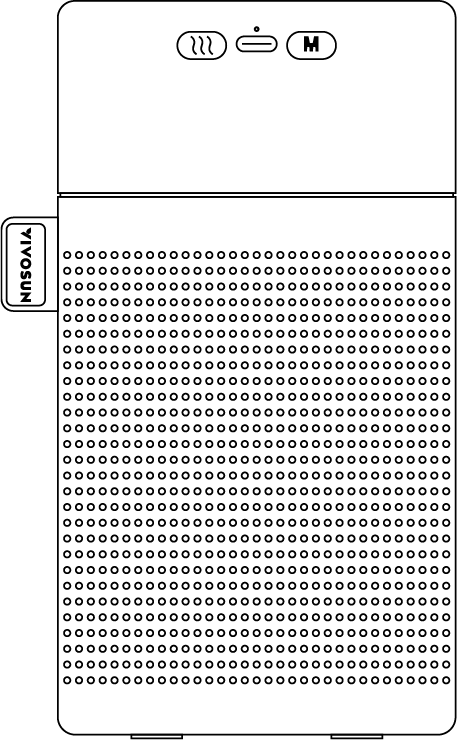

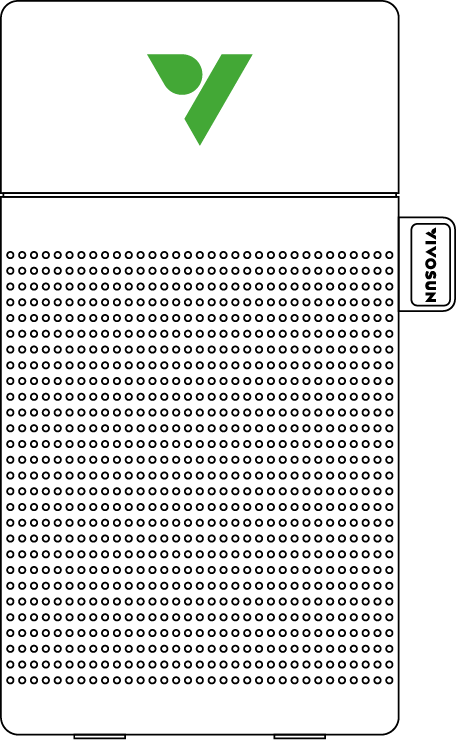

KEY FEATURES

3462f9298495c4601c2452c1dc8c262e

04d671924f0cc0e58f91d3121237d9fd

  1. Large Capacity : Equipped with a 750ML water tank, this humidifier delivers up to 28 hours of continuous misting.

  2. Two Mist Modes : Users can select between either continuous or intermittent mist mode.

  3. Automatic shut-off : Features a built-in water level sensor. If the water level drops too low, the sensor automatically triggers the auto-shutoff mechanism.

  4. Compatible with VGrow : Integrates with your Vivosun Smart Grow Box for convenient control through the Vivosun App

  5. Designed for Growers : Automatically turns on when powered and turns off when power is disconnected. Users can flexibly set humidity trigger settings

  6. Portability : Mini size and large capacity make it suitable for various usage scenarios.

PRODUCT CONTENTS

Image Name Quantity

5f4b7c5abd96908b3c25b838fe638230

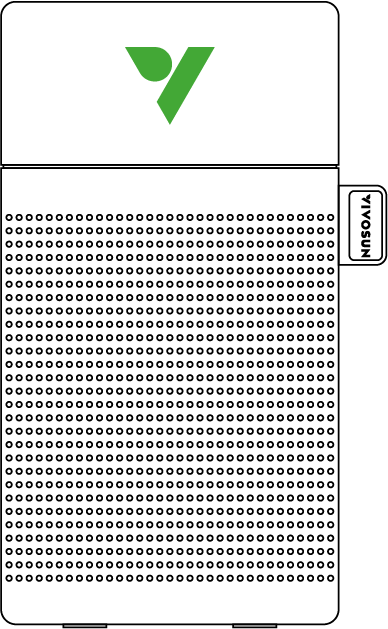

Humidifier

1PC

b15b1810424a602a3aeb22f55b5df70e

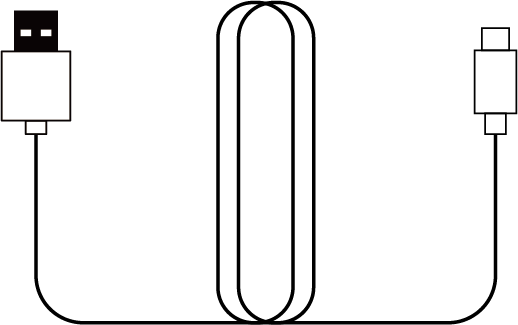

USB-Type C Cable

1PC

9cb4dd64c3b29f94590dc1f137caea78

Replaceable Cotton Wick

1PC

2f7c1f08255f1c3cb54970188f274ab9

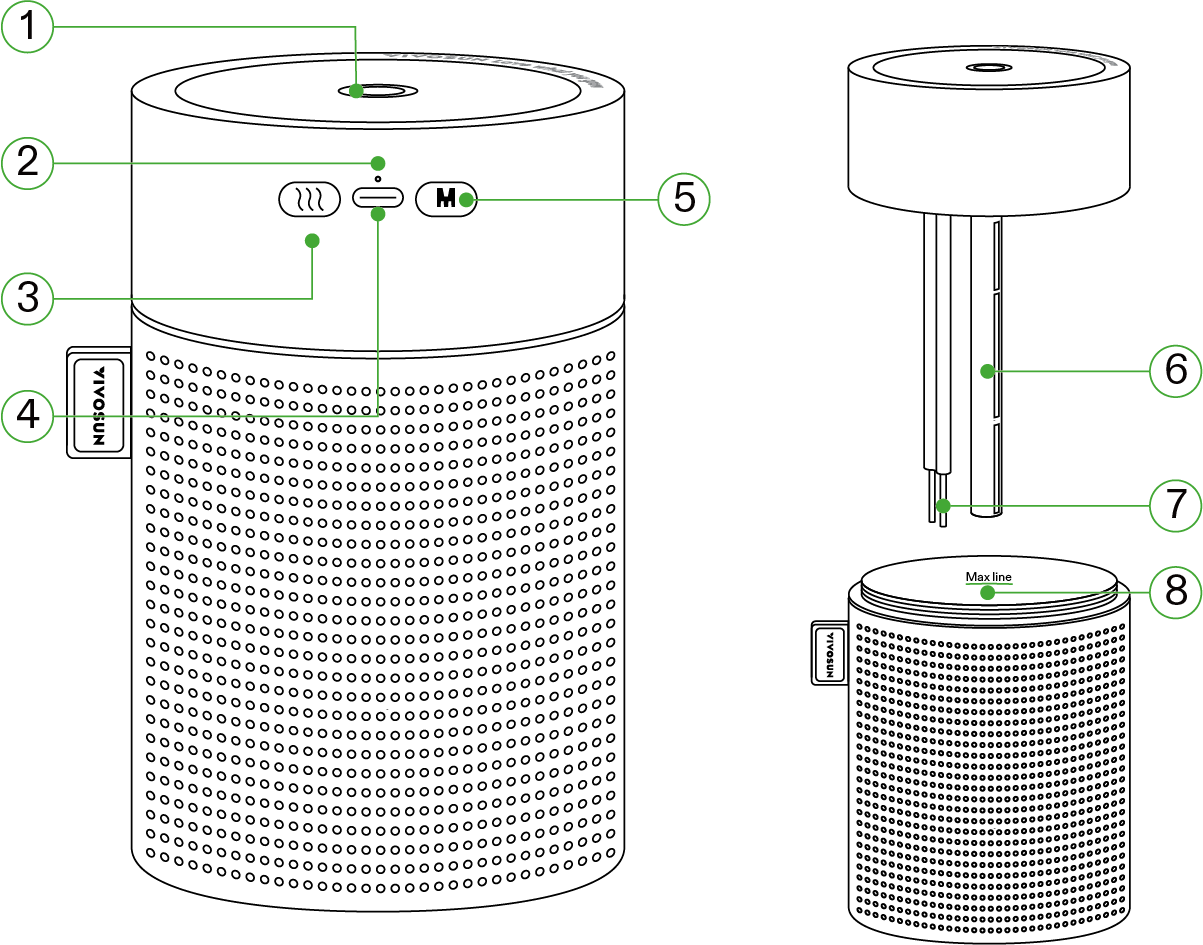

Mist Outlet

Power Button

Indicator Light

Cotton Wick

Spray Button

Probe

Type-C

Maximum Water Line

SPECIFICATIONS

Dimensions

3.8*3.8*7.0 inches

Tank Capacity

750mL

Spray Output

30-50mL/Hour

Input Voltage

DC 5V

Working Power

1.5W±0.3W

Spray Modes

Continuous & Intermittent

Operating Time

18h for Continuous Spray & 28h for Intermittent Spray

Noise Level

<28dB(A)

Cable Length

1.5m

OPERATION

Spray Button : A single press of the spray button while the humidifier is operating allows you to switch between continuous and intermittent mist modes. Memory function remembers your last used mist mode and automatically resumes it upon power-up.

Power Button : Press and hold the power button for 3 seconds when the humidifier is plugged in to turn it on or off.

Indicator Light : When you turn on the humidifier, the indicator light will light up for 3 seconds to show it’s operating properly. Hold the power button for 3 seconds to turn off the humidifier. The indicator light will blink 3 times quickly to signal it’s shutting down.

Water Level Sensor : Features an automatic shut-off mechanism that activates when the water level in the tank drops below the minimum level indicated by the water level sensor.

INSTALLATION

STEP 1

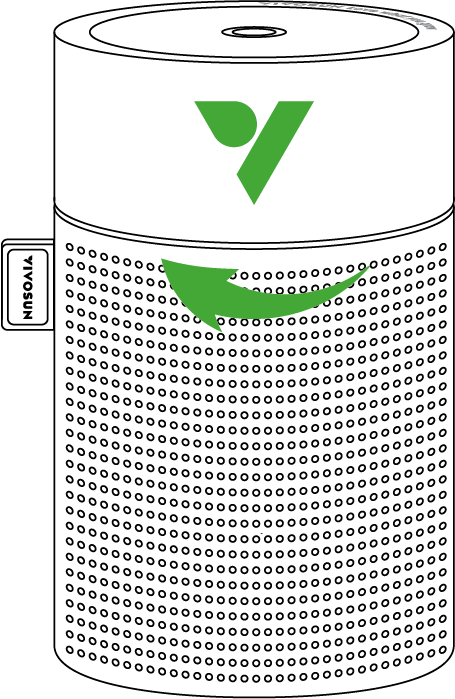

Loosen the top cover by rotating it counterclockwise .

d544e7e547ce7b58b9e44330d2028d34

STEP 2

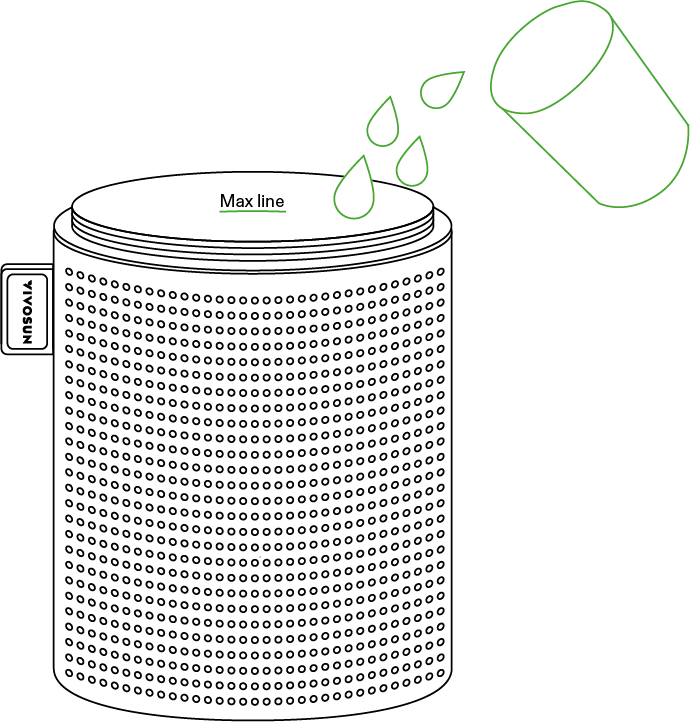

Fill the water tank up to the maximum water level mark.

5250b21dcebd94ea0ec35b151d749258

STEP 3

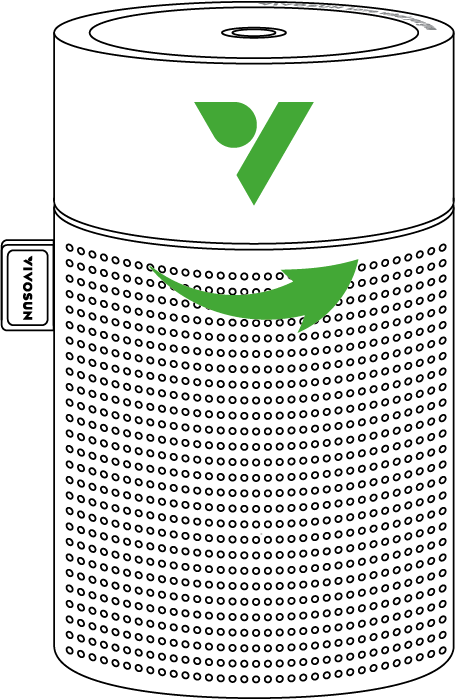

Tighten the top cover by rotating it clockwise.

a1c8924fc6745ab5da58d4e49b64d6ef

STEP 4

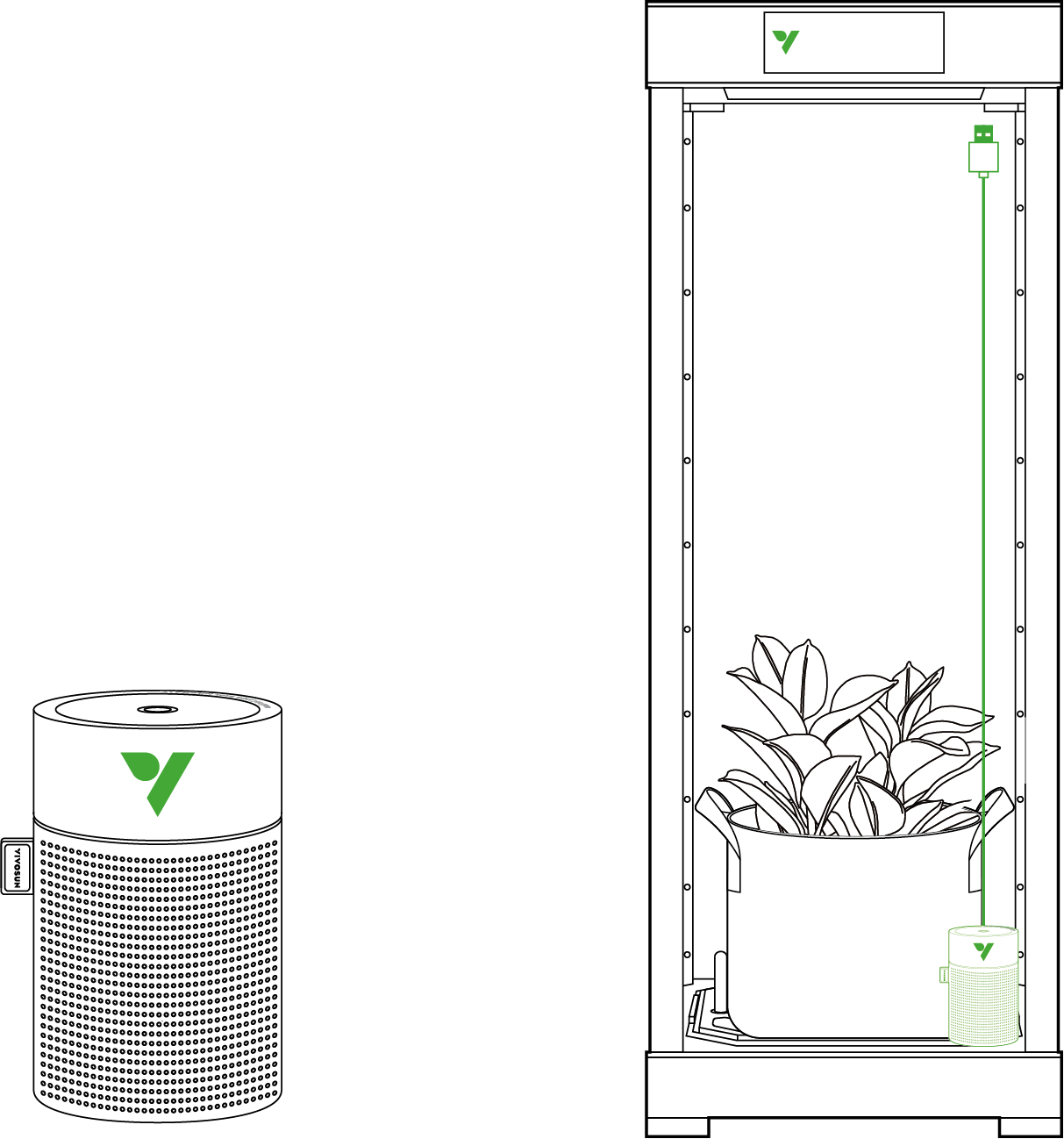

Once you plug the USB-Type C cord into the humidifier’s port, it should automatically turn on and start working. If not, press the Power Button for 3 seconds to power it on manually.

Notice : Ensure that the cotton wick is fully saturated with water before use.

b8524a64e7ee30a734d0387bd2cbdde8

MAINTENANCE

COTTON WICK REPLACEMENT

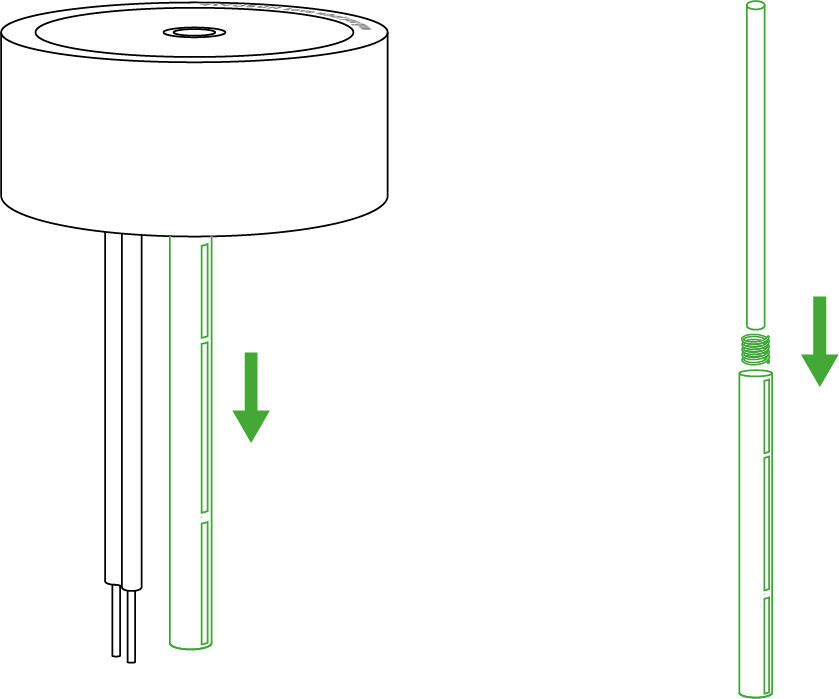

Remove the wick tube and replace the wick (be mindful of the spring at the bottom).

The lifespan of your cotton wick depends on how often you use your humidifier. If it becomes discolored or yellowed, then it needs to be replaced. It’s recommended to replace it at the end of each season.

9586c6e58854a118168c40f425089823

WARRANTY INFORMATION

Vivosun provides a 1-year warranty against defects on all AeroStream USB Humidifier purchased directly from us or through our authorized dealers. This policy serves as our commitment to promptly address any manufacturing defects or premature breakage that may occur during normal use of our products.

Our warranty covers the replacement or refund of purchases that exhibit material defects within 1 year of the original purchase date. In such events, customers may contact us to initiate the claim process. We will need proof of purchase to verify coverage eligibility.

This policy does not extend to protects that have been misused, abused, or purposefully damaged. It also does not cover normal wear and tear or cosmetic defects such as minor scratches.

Customers can rest assured knowing that our products undergo rigorous quality testing procedures. This 1-year warranty reflects our confidence in the durability of our products under normal use.

If any product defects are found, customers are encouraged to contact us immediately. Your satisfaction is our priority, and we are committed to resolving any issues in a professional and timely manner.
