VSI-FFSW6-4
Durable Material : High quality glass fiber reinforced polypropylene provides high strength and long lifespan.

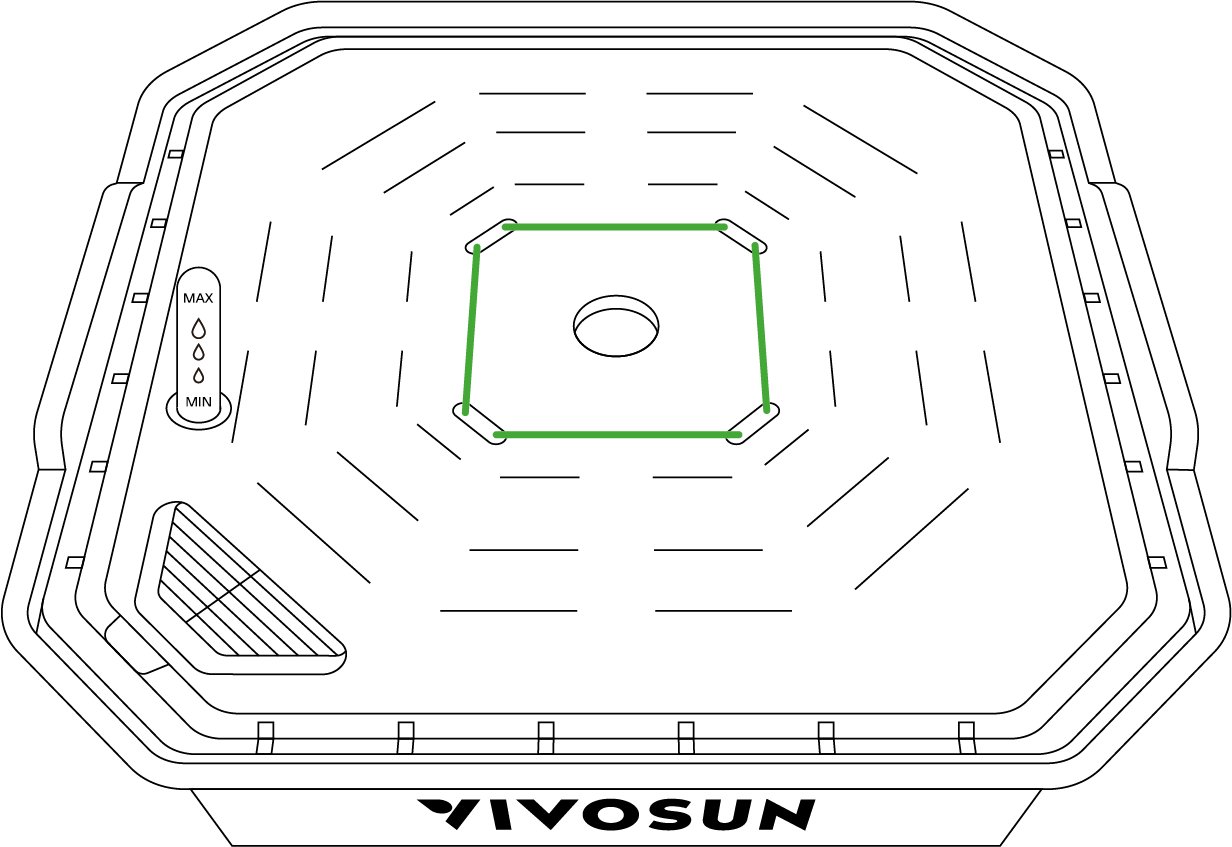

Maintenance Window : Special gridded maintenance window can be closed and opened to add water or test pH/EC value.
1.3 Gal Large Tank Capacity : 1.3 Gal / 6 L water resevoir automatically supplies your plants with water and nutrients, ensuring consistent hydration and nourishment.
Prevents Buildup : The elevated plate raises your grow bag to prevent buildup and drains excess water into the basin below.
Upgradable to Drip Irrigation : Designed to be compatible with drip irrigation kits, providing the flexibility to upgrade at your convenience.
Active Monitoring : Included reservoir meter displays the current water level to avoid under or overwatering.
Image | Name | Quantity |
---|---|---|
Drain Plate |
4 PCS |
|
![]() |
Water Basin |
4 PCS |
![]() |
Water Meter |
4 PCS |
![]() |
Support Column |
4 PCS |

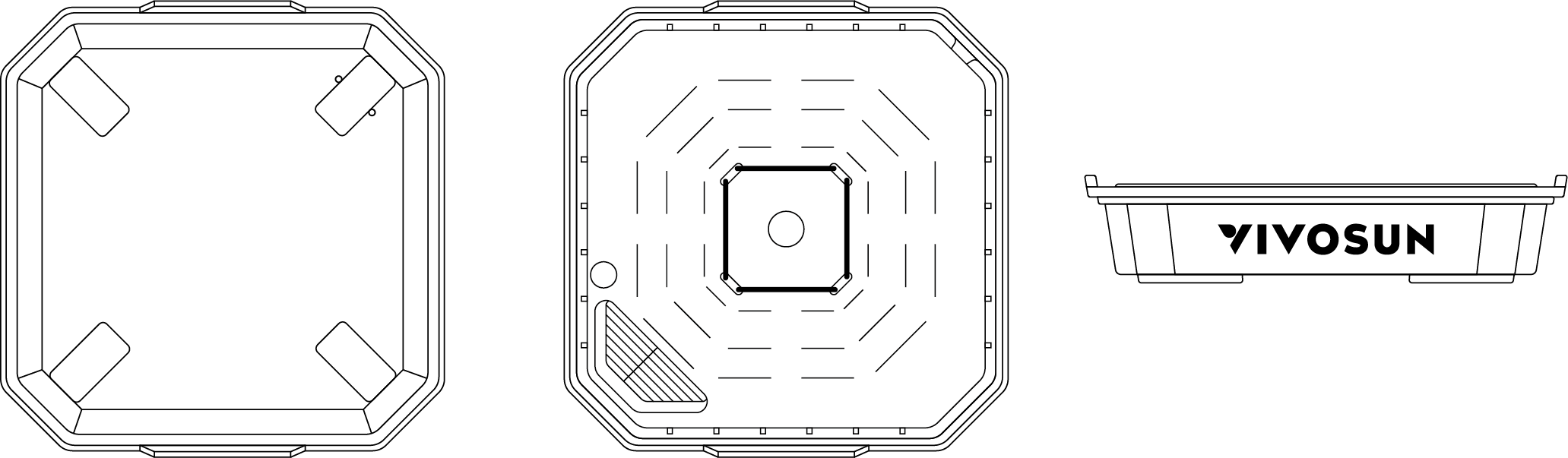

Dimensions |
14.7*14.7*3.3 inches / 37.3*37.3*8.3 cm |
Tank Capacity |
1.3 Gal / 6 L |
Fitment |
MAX 5 Gallon Grow Bag |
Weight Capacity |
60 KG / 130 Lbs |

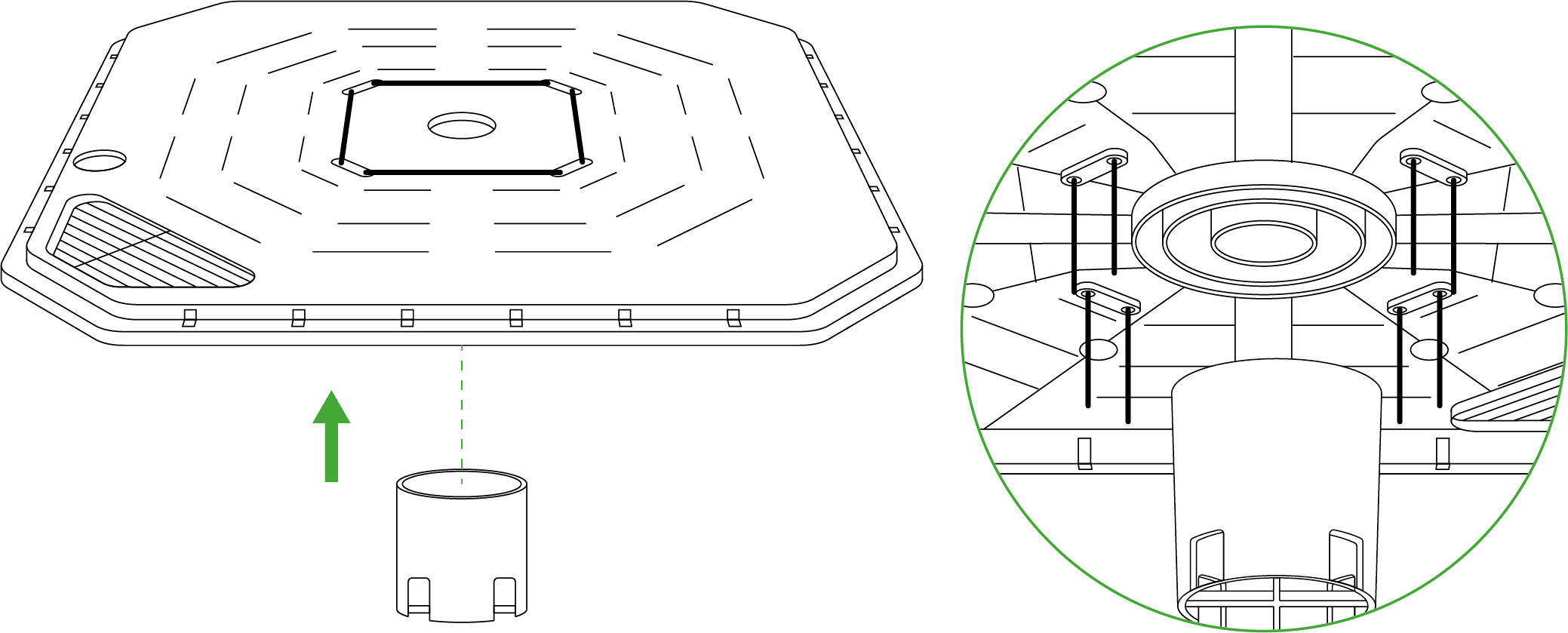

Insert the support column into the drain plate.

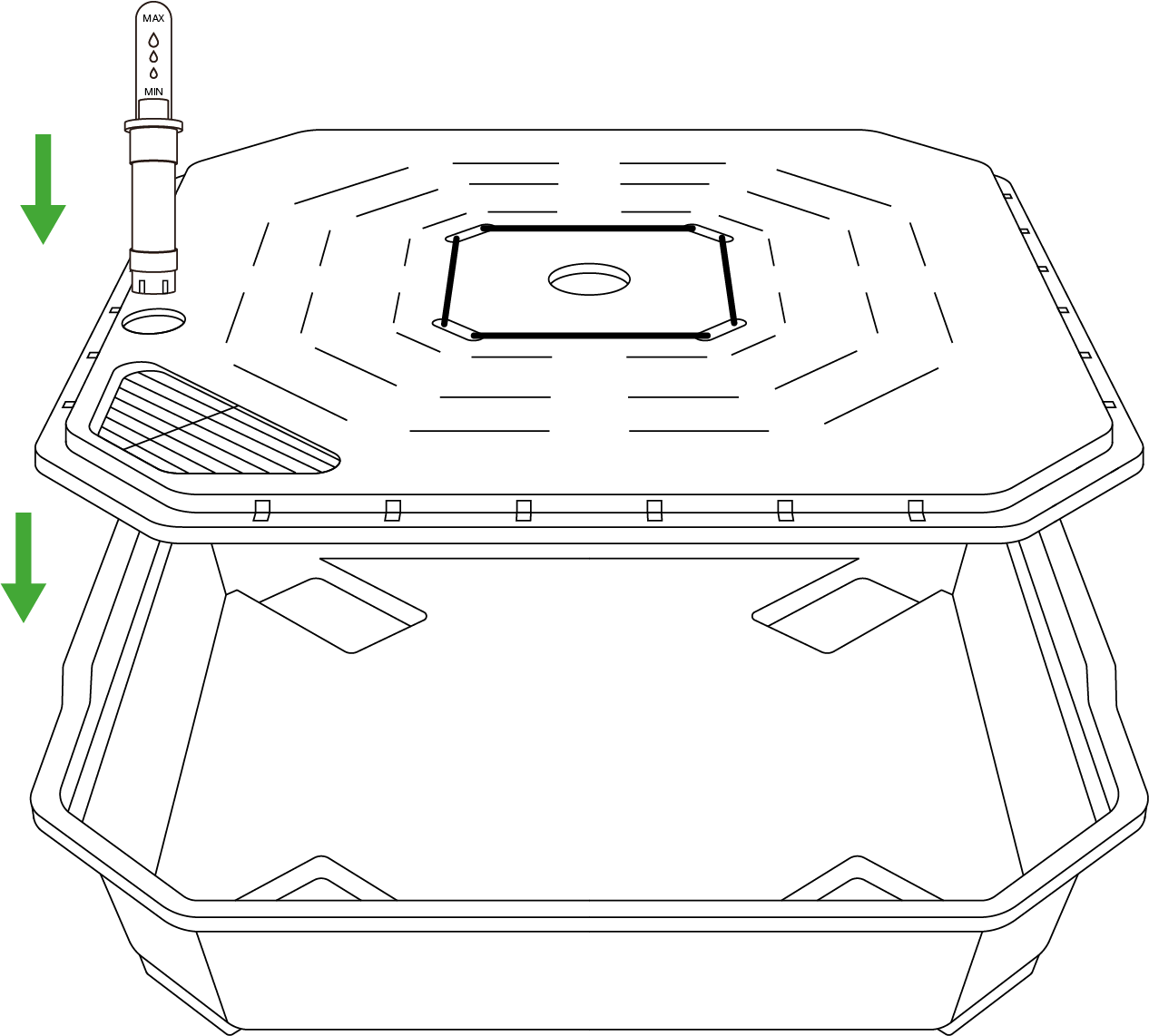

Place the water meter into the designated opening, then place the drain plate over the water basin.

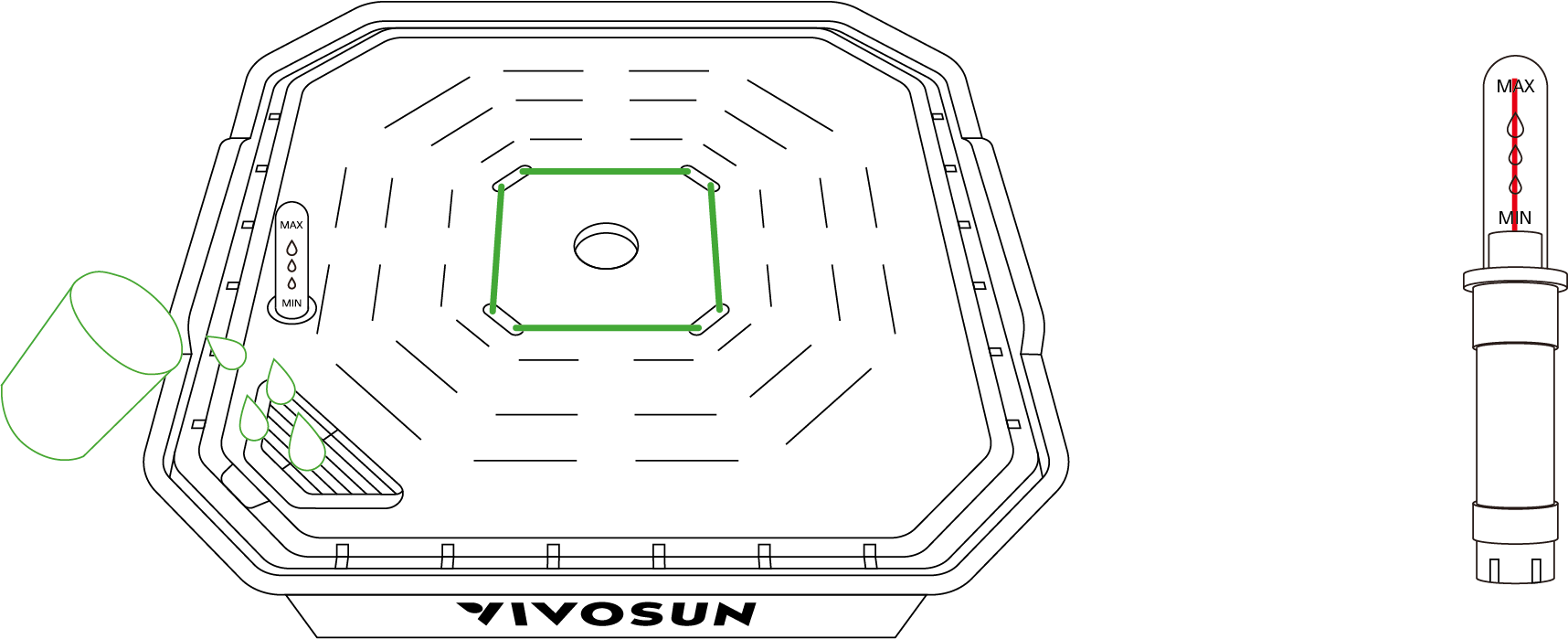

Add water or nutrient solution via the maintenance window. Once the float switch reaches its maximum height, it signals that the reservoir is full.
Filling : To add water and water-soluble nutrients to your resevoir, directly pour the solution into the basin through the maintenace window.

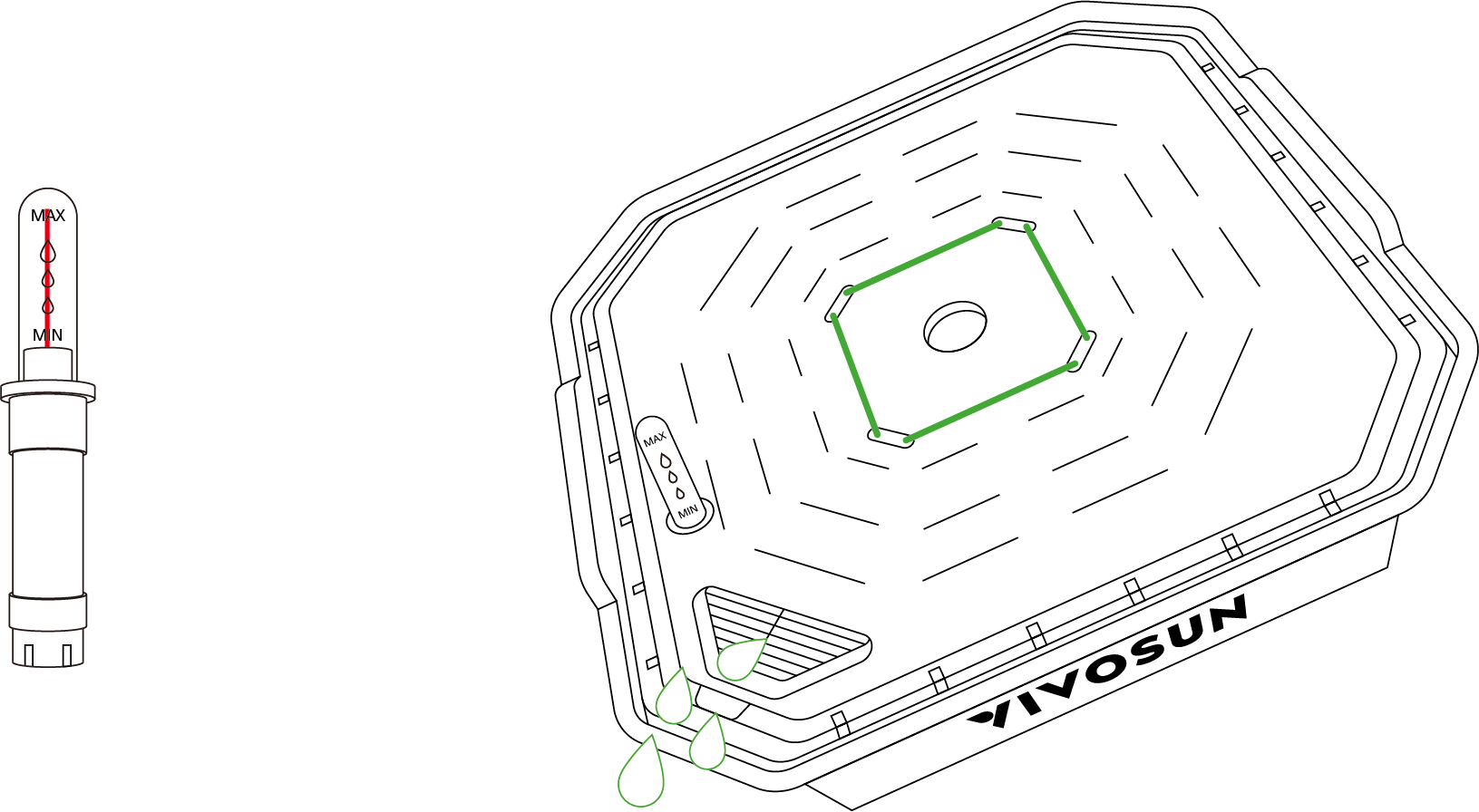

Monitoring : The included water meter indicates when the reservoir is empty.Refill the reservoir whenever the meter reaches this level.
Maintenance : For optimal performance, it’s recommended to clean and refill the reservoir every two weeks. This will also help prevent any unwanted build-up within the reservoir.

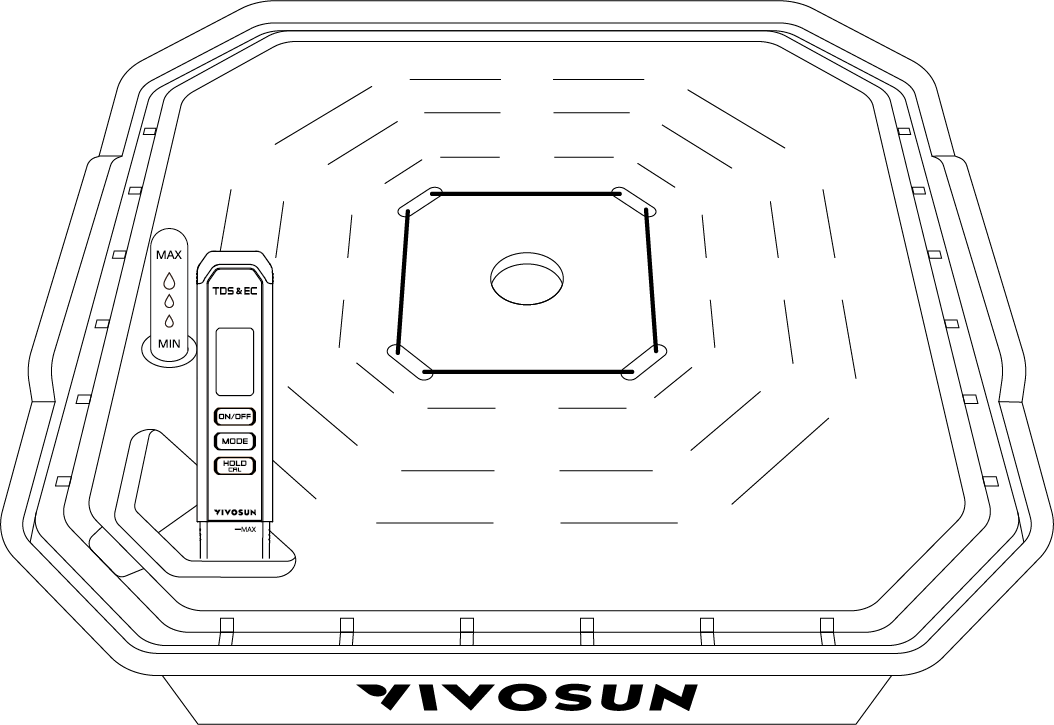

Remove the maintenance window and dip the pH/EC meter inside

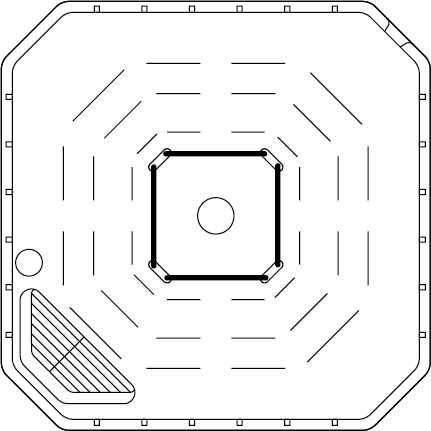

The self-watering pot features drainage holes, allowing excess water to efficiently drain from both the bottom and sides. This design helps prevent waterlogging and ensures a cleaner growing environment by eliminating pooling water.
Drainage: If the water meter shows a full reservoir and you observe excess water draining from the pot, pour out this excess water through the maintenance window.
Maintenance: To prevent mineral build-up and potential pests, it’s recommended to clean the reservoir every two weeks.

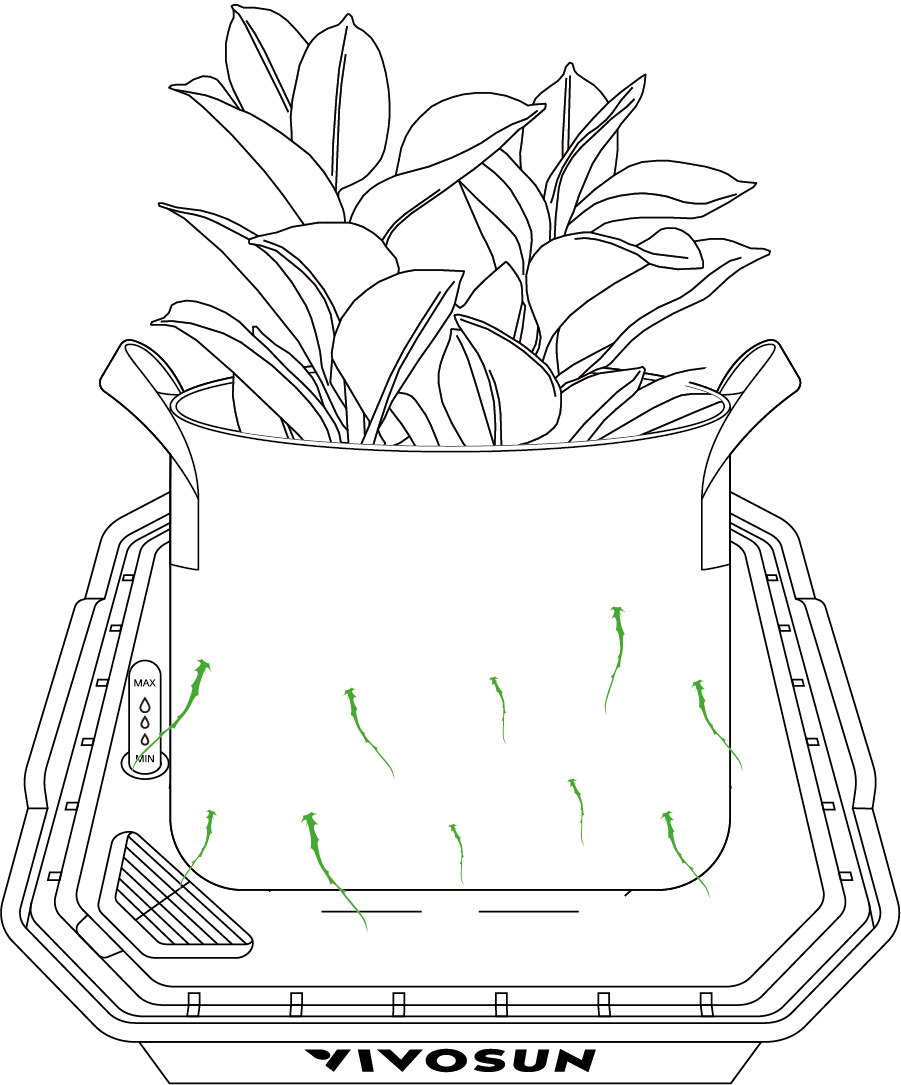

For the self-watering system to function effectively, your plant’s root system needs to establish itself throughout the grow bag’s volume. To verify this, you can gently examine the bottom of the pot to see if dried roots are visible, indicating they have grown through the fabric.
It is recommended to replace the wick lines after each growing season.

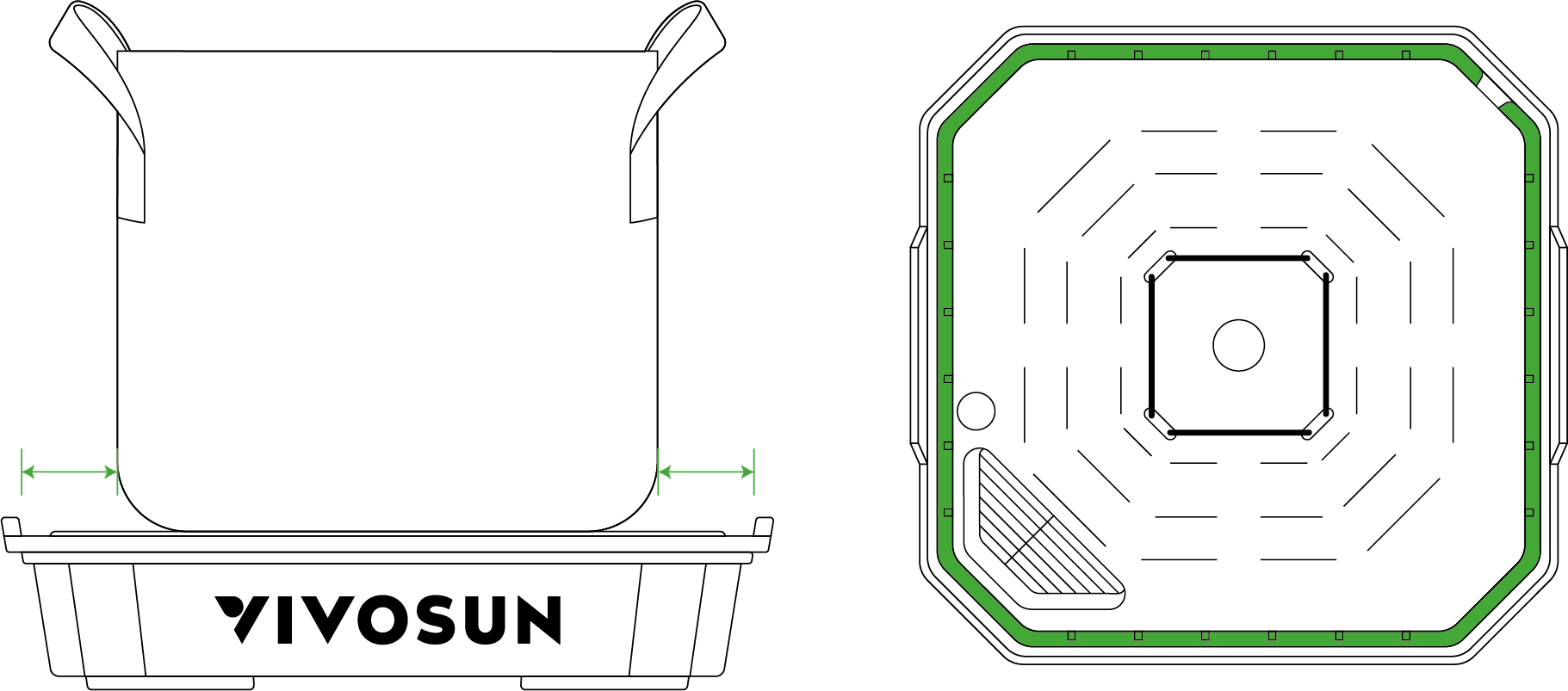

Placement : Gently place your grow bag on top of the designated drain plate.
Lifting for Adjustments : When making adjustments to the water reservoir or plant, carefully lift the grow bag off the drain plate.
Avoiding Disruption : Avoid twisting or rotating the grow bag while it rests on the base. This movement can pull the wick lines away from the water source, hindering the self-watering function.

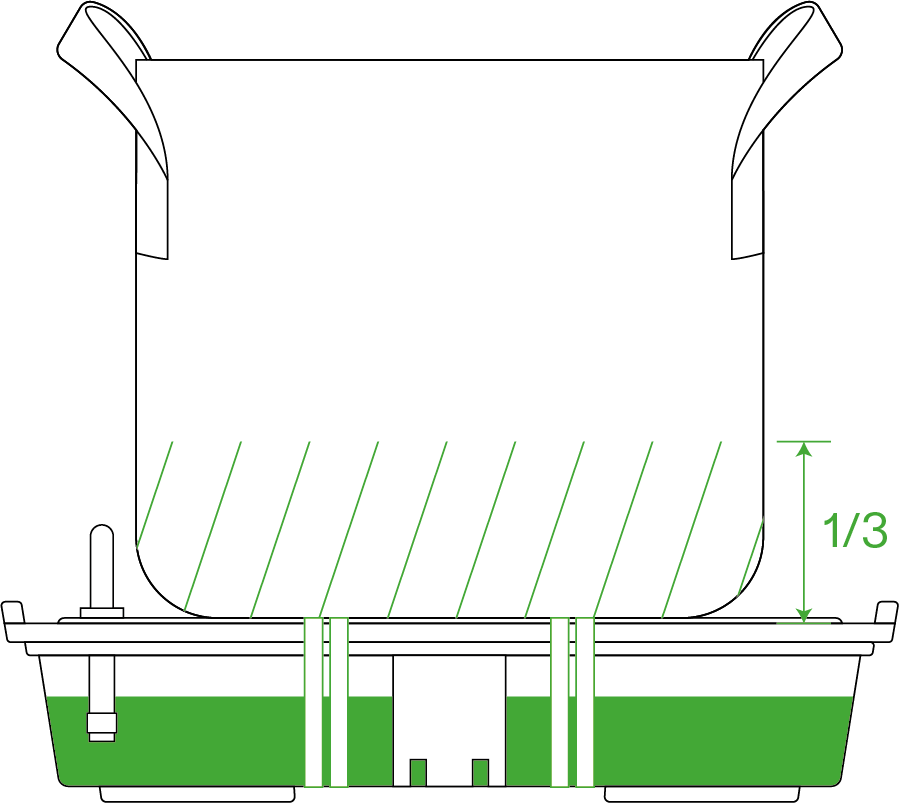

Water and Nutrient Delivery : The wick lines efficiently deliver a continuous flow of water and water-soluble fertilizer to the lower third of your grow bag. This creates a consistent moisture zone while allowing for a small air pocket for optimal root health.
Potting Mix Recommendation : To ensure the most effective water and nutrient delivery to your plant roots, we recommend using potting mixes that contain peat moss and/or coco coir. These materials promote efficient absorption and upward movement of water through the wick lines.
Vivosun provides a 2-year warranty against defects on all FlexFeed Self-Watering Kits purchased directly from us or through our authorized dealers. This policy serves as our commitment to promptly address any manufacturing defects or premature breakage that may occur during normal use of our products.
Our warranty covers the replacement or refund of purchases that exhibit material defects within 2 years of the original purchase date. In such events, customers may contact us to initiate the claim process. We will need proof of purchase to verify coverage eligibility.
This policy does not extend to products that have been misused, abused, or purposefully damaged. It also does not cover normal wear and tear or cosmetic defects such as minor scratches.
Customers can rest assured knowing that our products undergo rigorous quality testing procedures. This 2-year warranty reflects our confidence in the durability of our products under normal use.
If any product defects are found, customers are encouraged to contact us immediately. Your satisfaction is our priority, and we are committed to resolving any issues in a professional and timely manner.
Please read the following information carefully before using. Failure to observe these safety instructions may result in serious injury and will release Vivosun of all liability and void all product warranties.
Do not stand on the self-watering pot lid.
Perform regular maintenance to prevent mineral buildup or potential pest infestation.
If your product is damaged, stop using immediately and contact us for support. Disassembly or modification without Vivosun’s express permission will void the product warranty .
