Quick Answer
Short answer: A standard 1020 seedling tray fits a 10" × 20.75" heat mat. Warm-season crops such as tomatoes and peppers generally germinate best when the growing medium is warm, roughly 60-85°F. For accurate control, use a heat mat with a compatible thermostat and place the probe in the growing medium. Most seedlings no longer need bottom heat once they have emerged.
-
Size: match the mat to your tray footprint; 10" × 20.75" for one 1020 tray, 20" × 20.75" for two trays side by side, 48" × 20.75" for a long bench.
-
Temperature: check each crop's range; cool-season crops such as lettuce can germinate worse when it is too warm.
-
Control: a thermostat keeps the medium at a set temperature instead of letting it drift with the room.
-
Timing: reduce or remove heat after most seeds have sprouted.
Do You Need a Seedling Heat Mat?
You need one if your seed-starting area is cooler than your crop's germination range, which is common in winter or in an unheated room. A heat mat warms the growing medium from below, so seeds sit in the temperature they prefer even when the room is cold.
A heat mat helps most with:
-
Warm-season crops: tomatoes, peppers, eggplant, basil, cucumbers, squash and melons
-
Slow or fussy seeds that need steady warmth to sprout evenly
-
Rooting cuttings that benefit from warm bottom heat, under a humidity dome
You can usually skip it when:
-
Your room already holds the right temperature for the crop
-
You are starting cool-season crops such as lettuce, spinach or peas, which often prefer cooler soil
-
The seeds are already up and growing; most seedlings do not need bottom heat after emergence
A heat mat warms the tray, not the room. You still need adequate light, airflow and a suitable room temperature. It supports germination but does not replace good seed, correct moisture or proper planting depth.
Germination Temperature by Crop
Most warm-season crops germinate best with a warm growing medium, while cool-season crops can stall when it is too warm. Use the soil temperature, not the air temperature, and confirm against your seed packet.
| Crop | Optimum range (ºF) | Heat mat? | Notes |
|---|---|---|---|
| Tomato | 65-85 | Helpful | / |
| Pepper | 65-75 | Very helpful | Slowest of the common crops to sprout |
| Eggplant | 75-85 | Very helpful | / |
| Beets | 65-85 | Helpful | / |
| Cucumber / squash | 65-95 | Optional | Remove heat soon after emergence |
| Lettuce | 60-75 | Optional | Warm soil can inhibit germination |
Source: UC Master Gardener Program Update 2017/08.
What Size Heat Mat Do I Need for a 1020 Tray?
A 10" × 20.75" heat mat matches one standard 1020 seedling tray; go wider or longer only if your layout needs it. The mat should be at least as large as the tray’s base so the whole tray warms evenly.
| Mat size (in) | Temp. Setting Range (°F) | Wattage | Best for | Fits |
|---|---|---|---|---|
| 10" × 20.75" | 32-122°F | 20 W | One standard 1020 tray, small batches | Perfect for seedling starting and cutting propagation |
| 20" × 20.75" | 32-122°F | 40 W | Two 1020 trays side by side, wider trays | Used for indoor gardening, terrarium warming,plant sprouting, home brewing |
| 48" × 20.75" | 32-122°F | 105 W | Long propagation bench, several trays in a row | Used for indoor gardening, terrarium warming,plant sprouting, home brewing |
Tips for choosing:
-
Measure the tray's outer dimensions, not the cell count.
-
For several shelves, add up the total footprint and check the thermostat's maximum load before buying a multi-pack.
-
Confirm availability and sizes on the VIVOSUN heat mat collection.
Do You Need a Thermostat for a Seedling Heat Mat?
You need a thermostat if your crop has a narrow germination range or your room temperature swings. A bare heat mat keeps heating until you unplug it, while a thermostat reads a probe in the medium and switches the mat on and off to hold your target.
| Setup | Good for | Watch out for |
|---|---|---|
| Heat mat only | Forgiving crops, stable rooms, short germination windows | Medium can run warmer than intended, especially with a humidity dome |
| Mat + thermostat (combo set) | Peppers, tomatoes, eggplant and anything temperature-sensitive | Confirm the probe length and cord fit your setup |
| Several mats, one thermostat | Multi-tray or multi-shelf setups | Total wattage must stay within the thermostat's rated load |
Compatibility checklist before you buy:
-
The thermostat's rated load covers the combined wattage of all connected mats.
-
Voltage and plug type match your outlet.
-
The probe reaches the growing medium, not just the tray edge.
Are Seedling Heat Mats Safe and Waterproof?
Seedling heat mats are designed for damp seed-starting conditions, but "water-resistant" is not "submersible", so follow the rated use and keep electrical connections dry.
| Spec | VIVOSUN heat mat |
|---|---|
| Safety certification | CE, MET-Certified |
| Water resistance rating | IP67-Rated Waterproof |
| Cord and plug | 1.8 m, 120 V AC |
| Surface temperature behavior | 68-77°F(environment) to 104°F |
Safe-use rules:
-
Place the mat on a stable, level surface and put the tray on top, not the mat on the tray.
-
Do not stack mats, cover them, or bury them in insulation.
-
Keep the plug, thermostat and any splices above water level; wipe spills right away.
-
Plug into a grounded outlet; avoid chaining extension cords.
-
Inspect the mat and cord before each season and stop using any mat that is cut, punctured or discolored.
Follow the instructions that come with your specific mat for loading, cleaning and storage.
How to Use a Seedling Heat Mat, Step by Step
Set the mat up, hold the medium at the crop's range, and take the heat away once seedlings emerge.
-
Place the mat flat on a stable, dry surface; add a foam board underneath if the surface is cold metal or concrete.
-
Put your filled, moistened tray on the mat.
-
Insert the thermostat probe into the growing medium at seed depth, not into the air or taped to the tray.
-
Set the target temperature from your crop's range and let it settle for a few hours before sowing, if you can.
-
Cover with a humidity dome if desired, and vent it daily to avoid overheating and mold.
-
Check moisture daily; warm medium dries faster.
-
When most seeds have emerged, lower the temperature or remove the mat, and move seedlings under lights.
Common mistakes
-
Leaving heat on after emergence, which can make seedlings leggy
-
Measuring air temperature instead of medium temperature
-
Using a dome without venting
-
Overloading a thermostat with too many mats
-
Putting heat-sensitive or cool-season seeds on the mat

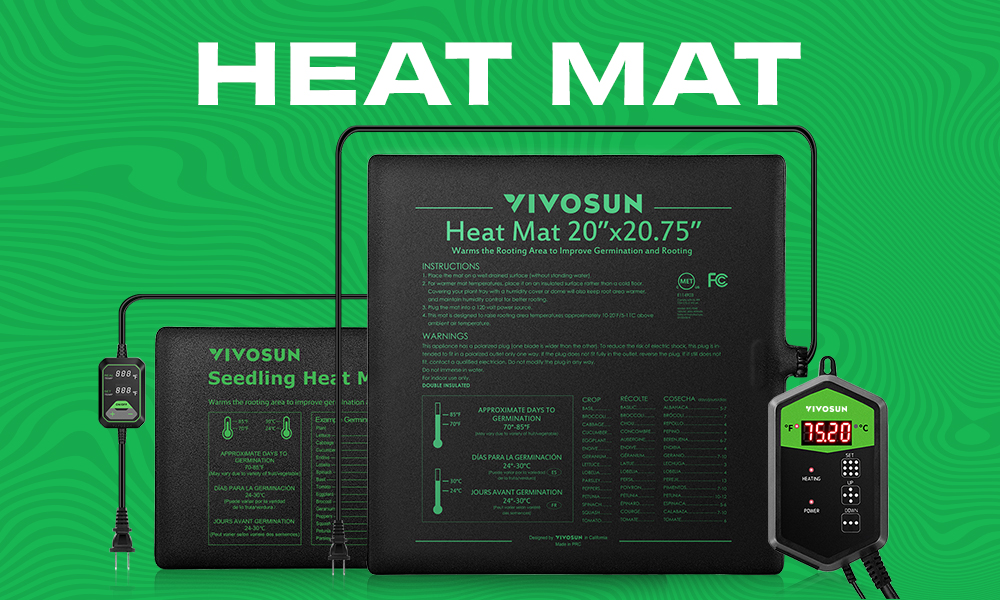

VIVOSUN Heat Mat Options at a Glance
VIVOSUN offers standalone mats, thermostats and combo sets in several sizes; check the heat mat collection for current availability and pricing.
| Item | Size | Design | Wattage | Thermostat | Best for | Pack Option |
|---|---|---|---|---|---|---|
| Single mat | 10" × 20.75" |  | 20W | Not Included | One 1020 tray | 1, 2, 6 packs |
| Mat with plug-in thermostat | 10" × 20.75" |  | 20W | Dual digital thermostat (plug-in) | One 1020 tray for temperature-sensitive crops | 1, 2, 3 packs |
| Mat + thermostat combo | 10" × 20.75" |  | 20W (Mat) | Digital thermostat (separate) | One 1020 tray for temperature-sensitive crops | 1, 2 packs |
| Wide mat | 20" × 20.75" |  | 40W | Not included | Two trays side by side | 1, 2 packs |
| Wide mat with plug-in thermostat | 20" × 20.75" |  | 40W | Dual digital thermostat (plug-in) | Two trays side by side for temperature-sensitive crops | 1, 2 packs |
| Wide mat + thermostat combo | 20" × 20.75" |  | 40W (Mat) | Digital thermostat (separate) | Two trays side by side for temperature-sensitive crops | 1, 2 packs |
| Long mat | 48" × 20.75" |  | 105W | Not included | Long bench | 1, 2 packs |
| Long mat with plug-in thermostat | 48" × 20.75" |  | 105W | Dual digital thermostat (plug-in) | Long bench for temperature-sensitive crops | 1, 2 packs |
| Long mat + thermostat combo | 48" × 20.75" |  | 105W (Mat) | Digital thermostat (separate) | Long bench for temperature-sensitive crops | 1, 2 packs |
If you already have a heating mat, you can also purchase the VIVOSUN thermostat separately — it's compatible with Vivosun heating mats and is available on the seedling trays listing, the kit page, and the dedicated thermostat page.
Frequently Asked Questions
What temperature should a seedling heat mat be set to?
Set it to the germination range of your crop, measured in the growing medium. Many warm-season crops such as tomatoes and peppers do well at 85°F, while cool-season crops such as lettuce prefer cooler medium. Use a thermostat with a probe in the medium to hold the target, and check your seed packet for the exact range.
What size heat mat do I need for a 1020 tray?
A 10" × 20.75" heat mat fits one standard 1020 tray. For two trays side by side, a 20" × 20.75" mat is the closer match, and a 48" × 20.75" mat suits a long propagation bench. Measure your tray's outer dimensions before ordering so the mat covers the full footprint.
Do I need a thermostat for a heat mat?
You need one for temperature-sensitive crops or rooms that swing in temperature, and it is optional for forgiving crops in a stable room. Without a thermostat the mat keeps heating until unplugged, so the medium can run warmer than your crop wants. Check that the thermostat's rated load covers the total wattage of your mats.
How long should seedlings stay on a heat mat?
Keep the mat on until most seeds have germinated, then lower or remove the heat. Typical windows are 4-7 days. Leaving heat on after emergence can cause leggy, weak seedlings, so move them under grow lights and cooler conditions.
Can I use a heat mat with a humidity dome?
Yes, and it is a common setup for germination and cuttings. The dome holds in warmth and moisture, so the medium can get hotter than expected. Use a thermostat, vent the dome daily, and watch for condensation and mold.
Are heat mats waterproof?
Not all of them. Water resistance depends on the specific design, so check the product's rating and keep plugs, controllers and connections out of standing water. VIVOSUN rating: IP67-Rated Waterproof & Moisture Proof, but can't be immersed in water. Never submerge a mat unless its manual says it is rated for it.
Heat mat vs grow light: which do I need?
You usually need both, because they do different jobs. A heat mat warms the medium to trigger germination, while a grow light supplies the light seedlings need once they emerge. Heat first, light after emergence.
Can I use a seedling heat mat in winter?
Yes, winter is when it helps most. It warms the tray but not the room, so you still need a reasonable room temperature, light and airflow. Measure medium temperature with a probe rather than guessing.
